October 11, 2018 at 11:00 pm #11521
ford981micah
Participant

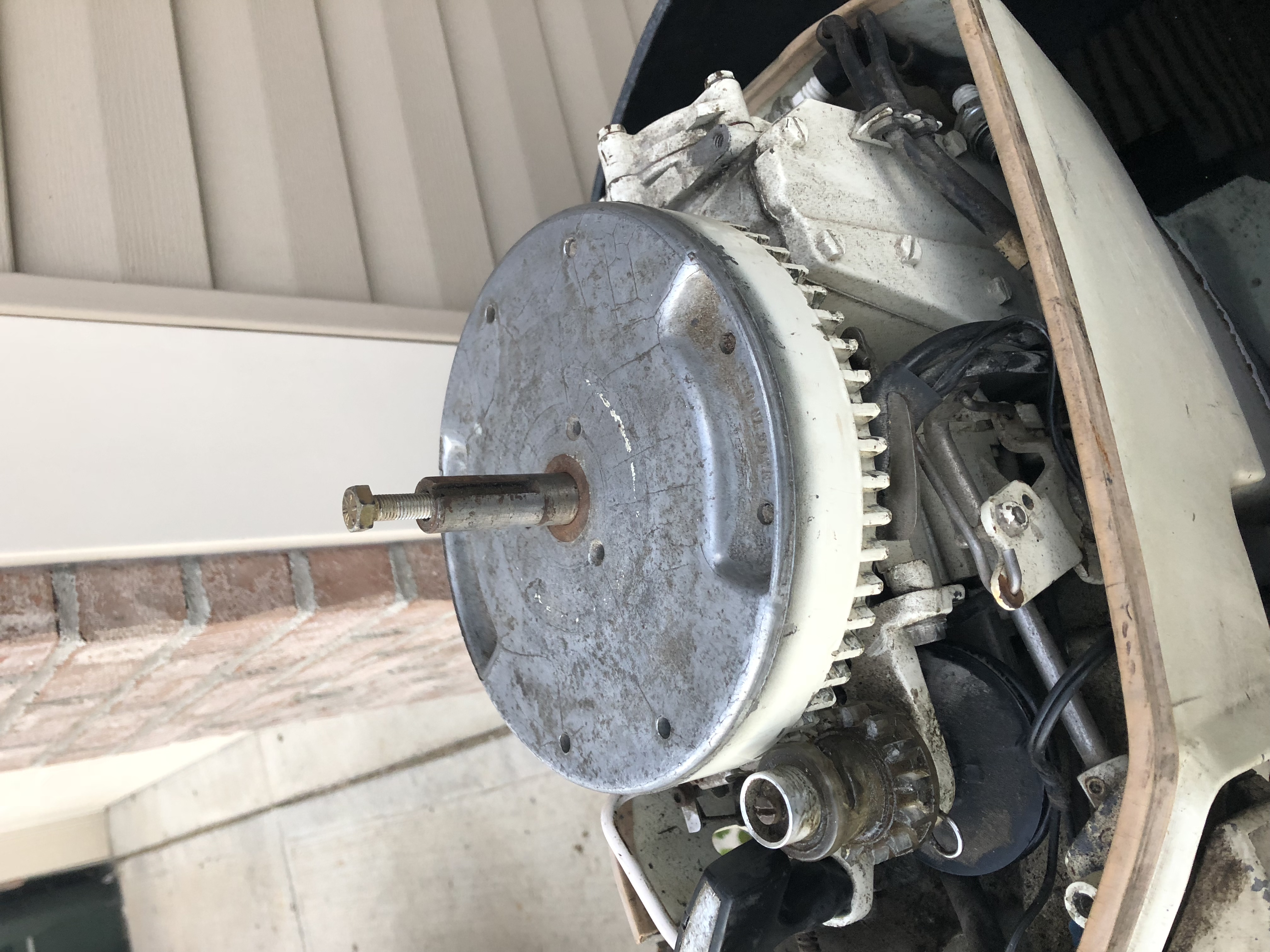

I picked this up and it is missing the electric start. I have spark and good compression. Does anyone have a parts diagram so I can see what all is missing. Probably just make it a manual start for now when I figure out how to hold the flywheel on.

Attachments:
October 12, 2018 at 12:28 am #84312
frankr
Participant
US Member

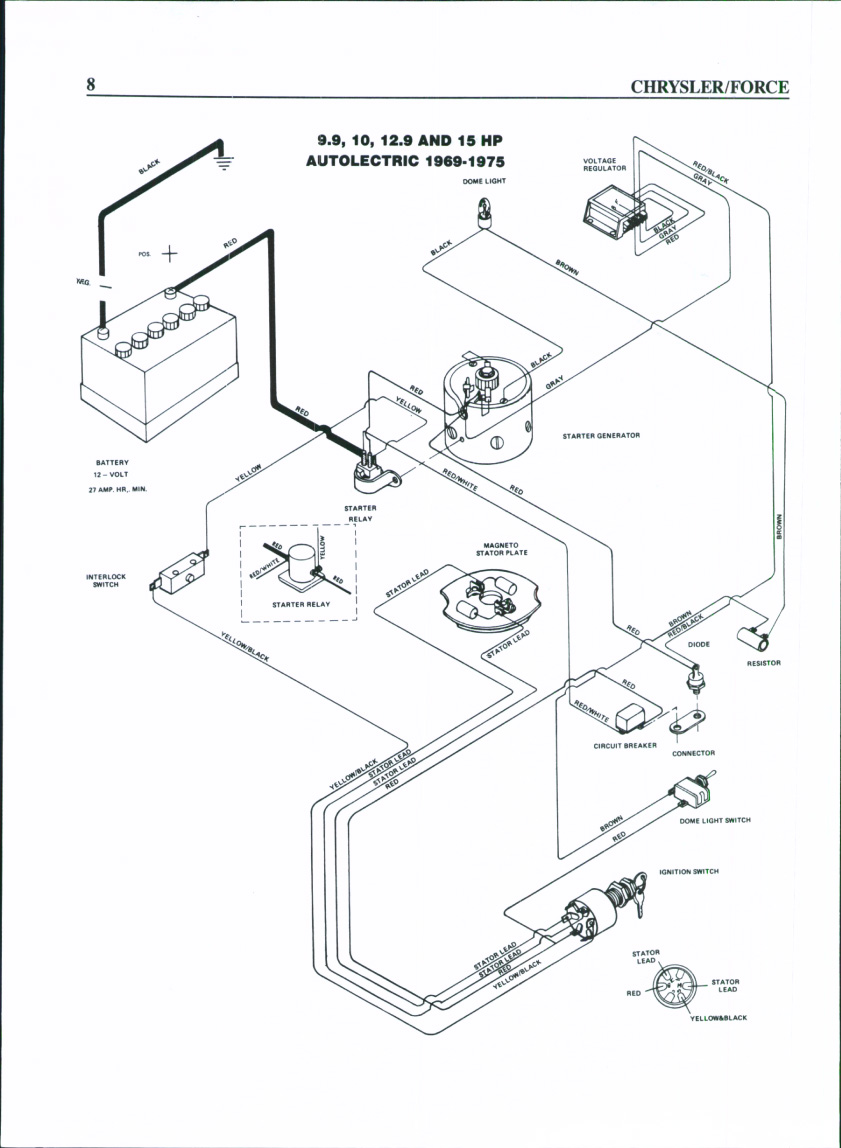

This is all I have
October 12, 2018 at 12:47 am #84313
wedgie
Participant
October 12, 2018 at 1:44 am #84316
ford981micah
Participant
Thank you. That is better than anything I have found online.
October 12, 2018 at 3:23 am #84321
amuller
Participant

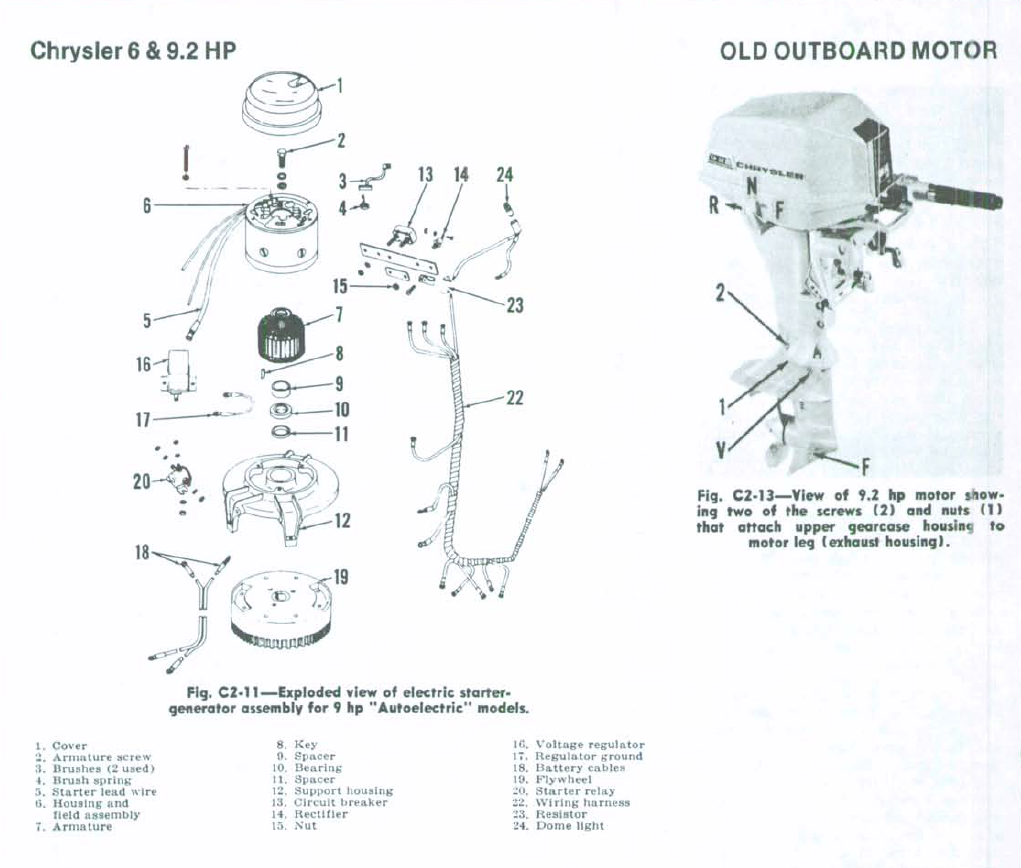

I think you can use a length of pipe or strong tubing, and a thick washer(s) to hold the flywheel on. Item #2, "armature screw" does the work. Just make sure you have square ends.
October 12, 2018 at 11:17 am #84328
ford981micah
Participant
Pipe is what I was leaning towards. Thanks for the reply.
October 21, 2018 at 11:35 pm #84773
ford981micah
Participant

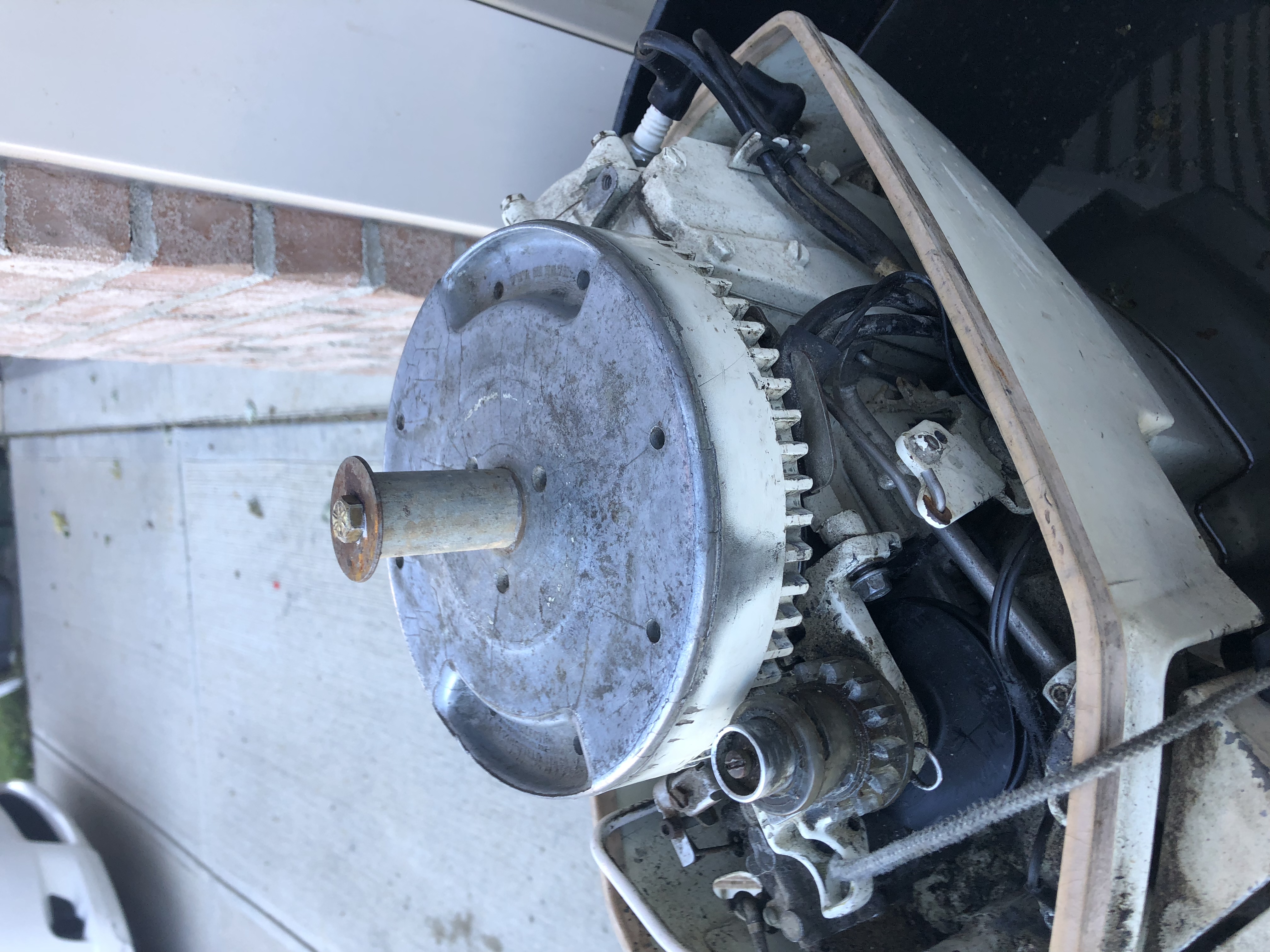

I cut a piece of pipe and put it on and she runs and pumps water.

Attachments:
October 22, 2018 at 12:09 am #84777
rjoynt
Participant
US Member
My only question would be, is it safe? Typically the nut is torqued directly to the flywheel. This looks to me to be possibly not the right fix. Just my question. And two cents.
October 22, 2018 at 5:04 pm #84820
jim-moffatt
Participant
US Member - 2 Years
It needs a tight nut to hold the flywheel on. If the threads are bad and cant be re-threaded its possible to file them off and go to a next size smaller thread. Not easy but it could be done.
October 22, 2018 at 6:49 pm #84825
amuller
Participant
I think it will be OK if you use an adequate "washer" on top of the tube. If the washer deflects torque won’t be maintained.
