August 25, 2018 at 1:14 pm #10969

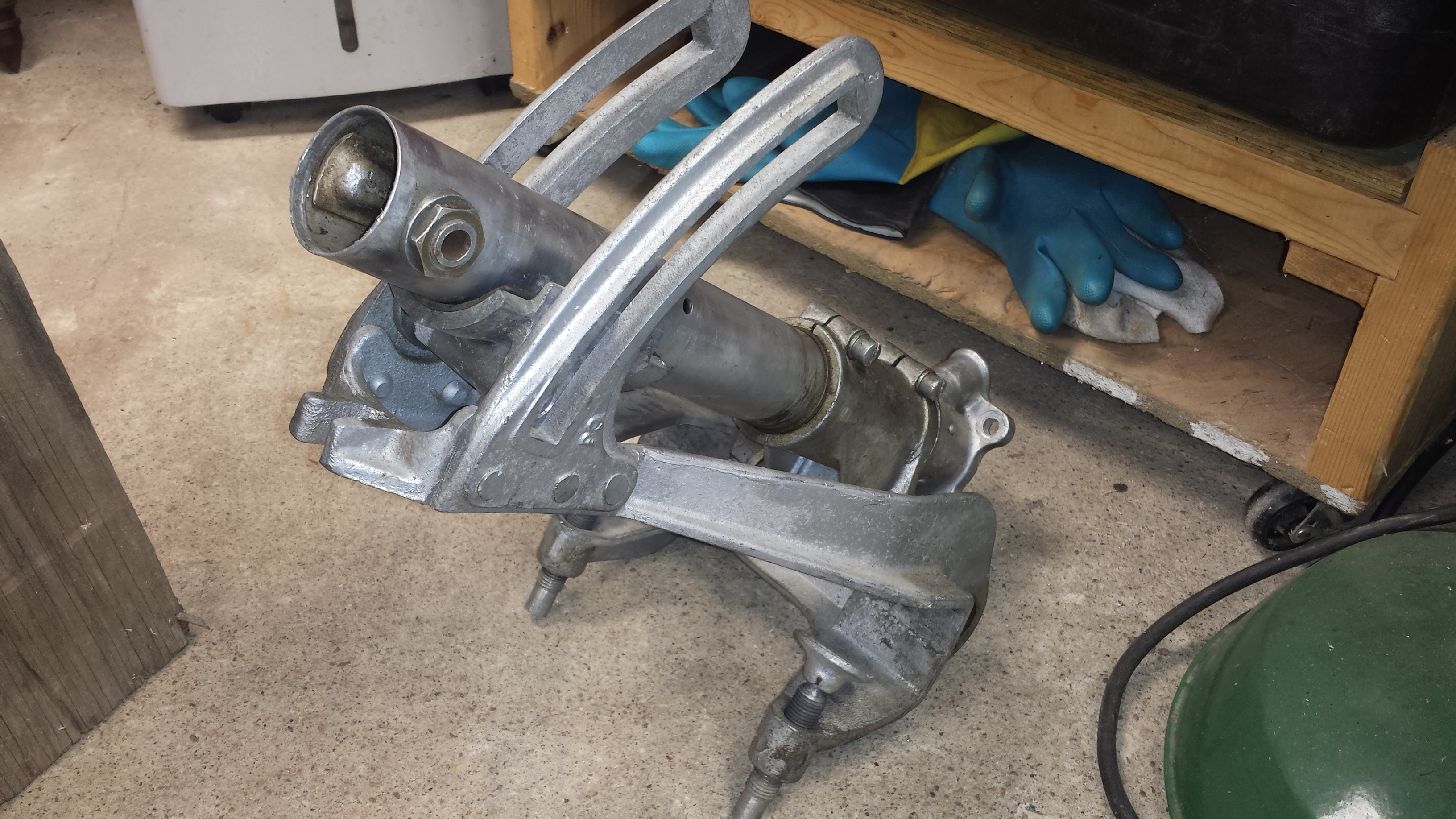

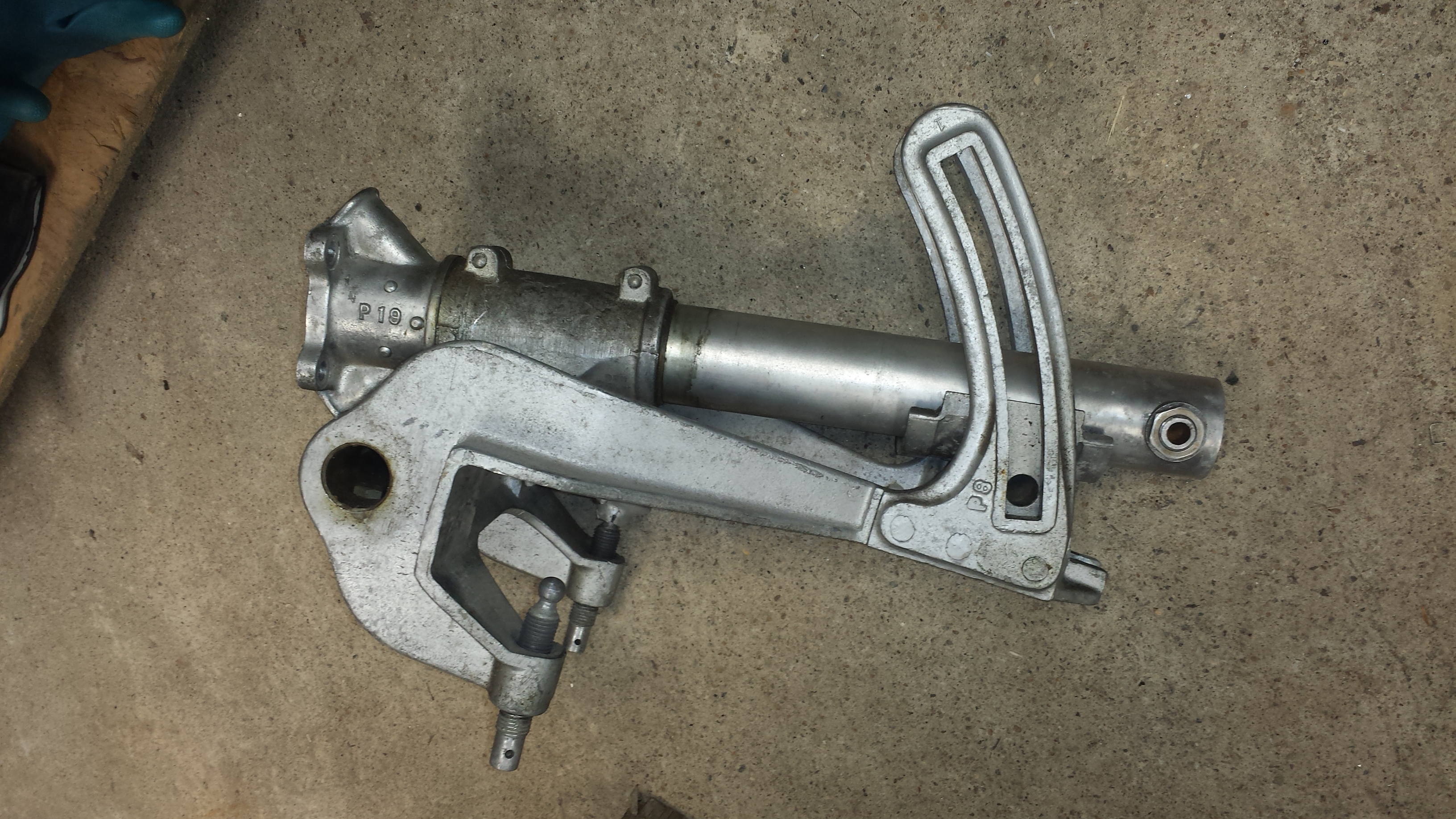

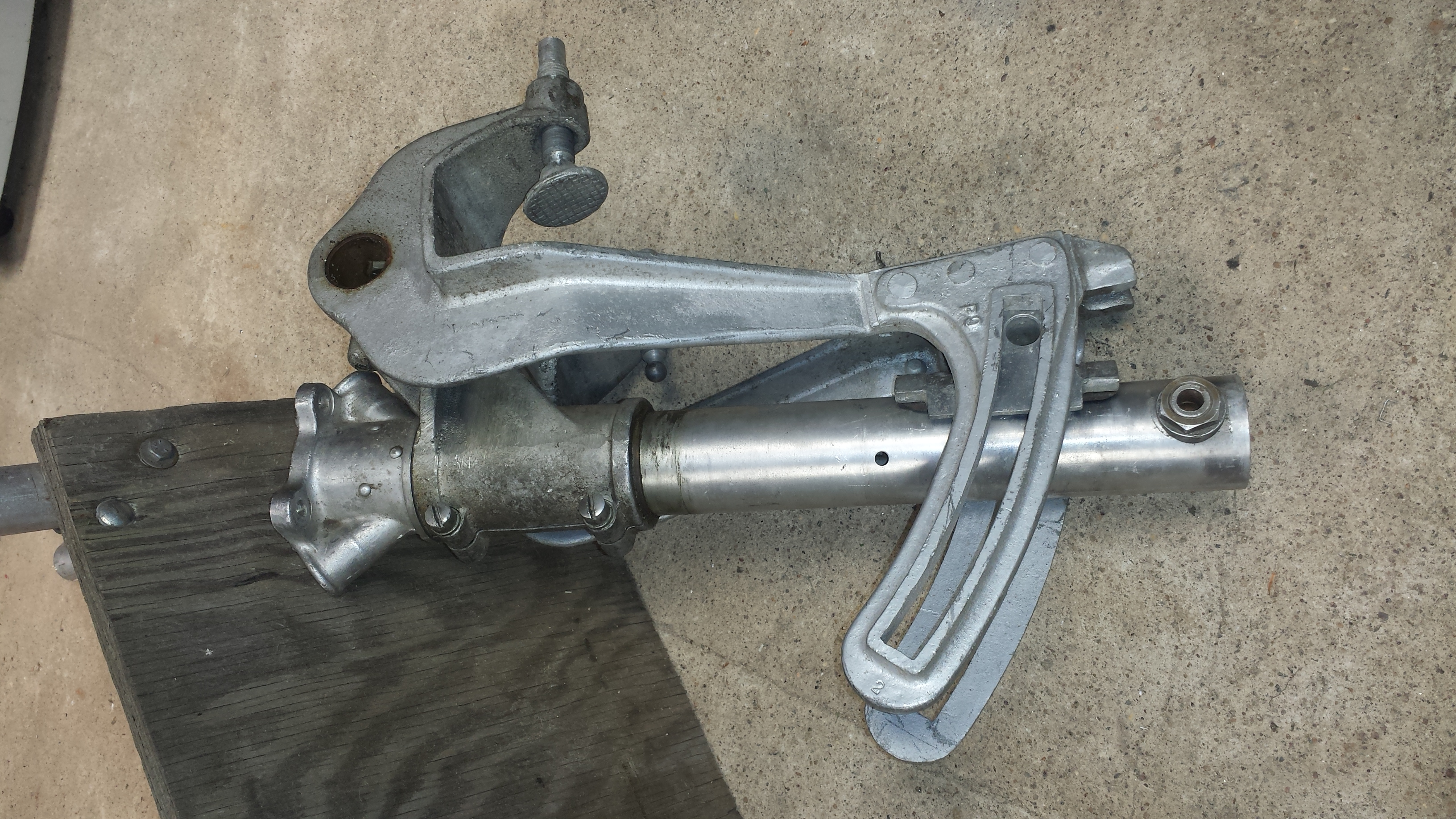

At the Mystic Expo last weekend I picked up some 20s Johnson and Evinrude parts. Among them was this leg from an early bigger Johnson.

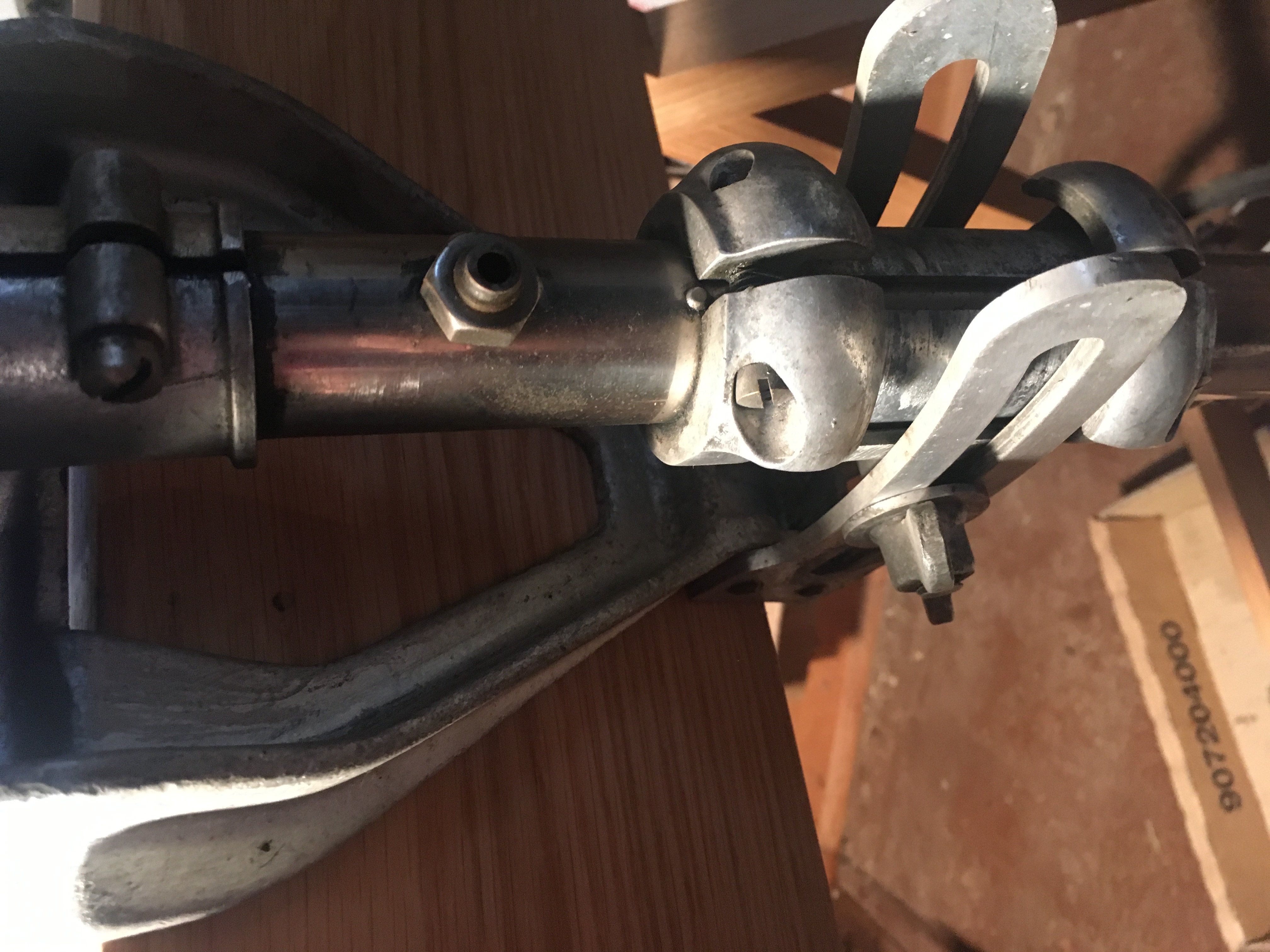

I thought it was from a P35 but it doest match the leg on my P35. I’m now thinking this might be from a P30. What has me is the water tube out/in fittings on the side of the leg.

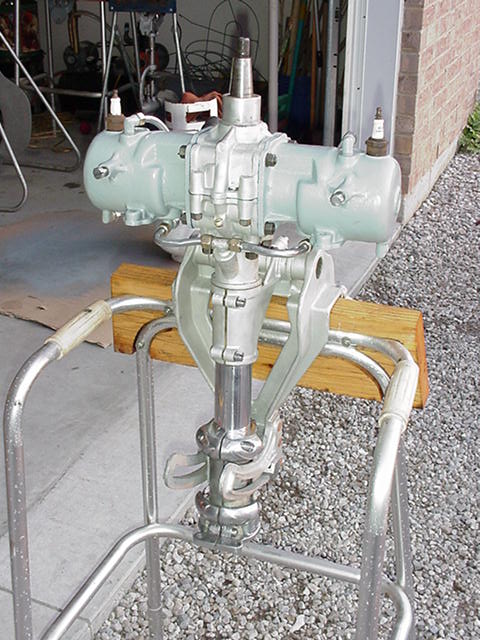

I also picked up what I believe to be a P30 powerhead.
Can someone please tell me definitively what I have?August 25, 2018 at 3:38 pm #81765can’t tell you for e sure what you have, but can tell you what you don’t have.
Not a P-30 leg. P-30 doesn’t have any water exit fittings on the tower, it all goes out the lower unit.
That leg looks like it would be for a motor with a mechanical water pump, and the P-series motors used the pressure-suction cooling system.
Does look like a P-30 transom bracket. The "P8" and "P9" casting ID’s on the tilt quadrants match up with my P-30.

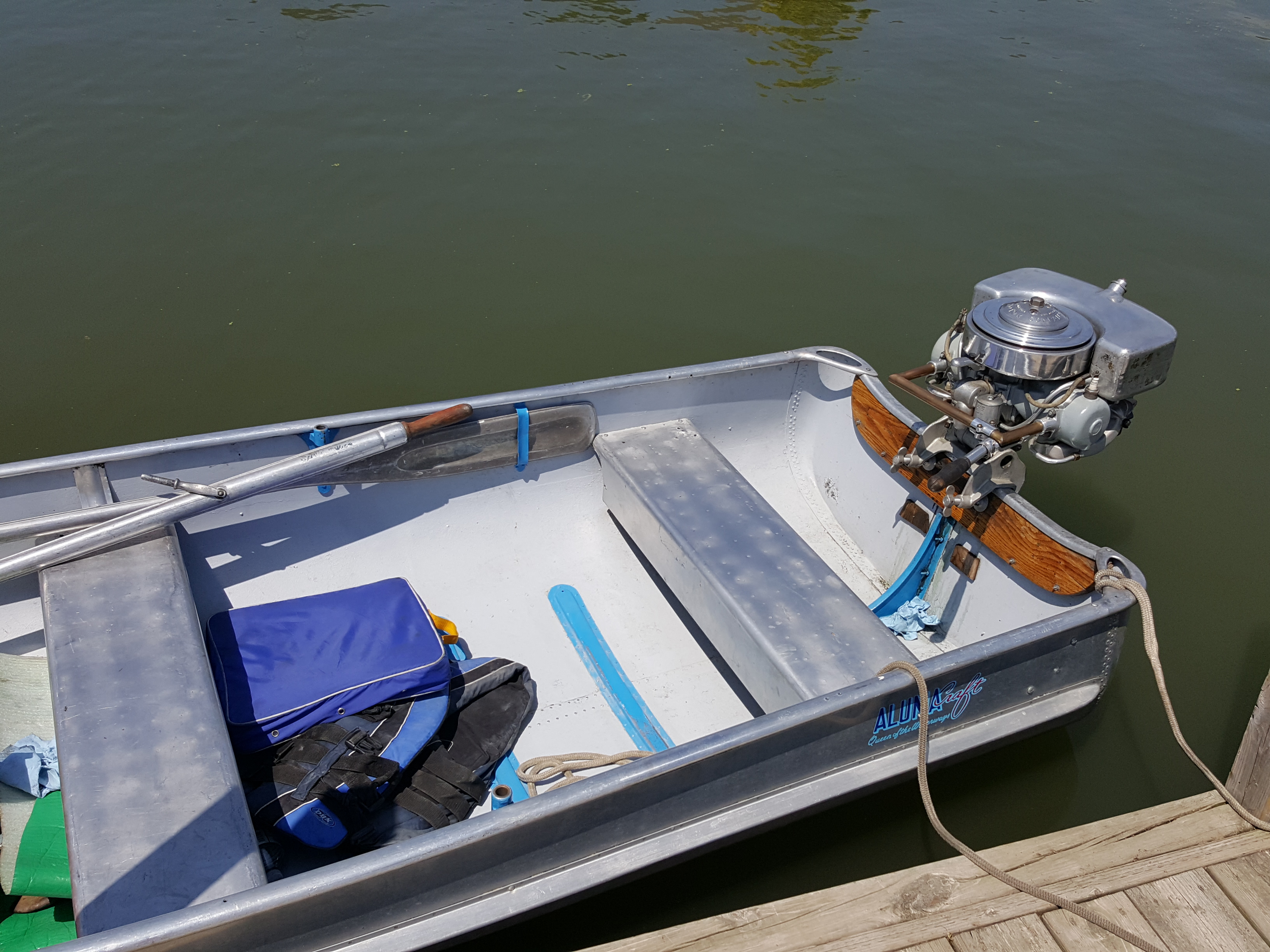

Dunno if these pixels will help, but here they are anyway
Hope this helps.
Best,
PM T2August 25, 2018 at 8:40 pm #81778Thanks for the info. The casting number on the head with 2 water connections on mine is P19.
Your P30 is coming out nice.
Thanks for the pictures. It looks like the 2nd photo is a different motor than the first.

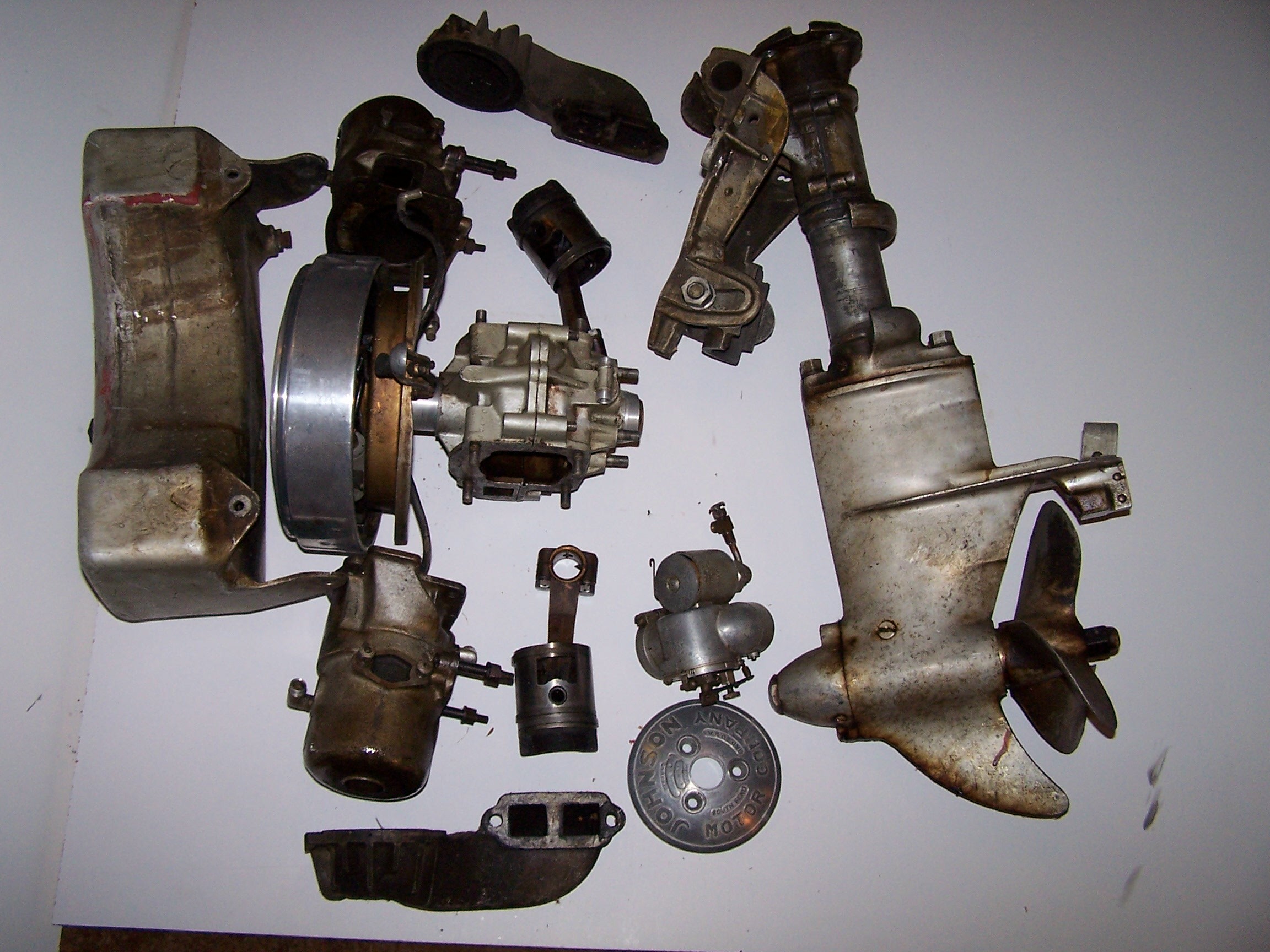

What Johnson motor of that Era was large and had a water pump?August 25, 2018 at 9:30 pm #81783August 25, 2018 at 11:40 pm #81790Second motor is ID’d in the photo as a B-35. They were an altered P-35 that used a special transom bracket that was meant for it to be installed on an Aquaflier boat. Steering was accomplished by remote control, there was a large rope sheave that mounted directly underneath the powerhead. This motor was missing the steering rope sheave.
The P-30 came out OK. Runs fine at least. I originally did the clean-up work back in 2003, but never got it back on the water until earlier this summer.
August 26, 2018 at 12:53 am #81798Chris,
Love the similar yet slightly different greens you used on the jugs and the transom clamps. Looks great.
August 26, 2018 at 1:28 am #81801I should have recognized that 2nd motor. We had a B35 show up at the Mystic Expo last weekend.
August 26, 2018 at 3:23 am #81807IIRC, Walt Peeters has/had a B-35 that I worked on and wrote an article about for the Outboarder back in the late 1990’s. There just aren’t many of those motors around.
PM T2
August 27, 2018 at 12:26 am #81847Are the lower units the same on the P35 and P40?
I noticed they share the same prop. -
