June 14, 2018 at 1:40 pm #10242
mike-stroz
Participant
Looks like my "new" condensor just gave up the ghost. What value should I get to replace it?
June 14, 2018 at 2:19 pm #77893
dougs-outboards
Participant
Standard OMC condensers are about .22 mfd +/-, dunno about 1940 values tho. Experts will be along shortly…
June 14, 2018 at 2:30 pm #77894
dougs-outboards
Participant
Found this post:

Chris_P
Posts: 2488Joined: Tue Mar 10, 2015 1:59 pmLocation: Hamilton ONContact:
Contact Chris_P
Send private message Send email Website Re: How do I match condensers and spark coils?
Report this post Quote
Unread postby Chris_P » Mon Jun 11, 2018 6:33 pm

Not sure if you saw my post, but which motor are you referring to? Spent a while trying to come up with a motor that doesn’t have the condenser value listed, but couldn’t think of one.

You may just be overthinking this.

Think the highest condenser I ever had to buy was for the P30, P35, P40, P45, PR40, TR40 which use the 72-651 rated at 0.4 (0.36 to 0.44)

As Joe states, good old 0.22 almost always gets her done. 90 percent of the time anyways
June 14, 2018 at 7:53 pm #77920
garry-in-michigan
Participant
Lifetime Member

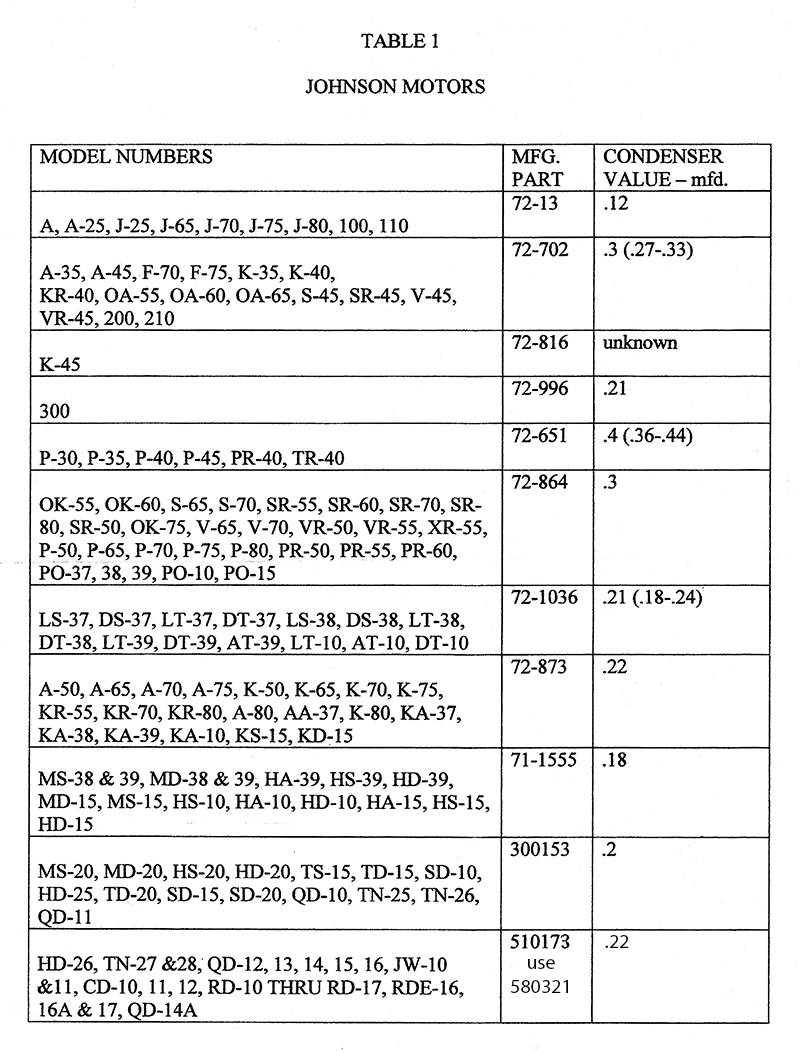

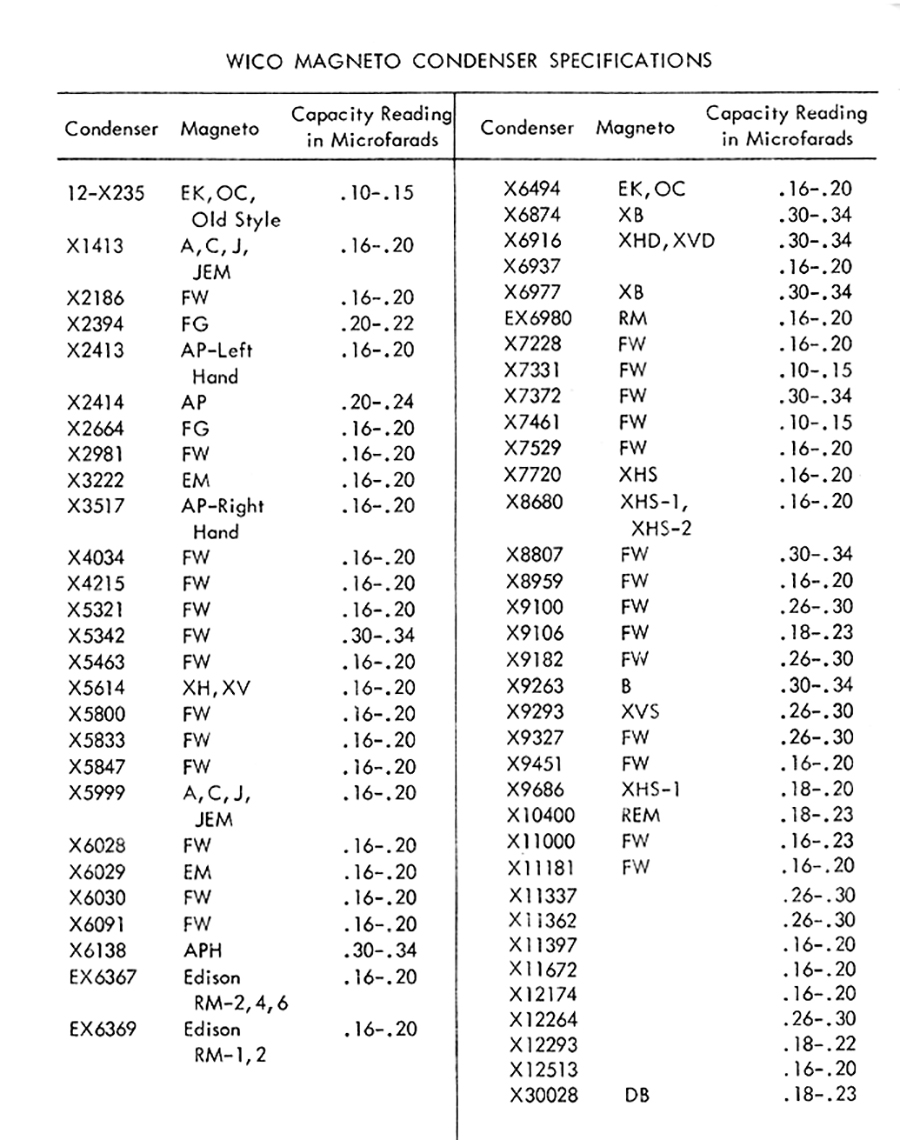

I would thought you would have copied these down by now . . . 😆
June 15, 2018 at 2:56 am #77945
mike-stroz
Participant
I’m definitely going to be copying down those charts now! I’ve been pretty darn lucky with condensors in my Eltos up until now, this is the first one I’ve needed to actually buy!
June 15, 2018 at 6:32 pm #77984
mike-stroz
Participant
One more question- does anyone recommend a specific brand of condensor or place to buy from?
