  • #10740
    ventus
    Participant

      Im restoring a fastwin 18 and having lots of snags along the way. I just about have it done and now im at a big one. Ive done a bunch of research on tuning the high speed and idle dials. Consensus ive found is starting positions are idle at 2 1/2 from stop and high speed 3/4 from stop. Wont start….i finally got it started by leaning the idle to about 1 3/4 from stop and high speed to about 1/2 from stop. But wont stay running at idle, only when i have my finger on the throttle opening it up about 1/4. Runs smooth like that but rpms are what i would imagine idle should be and when i open the throttle all the way it seems at maybe 1/2 throttle rpms. Guesses on both only as ive never had one of these before nor operated one. One theory ive had is too much oil in the gas. Ive mixed it to 24:1 as the owners manual recommends but ive found out that the oils are way different from 1957 to now. I dont want to just experiment with less oil and risk hurting my motor. Oh and a side note. I had a professional check the rods and linkages on the carb and everything is aligned correctly for throttle and idle. And it is definately getting a nice full flow of fuel. I did a single fuel line conversion with a briggs and stratton pulsing fuel pump. I pulled the fuel line while i had it running and fuel flow was constant until it died. Im open to any suggestions. Thanks for your time

      #80572
      billw
      Participant

        US Member - 2 Years

        Sounds like it’s running on one cylinder, to me. Of course, diagnosing over the Internet is almost as bad as reading tea leaves. What have you done, or not done, to the ignition system?

        Long live American manufacturing!

        #80573
        david-bartlett
        Participant

          Welcome. Those are great motors.

          Low speed and high speed at 3/4 turn should get you going.

          Best to adjust high speed on a boat, then adjust low speed.

          Fuel mix 24:1

          What is the compression?

          Are the ignition parts new? What make?

          #80576
          lindy46
          Participant

            US Member

            Have you cleaned/rebuilt the carb? Any gunk in the slow speed circuit could affect the idle. Start with slow speed no more than 1.5 turns open.

            #80577
            frankr
            Participant

              US Member

              2-1/2 turns on low speed needle are way too rich. Opening the throttle with your finger leans it out. Well, duh. 1-1/2 turns for beginning is the norm, but final adjustment will likely wind up closer to one turn. Likewise, 3/4 on HS will likely be rich. Yes, it needs to be adjusted on a boat, on the lake to get it right on.

              #80581
              outbdnut2
              Participant

                US Member

                Have you pulled the spark plugs to see if one is wet and not firing?
                Dave

                #80583
                ventus
                Participant

                  Ok, lots to try out, so thank you to everyone. I have rebuilt and cleaned the carb. And yes i have pulled the plugs to check not only for wetness. I will try the settings mentioned. Both cylinder heads are hot after i run it and at the same temperature. I used a infrared laser thermometer often and to be honest they seem cooler than i would have thought, though i should have written the temps down so i could mention them. I will let you all know how it goes. Thanx again

                  #80593
                  jerry-ahrens
                  Participant

                    US Member

                    sounds to me like you need to get the carb adjustments dialed in… with the high speed open that far, the motor will be way to rich, and could exhibit the symptoms your describing. Try running the engine full throttle… very slowly turn the high speed adjustment knob to the right until the motors rpms speed up and smooth out. Continue this very very slowly (to the right) until your motor begins to slow and big down, due to being to lean. While continuing to run at full throttle, turn the adjustment knob to the left (to open) until your motors rpms come back up. The idea is to get that sweet spot between the edge of being to lean, and to rich.Now you can proceed to the low speed side. This is done at idle, in gear., and must be fully warmed up. When turning the low speed dial clockwise (very very slowly) the motor will eventual start to lean cough. Now you can tweak the adjustment open till it smooths out. I hope this all makes sense. I think you power loss is due to (at least in part) your high speed adjustment being way to ruch.start with 1 Turn open on the low side and 3/4 turn open on the high side. FYI those motors cough at idle till they warm up, that’s normal. Of course all of this is assuming the ignition system is in good order.

                    #80594
                    jerry-ahrens
                    Participant

                      US Member

                      And i typed this on a Smart phone… sorry for the mistakes! Im at Tomahawk, awayfrom my computor.

                      #80644
                      garry-in-michigan
                      Participant

                        Lifetime Member

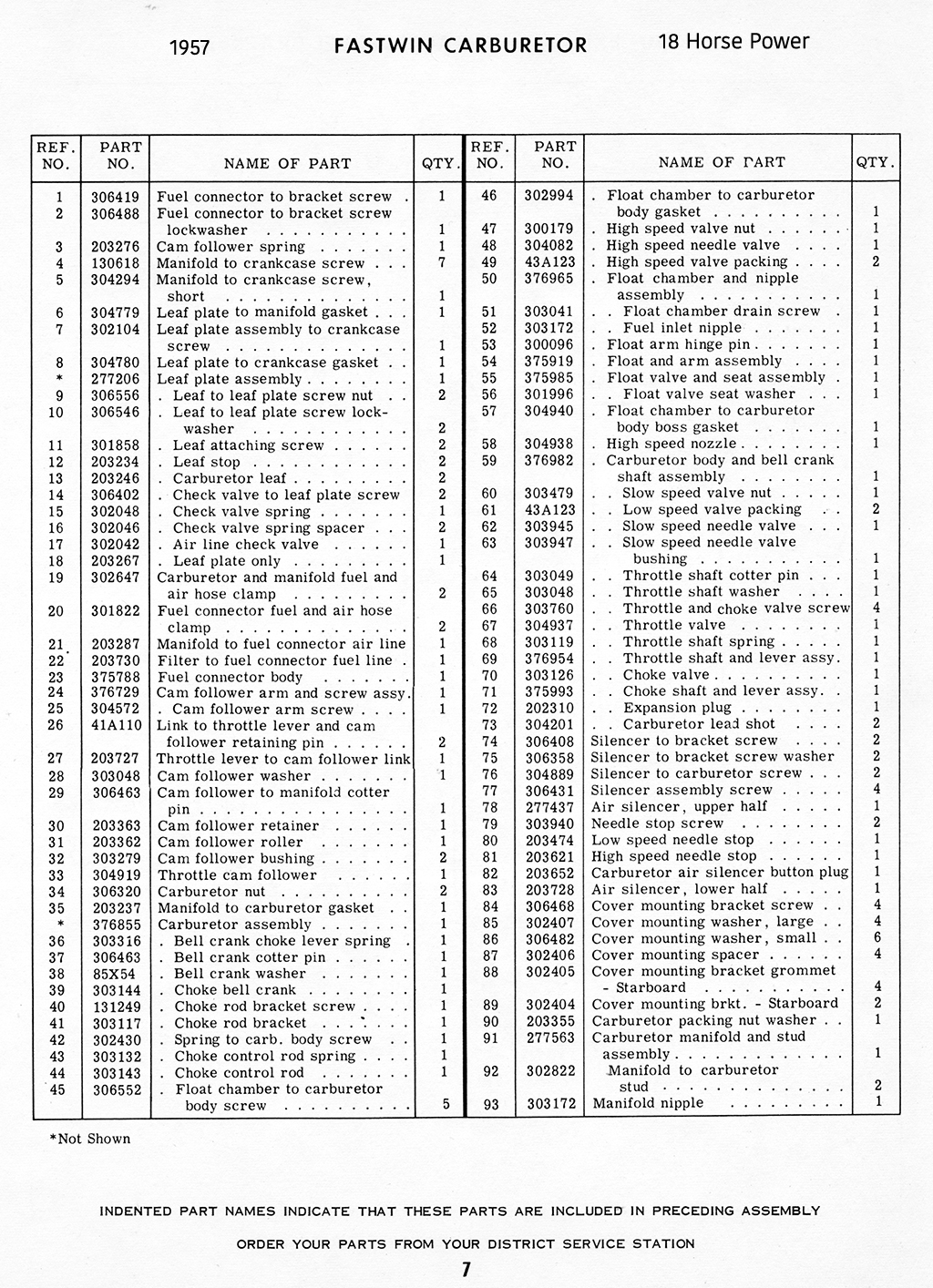

                        That is a good outboard. If the 304940 boss gasket is damaged or missing it will allow fuel to bypass the high speed adjustment needle valve and could make it difficult to get a proper adjustment. The taper on the needle valve must be smooth without any notches. . . 😎
