June 16, 2018 at 8:06 pm #10274
Hello,
I’m doing my first ever tear down of an outboard, and I need some guidance.
I have a 1957 35 HP Evinrude Lark that I’ve been disassembling in order to repair/replace parts in hopes of getting it running. I had a broken off bolt in the power head that a friend repaired, and when he was looking it over, he noticed that the "The crank has 0.040" end play" which he felt was excessive but wasn’t sure. He suggested asking here.
I haven’t split the crank case yet, so I haven’t looked over the internals.
Thanks for your help!
Trey
June 16, 2018 at 8:38 pm #78060Not familiar with the Erudes and do not know the setting but sounds like 0.040 is excessive, typically it is much less than that, ex the old mercury’s use 0.008" – 0.012". Someone on this site should know the setting. You will need to open it up to use shims to set it. Not sure if there are shims at the top and bottom bearings. Look up your engine schematic with engine serial # on a parts site like
June 16, 2018 at 10:00 pm #78061I just checked the Evinrude factory service manual, and they do not list a spec for that. However, I can tell you from experience that most that I’ve seen had a surprising amount of end play. What did I ever do about it?? Nothing except keep on running it. It doesn’t seem to hurt anything. However, I suggest using a quad ring inside the lower carbon seal instead of the original o-ring. Quad rings are better at sliding on the shaft as it moves up and down. O-rings tend to roll instead of slide.
June 17, 2018 at 4:14 am #78068Thanks for your quick responses, but you may need to break it down a little more for me. What are quad rings? Where do I get them? What size?
This is my first time
Thanks!
Trey
June 17, 2018 at 4:22 am #78070The quad ring seals the lower crank bearing. It’s like a 90 degree cornered O ring and an upgrade from what you likely have on your motor.
The upper seal will be a regular seal and not a quad ring.
June 17, 2018 at 12:28 pm #78077Showing a quad ring cut in half. OMC changed to using them at some time after yours was built. You can get 100 of them for less than dealer price for one.
http://www.mcmaster.comOctober 14, 2018 at 10:34 pm #84418Got another question for the motor experts. I’ve removed the head and am replacing the head gasket. The service manual is a little vague about whether the head gasket should use "Perfect Seal #4" along with the rest of the crank case gaskets. Does it need to be installed dry or with the extra sealant?

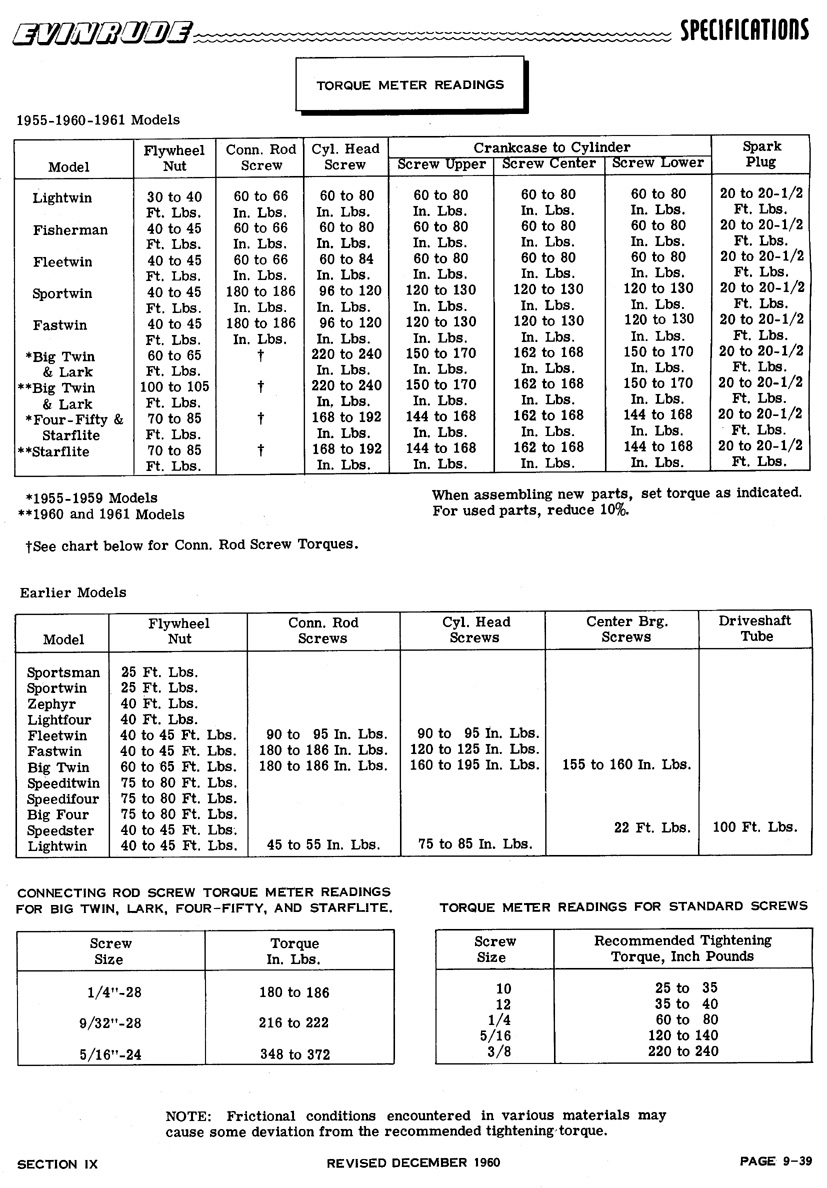

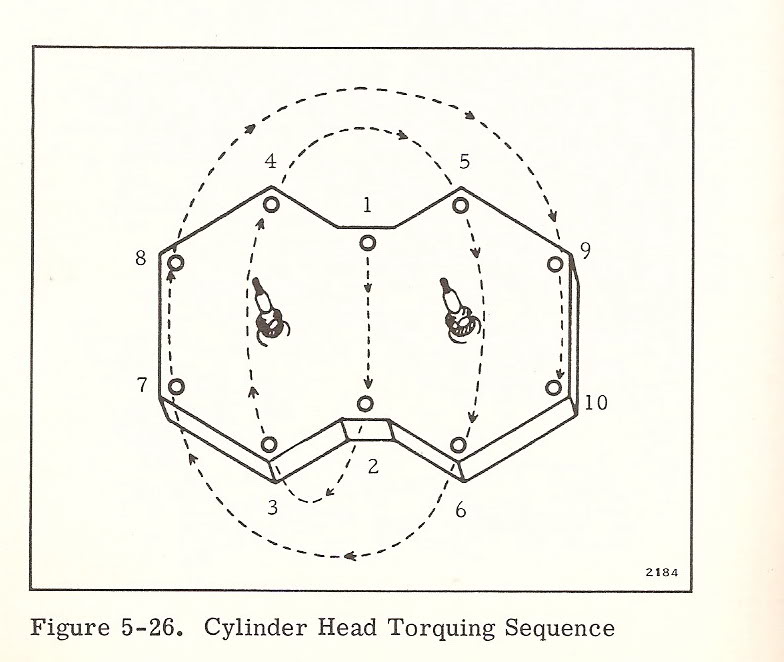

October 14, 2018 at 11:05 pm #84420If you bought a new gasket, it will have a coating applied to it at the factory. If it does, you do not need any additional sealer. Simply torque to spec. Start at 1/2 torque value, then 3/4 for a round, then the final torque setting for a round. Start in the center, and spiral outwards with every pass. Coat the bolts in the sealer though. Dress the head to ensure it is true.
October 14, 2018 at 11:49 pm #84422Thanks!
October 15, 2018 at 10:50 am #84445Everyone of those Big Twin’s that I’ve ever worked on had the end play that your speaking about. Nothing to worry about.
-
