  • #59677
    debe
    Participant

      Its a silicone heat sink material from electronic stores to suit TO220 transistor shape.

      #59679
      debe
      Participant

        Theres a step by step pictures of how to assemble these on http://www.electro-tech-online.com/thre … le.142530/ its posted ATOM Diy module by debe.

        #59680
        bob-d
        Participant

          US Member

          Great write up. Thank you.

          #59695
          chinewalker
          Participant

            US Member

            I bought a module for my old Stihl chainsaw recently. Not sure if it’s the same thing, but I believe it works the same way. It mounts externally (coil is external to flywheel on my saw) and it replaces both the points and condenser. Worked really well! I might snag a pair of them at some point and see if and how they work in an outboard mounted under the flywheel.

            #59698
            Mumbles
            Participant

              The Atoms were color coded for different applications and the red ones are what you want for outboard motors.

              #59718
              joesnuffy
              Participant

                Thanks for all the info. Great job.

                Joe

                #59734
                ken-w
                Participant

                  US Member

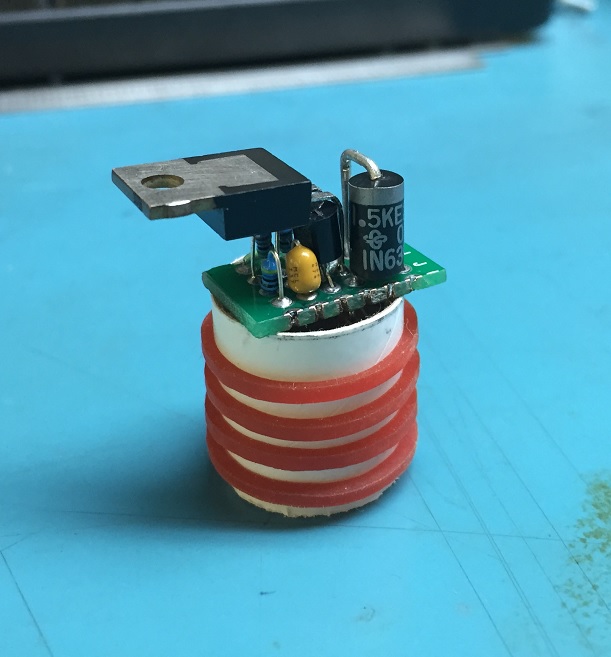

                  My attempt with a high voltage Darlington @ 300v and testing with a IGBT @ 430v.

                  Ken W

                  #59735
                  ken-w
                  Participant

                    US Member

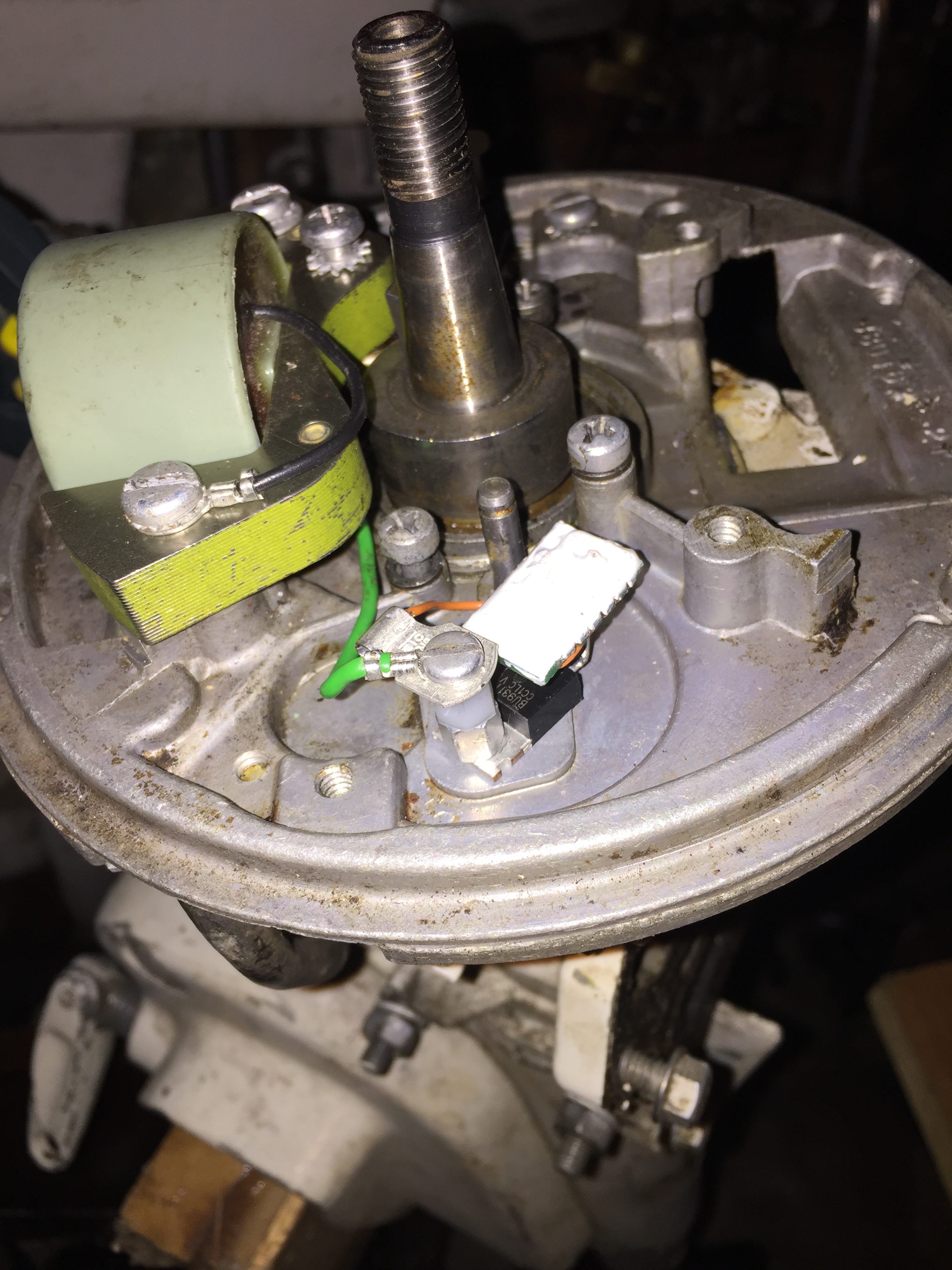

                    Picture of device Installed, I have video but the file is too big for Photobucket. I can spin the flywheel with my hand and get a nice fat spark with every revolution.

                    Ken W

                    #59738
                    wedgie
                    Participant

                      That’s a thing of beauty Ken.

                      #59741
                      phil-b
                      Participant
                        quote Ken W:

                        My attempt with a high voltage Darlington @ 300v and testing with a IGBT @ 430v.

                        Neato!

                        It seems like most of the power darlingtons suitable for the "ATOM" circuit are no longer made, and replaced by IGBTs in new applications.

                        Your build is VERY tidy! It looks printed circuit board ready!
