October 8, 2018 at 2:45 am #11475October 8, 2018 at 3:10 am #84136
strong magnet …won’t work I guess !
Joining AOMCI has priviledges 🙂
October 8, 2018 at 3:47 am #84137I pulled one by center punching the pin, drilling a hole, threading a self tapping screw into the pin, then pulled on the screw head with pliers. Just prior to pulling on the screw head, I applied some heat to the housing to help expand the pin hole just a bit. Made a new pin from some rod stock I had. Takes a lot of patience to get this done. If you can get the pin punched exactly dead center, guess you might be able to just drill the pin out kind of like drilling out a broken head bolt.
Here’s a link where I got the idea:
https://conductorjonz.wordpress.com/201 … p-day-two/
Scroll down the page a little ways to see how this guy did it.
Bob
1937 Champion D2C Deluxe Lite Twin
1954 Johnson CD-11
1957 Evinrude Fastwin 18
1958 Johnson QD-19
1958 Johnson FD-12
1959 Johnson QD-20“Every 20 minute job is only a broken bolt away from a 3-day project.”
"Every time you remove a broken or seized bolt an angel gets his wings."October 8, 2018 at 9:26 am #84142I did one by drilling an angled hole down from the OUTSIDE, on the nose, down to meet the hole where the pin is. Then I drove the pin out to it’s normal depth with a pin punch, tapped my drilled hole and Loctited in a stainless set screw. I think I used a #10-24 set screw, so I picked a drill size for that. I’m not particularly proud of it but it worked.
Long live American manufacturing!
October 8, 2018 at 11:38 am #84143I made a jig, drilled into the pin, tap it, then use the puller I made to remove the pin, worked very well.
http://www.richardsoutboardtools.com
classicomctools@gmail.comOctober 8, 2018 at 2:41 pm #84148Would it work to just drill another hole near the pin and put a new pin in that hole? It looks to me like the pin just keeps the bushing from turning, and the exact location is not critical. Somebody please correct me if I’m wrong. If the old pin is sticking up a little bit, it could be filed or ground down flush with the housing.
DaveOctober 8, 2018 at 3:24 pm #84152Correct Dave. Sometimes easier to simply drill a new hole and install a new pin. Some don’t have room, but most do. THat is the route I prefer when possible.
October 8, 2018 at 4:12 pm #84153I would add that while drilling a new hole would be faster, imagine if you drilled it in the wrong location??? Like too close to the gears, then it would not go together…
I can duplicate the jig I made, pretty simple and then you know the hole is correct.. I have drilled enough holes in aluminum to teach me that if it aint jigged properly all bets are off on where that hole will wander to, notice I did not say IF it moves…Your mileage may vary, as not everyone has the experience to do that properly….
http://www.richardsoutboardtools.com

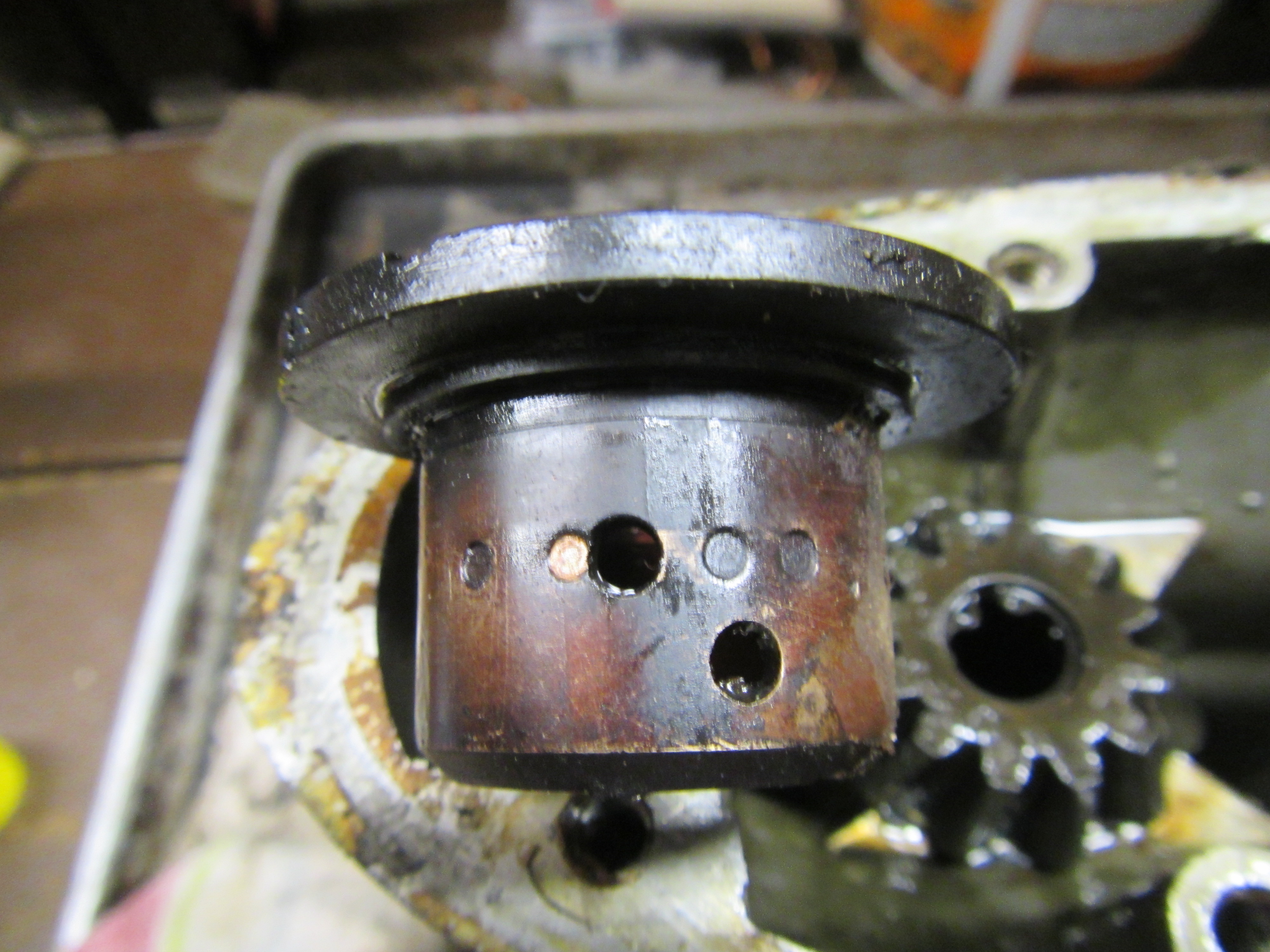

classicomctools@gmail.comOctober 9, 2018 at 1:53 am #84170Thanks for the ideas! I might just mark the bushing so it will be in the proper spot when I put it back together. I have a L of a time drilling anything straight! The oil hole is suppose to align with an oil galley under the bushing. But it has ran plenty out of place and it did not seam to hurt anything. Maybe I’ll try some supper glue! It is suppose to hold a ton.
dale
October 9, 2018 at 10:53 am #84180I would also take a moment to slip the gear into that messed up bushing and spin it…The bushing may have been deformed/crushed after being misinstalled a few times.
-
