June 1, 2026 at 8:34 am #320543
Aidan Smith
Participant
US Member
Recently got a WG-4 for the low cost of $0.

It is complete other than the lower cowl. The ignition looks okay, but has yet to be tested. Unfortunately the powerhead I believe is frozen.

Not sure how the lower unit comes off, as I can’t find a good service manual and won’t drop after the removal of one nut.

Any ideas on where to go from here? I’d love to save it. The tank is undented, and is decently clean. It had never been run in saltwater either.

Thanks!

"Shells sink, dreams float. Life's good on our boat."
1949 Mercury KE-4
1952 Mercury KF-3,-5,-7
1952 Mercury KG-7Q

1937 Evinrude Scout
1938 Elto Pal
1946 Evinrude Ranger
June 1, 2026 at 9:08 am #320545
RICHARD A. WHITE
Participant
Lifetime Member
..

http://www.richardsoutboardtools.com
classicomctools@gmail.com
June 1, 2026 at 11:18 am #320555
Aidan Smith
Participant
US Member
Not sure if its my end, I just see 2 “..”

"Shells sink, dreams float. Life's good on our boat."
1949 Mercury KE-4
1952 Mercury KF-3,-5,-7
1952 Mercury KG-7Q

1937 Evinrude Scout
1938 Elto Pal
1946 Evinrude Ranger
June 1, 2026 at 12:05 pm #320557
RICHARD A. WHITE
Participant
Lifetime Member
I had thought these were the same as the Kg4’s and such… there are 2 bolts to remove the lowers on them. I have not seen the WG4 in a while, so maybe not the same???

That was why the … because I wanted to check when I got home… Were you needing parts for a like Model G or J Ruddertwin? I vaguely remember something about that…

http://www.richardsoutboardtools.com
classicomctools@gmail.com

1 user thanked author for this post.

Aidan Smith
June 1, 2026 at 12:43 pm #320559
Aidan Smith
Participant
US Member
Yes, I need the lower oil seal casing on a model j ruddertwin, that goes behind the prop.

The WG-4 is more like the KD-4 I believe, but the lower end is totally different. There’s only one exposed nut. Looking for a parts manual now

"Shells sink, dreams float. Life's good on our boat."
1949 Mercury KE-4
1952 Mercury KF-3,-5,-7
1952 Mercury KG-7Q

1937 Evinrude Scout
1938 Elto Pal
1946 Evinrude Ranger
June 1, 2026 at 1:02 pm #320560
seakaye12
Participant
US MEMBER PAY BY CHECK
WG-4 Parts Manual

Wizard-WG-4-Parts-Manual

1 user thanked author for this post.

Aidan Smith
June 1, 2026 at 1:33 pm #320564
green-thumbs
Participant
US MEMBER PAY BY CHECK

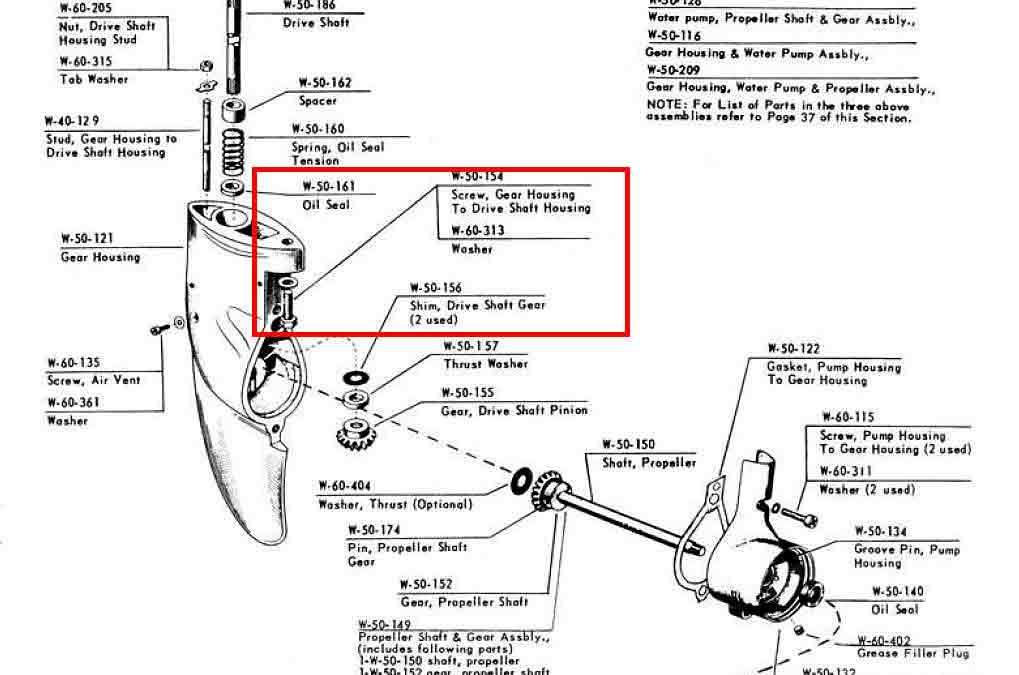

WG4 Wizard is basicly a KD4 Mercury with Wizard specific parts, To access the second screw that secures gear foot to tower remove 2 screws that hold water pump . Keep track of which parts go where to avoid reassembly issues, Once apart inspect and repair as required, Gear eas and water pump same as Mercury KD4 These are easy motors to work on, but, there is a learning curve of do and don’t.

Good Luck

1 user thanked author for this post.

Aidan Smith
June 1, 2026 at 2:58 pm #320565
Aidan Smith
Participant
US Member
Thank you. I am familiar with the bigger motors, (KE7, KF7, KG7) etc, and some like the Mark 5/6, but Wizard had different styling.

They seem a bit simpler. Any recommendations in terms of where to find replacement impellers?

"Shells sink, dreams float. Life's good on our boat."
1949 Mercury KE-4
1952 Mercury KF-3,-5,-7
1952 Mercury KG-7Q

1937 Evinrude Scout
1938 Elto Pal
1946 Evinrude Ranger
