      Anyone know what the L stands for after the model number for a 1956 fd-10L thanks

      #248735
      johnny
      Participant

        US Member

        My guess is long shaft.

        #248737
        crosbyman
        Participant

          Canada Member - 2 Years

          the red book does not mention any FD10 L more likely just a FDE-10 …experts will tell if they made long shaft FD10 in 1956

          Joining AOMCI has priviledges 🙂

          #248743
          hondaatc
          Participant

            US Member

            Hi fellas i have included some pictures of said motor it looks like a normal size lower unit but I’m not sure

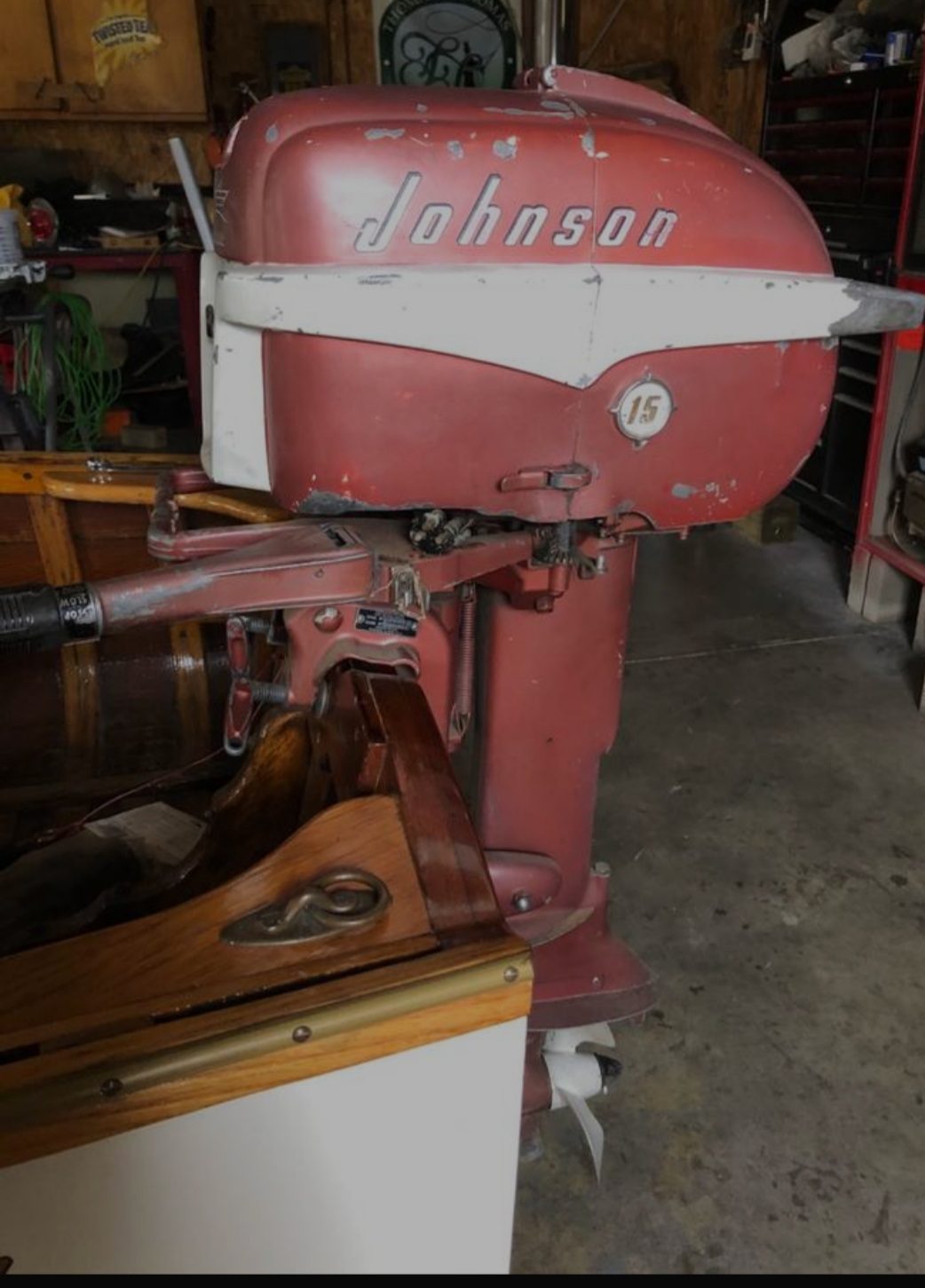

            Screenshot_20211027-111258_Samsung-Internet

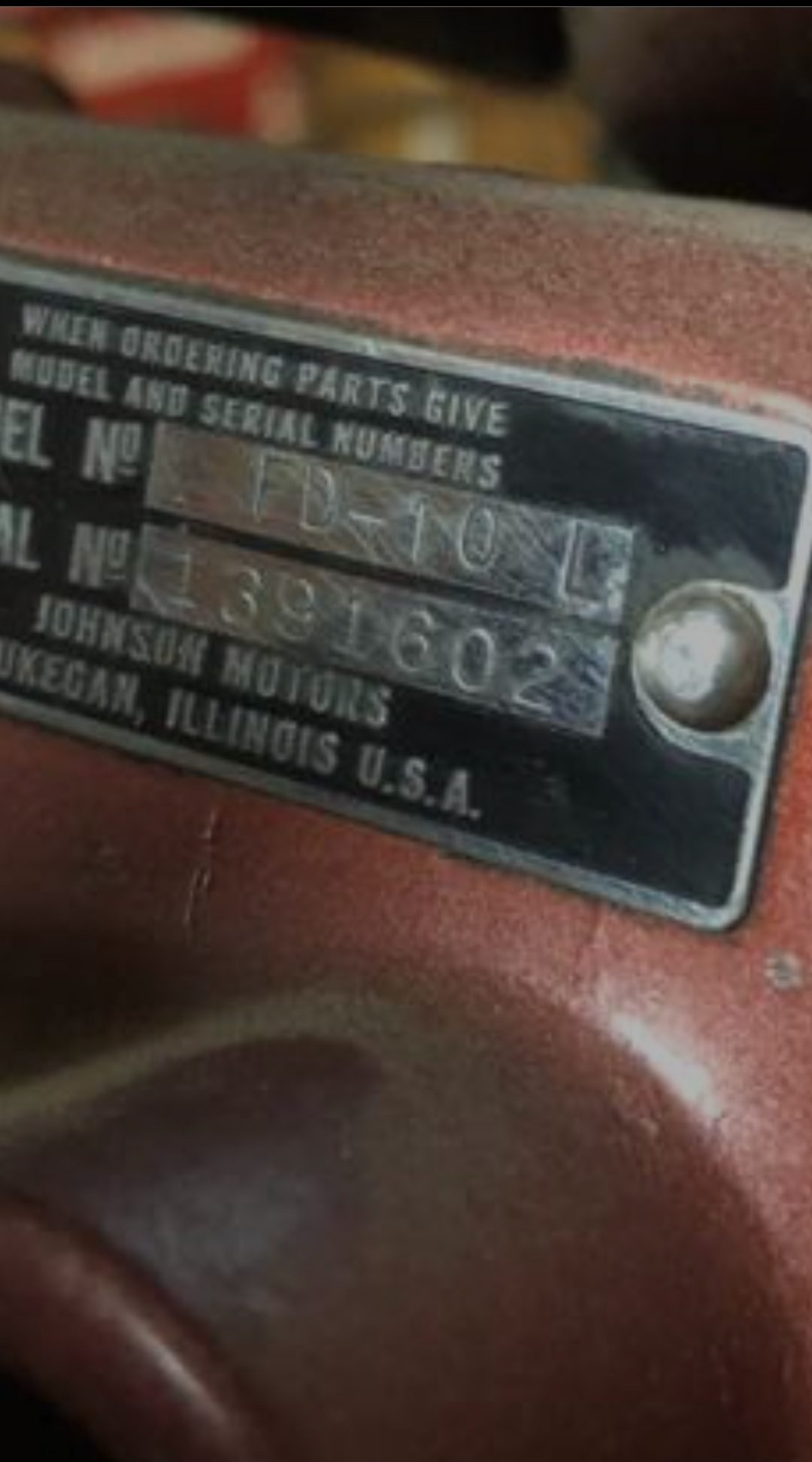

            Screenshot_20211027-111318_Samsung-Internet

            • This reply was modified 2 years, 6 months ago by Mumbles.
            #248746
            frankr
            Participant

              US Member

              A long shaft would be an FDL-10.. There were a few mid-year changes made in 1956. I assume the trailing L would indicate those changes, although I don’t have the specific parts book. One of the most serious changes was the lower crankshaft seal.

              #248747
              crosbyman
              Participant

                Canada Member - 2 Years

                so….what is the distance in inches clamp to cavitation plate ? that will tel you the answer 18=Short >18=long

                Joining AOMCI has priviledges 🙂

                #248751
                frankr
                Participant

                  US Member

                  The picture shows an obvious short shaft.

                  1 user thanked author for this post.
                  #248752
                  crosbyman
                  Participant

                    Canada Member - 2 Years

                    good eye …:-)

                    Joining AOMCI has priviledges 🙂

                    #248753
                    Mumbles
                    Participant

                      FD-10 L denotes it is a short shaft model, which is confirmed by your photo. As mentioned, the L identifies a production change somewhere. At least three versions of non electric shorties were built in ’56. the FD-10, FD-10 L, and the FD-10 S.

                      2 users thanked author for this post.
                      #248899
                      need2fish
                      Participant

                        My understanding is that the L is the production run number (which may include changes). Run numbers start at B. L would be the 12th run.

                        1 user thanked author for this post.
