Topic: 1956 Scott Atwater 7.5 hp Bail-a-matic impeller install

This topic has 30 replies, 5 voices, and was last updated 3 years, 3 months ago by Buccaneer.

Viewing 10 posts - 1 through 10 (of 31 total)

1 2 3 4 →

Author

Posts
January 19, 2021 at 8:35 pm #228195
Buccaneer
Participant
US Member - 1 Year (includes $3 online payment fee)
How one suppose to hold the impeller drive key on the driveshaft “flat”
while getting the impeller started in the pump housing?
You can’t rotate the impeller to get it started with the key there.
It’s possible for the key to fall down between the driveshaft
and housing center hole, never to be seen again, if you’re not careful.

I thought about pulling the impeller housing back out, install the impeller,
and try to slide the whole affair over the key as it sits in the flat, but
I had a hard enough time just getting the pump housing on the suction
tube as it was.

The manual I have just says “install it”.
How’s it suppose to be done?
Thanks.

Prepare to be boarded!
January 19, 2021 at 8:41 pm #228199
wedgie
Participant
I seem to remember holding it in with some grease. It was a while ago so …
January 19, 2021 at 8:57 pm #228210
Buccaneer
Participant
US Member - 1 Year (includes $3 online payment fee)
wedgie wrote:

I seem to remember holding it in with some grease. It was a while ago so …

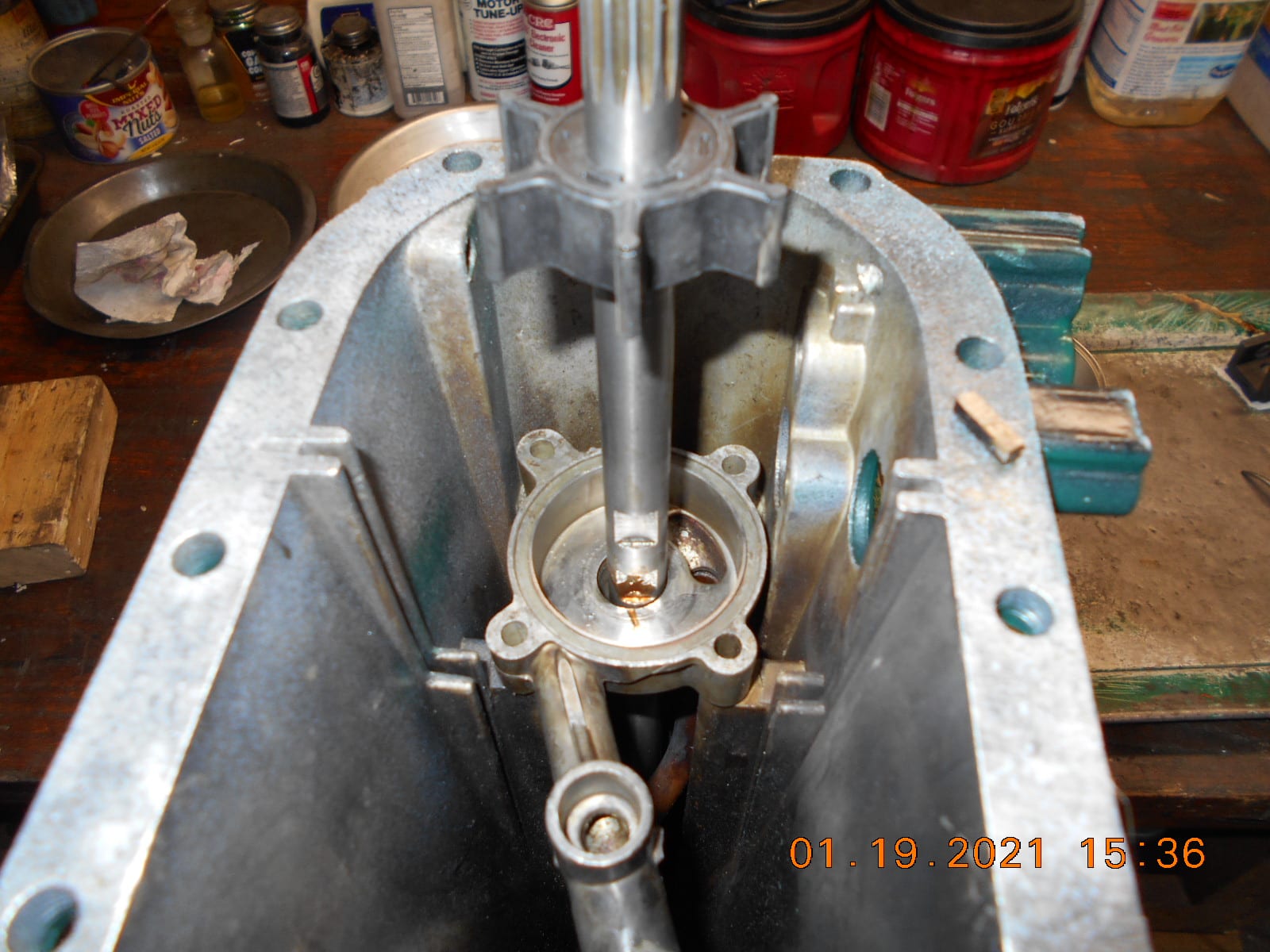

Note the “red stuff”on the flat, lol.
The problem is I can’t drop the impeller straight down in the housing
and get the impeller fins in the hole. If you rotate the impeller,
you can’t keep the key in place.

I was just thinking that maybe a thin sleeve over the impeller to
collapse the impeller diameter so it would drop straight down
into the pump housing might work. ???

Prepare to be boarded!
January 19, 2021 at 9:11 pm #228212
dave-bernard
Participant
US Member - 1 Year (includes $3 online payment fee)
2 ways
1 make a holder for the impeller from a PVC pipe that holds the impeller with the vanes folded.
2 grease the pump and turn the drive shaft and impeller at the same time while pushing down on the impeller.
January 19, 2021 at 10:21 pm #228217
Mumbles
Participant
On some small Merc impellers, I’ve used real small zap straps to hold the vanes in position while trying to get it in. I like Daves idea of using a piece of PVC pipe better though.
January 19, 2021 at 10:40 pm #228219
wedgie
Participant
I’ve used the pvc pipe on a KG4 impeller. I had to carve outside with a Dremel to fit the cavity.
I’ve used the mini zip tie on an 84 4hp Merc .
Is it possible to line up the impeller with the notch, lift up the driveshaft just enough to drop the pin in?. I might be miscomperstanding. Frank R will know for sure
- This reply was modified 3 years, 3 months ago by wedgie.
January 19, 2021 at 10:55 pm #228221
Buccaneer
Participant
US Member - 1 Year (includes $3 online payment fee)
Thanks for the ideas. I’ll play around tomorrow with the zip tie idea first, then pvc
pipe, if I find any close to the correct size.

Prepare to be boarded!
January 20, 2021 at 12:21 pm #228256
dave-bernard
Participant
US Member - 1 Year (includes $3 online payment fee)
Pack the grove with grease so the pin does not fall thru if you are worried.
January 20, 2021 at 12:45 pm #228257
Buccaneer
Participant
US Member - 1 Year (includes $3 online payment fee)
I got the impeller installed a little while ago.
I used a piece of 1-1/2″ OD thin wall pvc
sink drain. The impeller was a tight fit
inside the pvc, and it took a couple of tries
to get all the vanes bent the same direction.
I was then able to slide the impeller over the
key without much ado.
I’ll have to rig up a bucket of water and do the drill
test soon, before I proceed much further.
Thanks for the help!

Prepare to be boarded!
January 20, 2021 at 4:43 pm #228310
Buccaneer
Participant
US Member - 1 Year (includes $3 online payment fee)

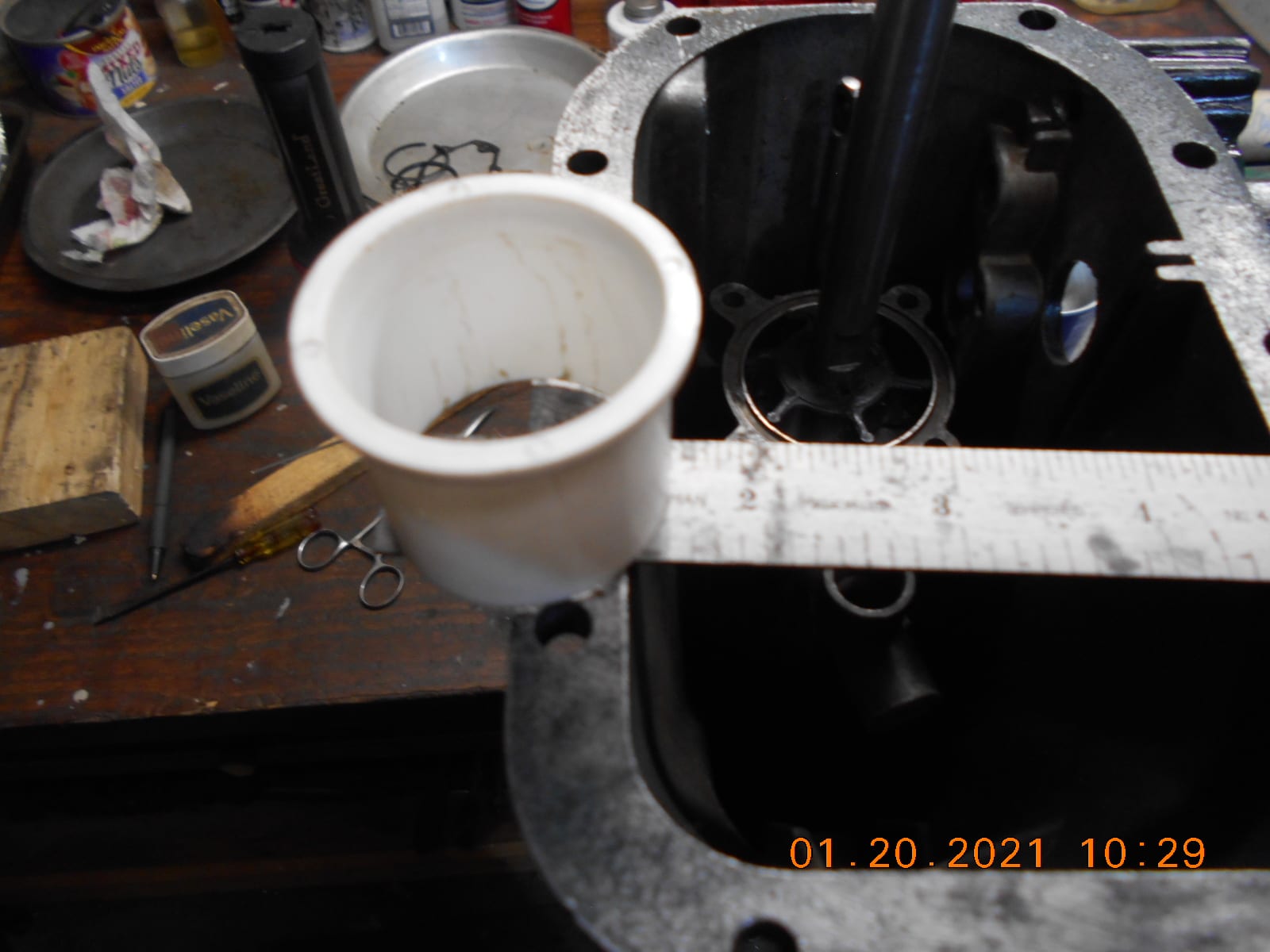

Here’s the pvc piece I used. I think it’s actually a 1-1/4″ to 1-1/2″ bushing.

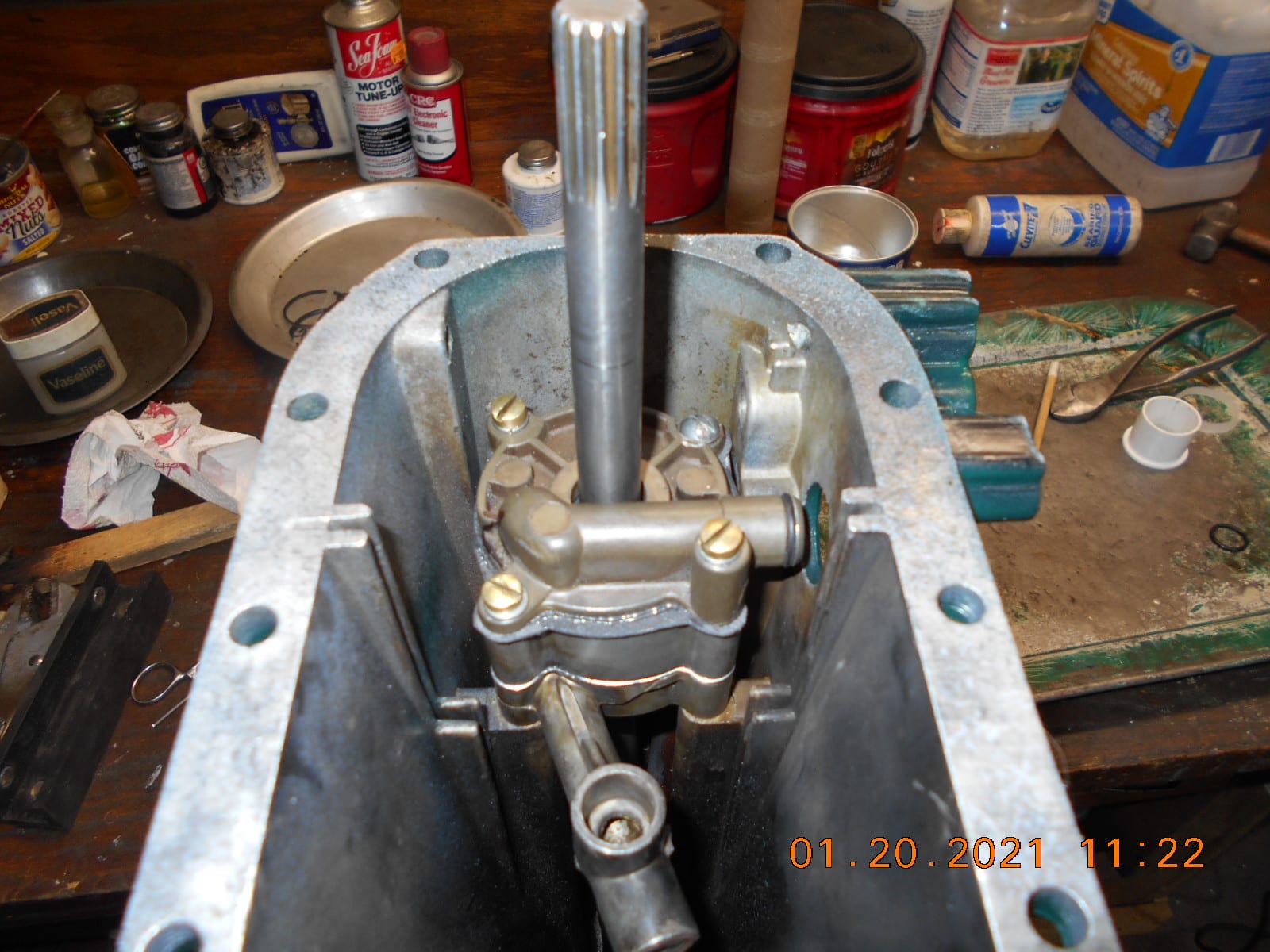

Besides the aluminum puck in the “bailer” pump cavity, I put a solid gasket
under the top cover to block the outlet to the bailer foot.

Maybe tomorrow I’ll hook up the drill and see if it will pump water.

Prepare to be boarded!
