  • July 1, 2026 at 4:46 pm #323404
    Jeff Barsch
    Participant

      US Member

      Thanks Scratcher, I’ll look at it again tonight to see if I can find those attachment points.  I looked there last night and nothing jumped out at me.

      If anyone has a photo of how this is installed it would be greatly appreciated!

      1954 Evinrude 7.5 HP
      1954 Evinrude 15 HP
      1954 Gale 12 HP
      1955 Johnson 10 HP
      1956 Johnson 10 HP
      1956 Gale 12 HP
      1956 Evinrude 5.5 HP
      1957 Johnson Golden Javelin 35
      1958 Johnson 7.5
      1960 Evinrude 18 HP
      1973 Johnson 6 HP

      July 2, 2026 at 11:08 am #323458
      scratcher
      Participant

        US Member

        Here you go.  The little clip fits in the faceplate provided it is a javelin faceplate.

        1 user thanked author for this post.
        Jeff Barsch
        July 2, 2026 at 11:18 am #323461
        RICHARD A. WHITE
        Participant

          Lifetime Member

          Ok…ya got me, never saw one with that clip…nice

          http://www.richardsoutboardtools.com
          classicomctools@gmail.com

          July 2, 2026 at 11:18 am #323462
          seakaye12
          Participant

            US MEMBER PAY BY CHECK

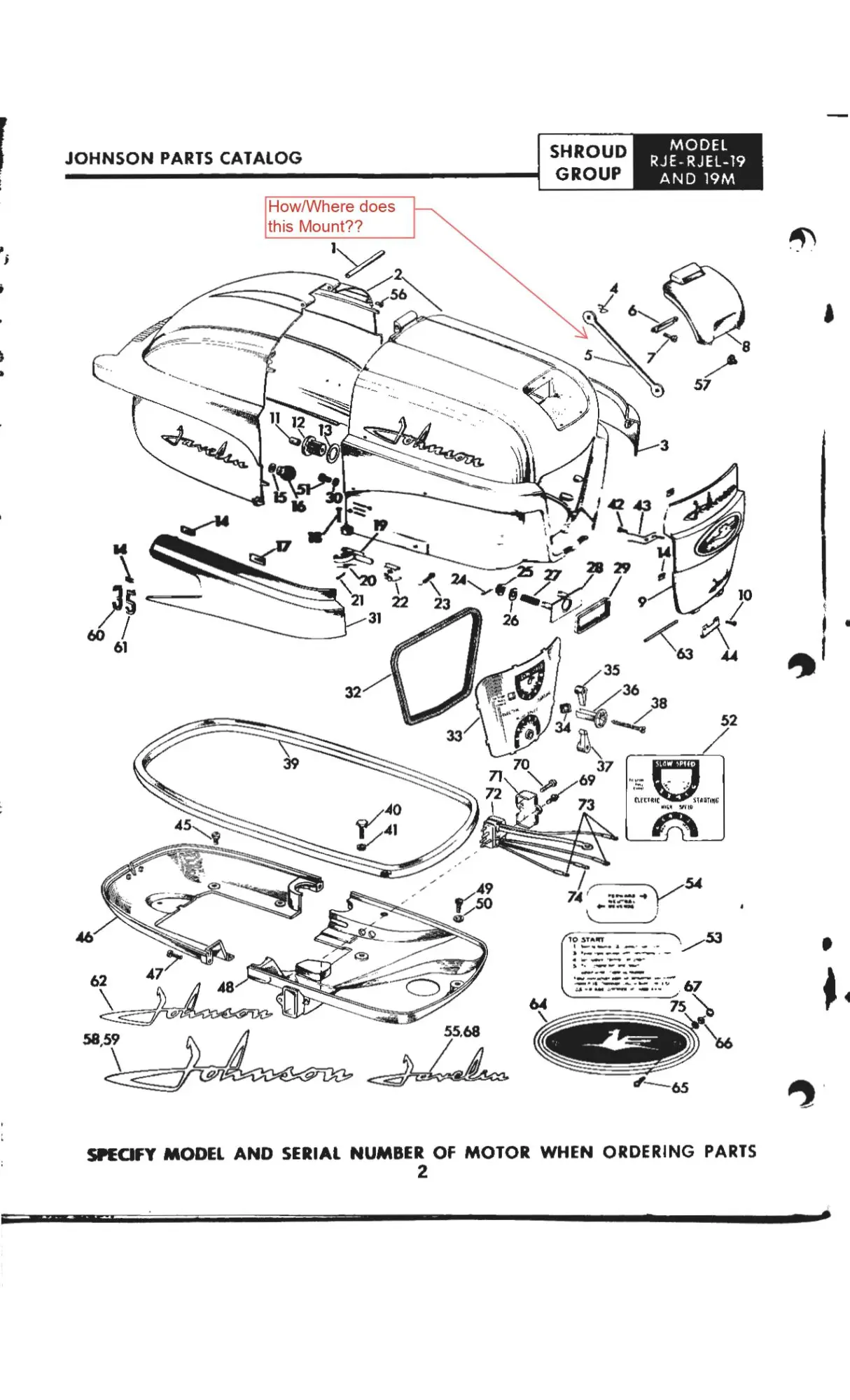

            Here’s the Pic as a jpeg.  PDF’s are downloadable but do not display.1957-Johnson-Javelin-Safety-Strap_5_page-0001

            July 2, 2026 at 12:45 pm #323473
            Jeff Barsch
            Participant

              US Member

              Scratcher, Thank you! Thank you! Thank You!  I stared at this again last night and still couldn’t figure it out.  Those Pictures finally make it clear!!

              Seakaye12 thank you for clarifying about how the site treats pdf’s and JPGS,.

              I think I’m finally ready for this weekend!



              Happy 250th to everyone!

              1954 Evinrude 7.5 HP
              1954 Evinrude 15 HP
              1954 Gale 12 HP
              1955 Johnson 10 HP
              1956 Johnson 10 HP
              1956 Gale 12 HP
              1956 Evinrude 5.5 HP
              1957 Johnson Golden Javelin 35
              1958 Johnson 7.5
              1960 Evinrude 18 HP
              1973 Johnson 6 HP
