Topic: 1958 10 hp evenrude – Antique Outboard Motor Club,Inc

This topic has 14 replies, 7 voices, and was last updated 5 years, 4 months ago by outbdnut2.

Viewing 10 posts - 1 through 10 (of 15 total)

1 2 →

Author

Posts
December 20, 2018 at 12:13 pm #160789
benji41
Participant
US Member
Will a steering bracket for a 1957 10 hp evinrude fit a 1958 10 hp evinrude.

Jim Benjamin
December 20, 2018 at 12:21 pm #160792
Mumbles
Participant
Yes, it sure will!
December 20, 2018 at 9:18 pm #160835
fleetwin
Participant
US Member - 2 Years
Will it fit?? The 57 10hp is based off the 18hp midsection, the 58 10hp is based off the 5.5/7.5 midsection….It might fit, but you better check the numbers first….
December 20, 2018 at 11:56 pm #160849
garry-in-michigan
Participant
Lifetime Member
Yes it will fit – honest . . .
December 23, 2018 at 6:58 am #161029
fleetwin
Participant
US Member - 2 Years

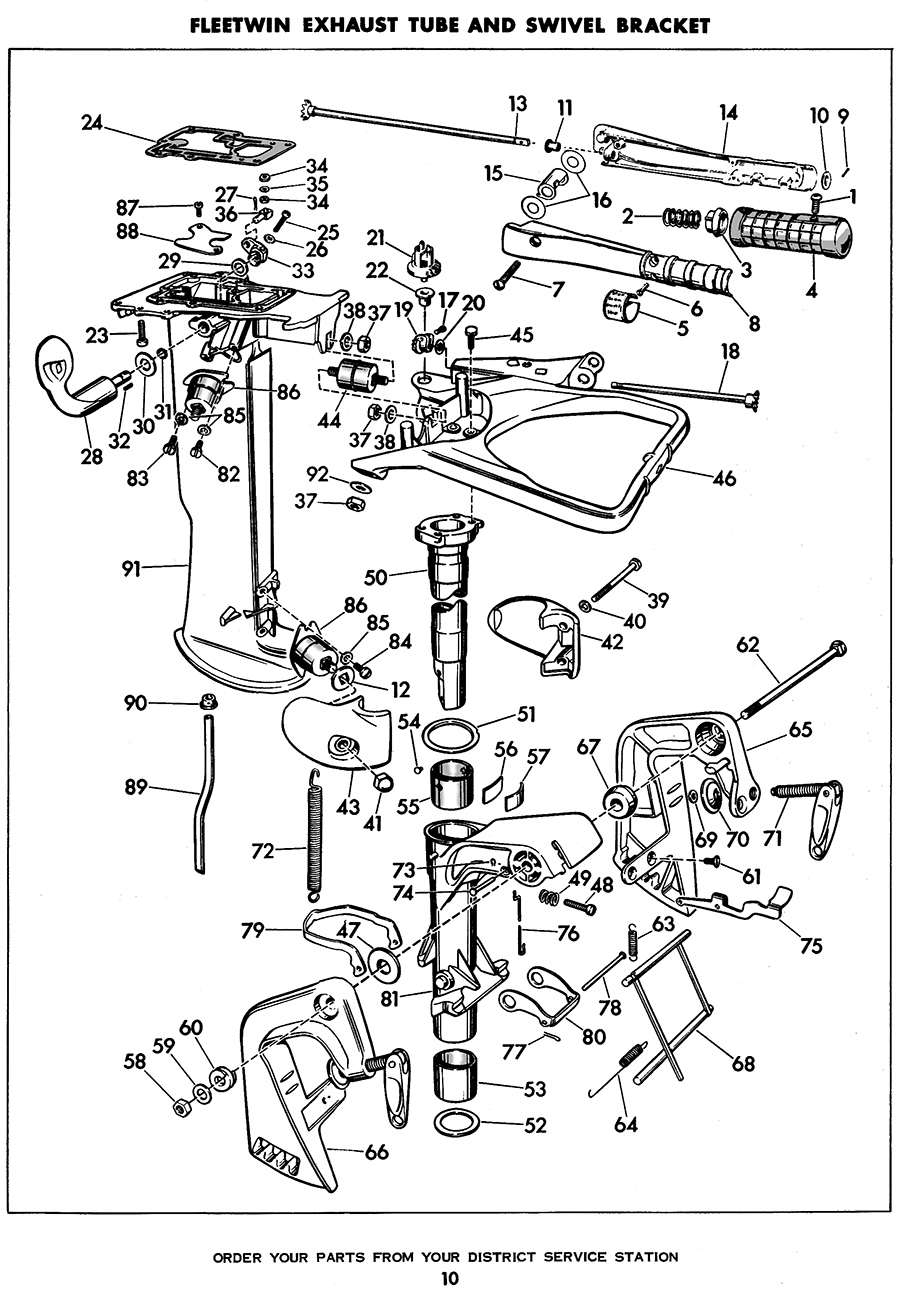

OK, maybe I am confused….By steering bracket, I am assuming you mean #46….Let me know if this is not the part you are asking about…
The 57 10hp uses the larger 18hp midsection, yes?
The 58 10hp uses the smaller 5.5/7.5 midsection, correct?

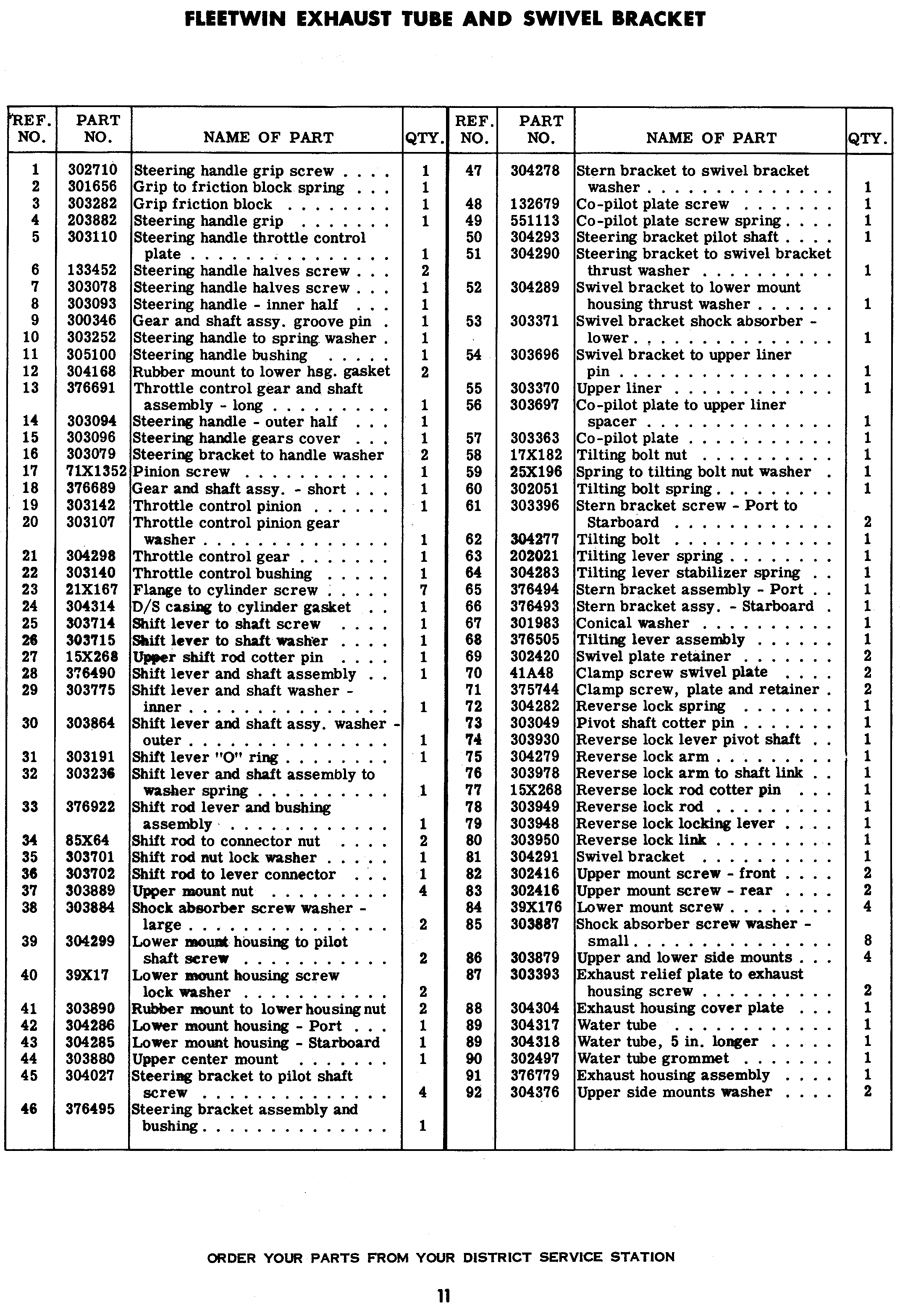

The parts book calls out two different “steering bracket/handles” for these two units….
What am I missing/misunderstanding???
376837 for the larger midsection
377277 for the smaller midsection
Again, not trying to question, just trying to understand…..D
December 23, 2018 at 9:50 am #161073
frankr
Participant
US Member
Without having the parts if front of me, I share the same doubts expressed by fleetwin’s above post. But it wouldn’t be the first time I screwed up.
December 23, 2018 at 5:00 pm #161106
benji41
Participant
US Member
thanks to all who replied. I looked up the 58 and it does show part # 377277 so yes I need to check the 57 as Gary has always gave me straight and correct answers.

Jim Benjamin
December 23, 2018 at 7:44 pm #161116
garry-in-michigan
Participant
Lifetime Member
May bee I gave you a bad cow (Bum steer) – The number 46 steering handle support bracket IS different. The steering bracket that plugs into it is the same. . .
- This reply was modified 5 years, 4 months ago by garry-in-michigan.
- This reply was modified 5 years, 4 months ago by garry-in-michigan.
- This reply was modified 5 years, 4 months ago by garry-in-michigan.
December 23, 2018 at 7:48 pm #161117
fleetwin
Participant
US Member - 2 Years
Terminology can be confusing for sure….
December 24, 2018 at 11:29 am #161185
benji41
Participant
US Member
Gary—- You are saying the # 46 item is the one for a 1958 10 hp Evinrude (10016) Part # 376495.

Jim Benjamin
