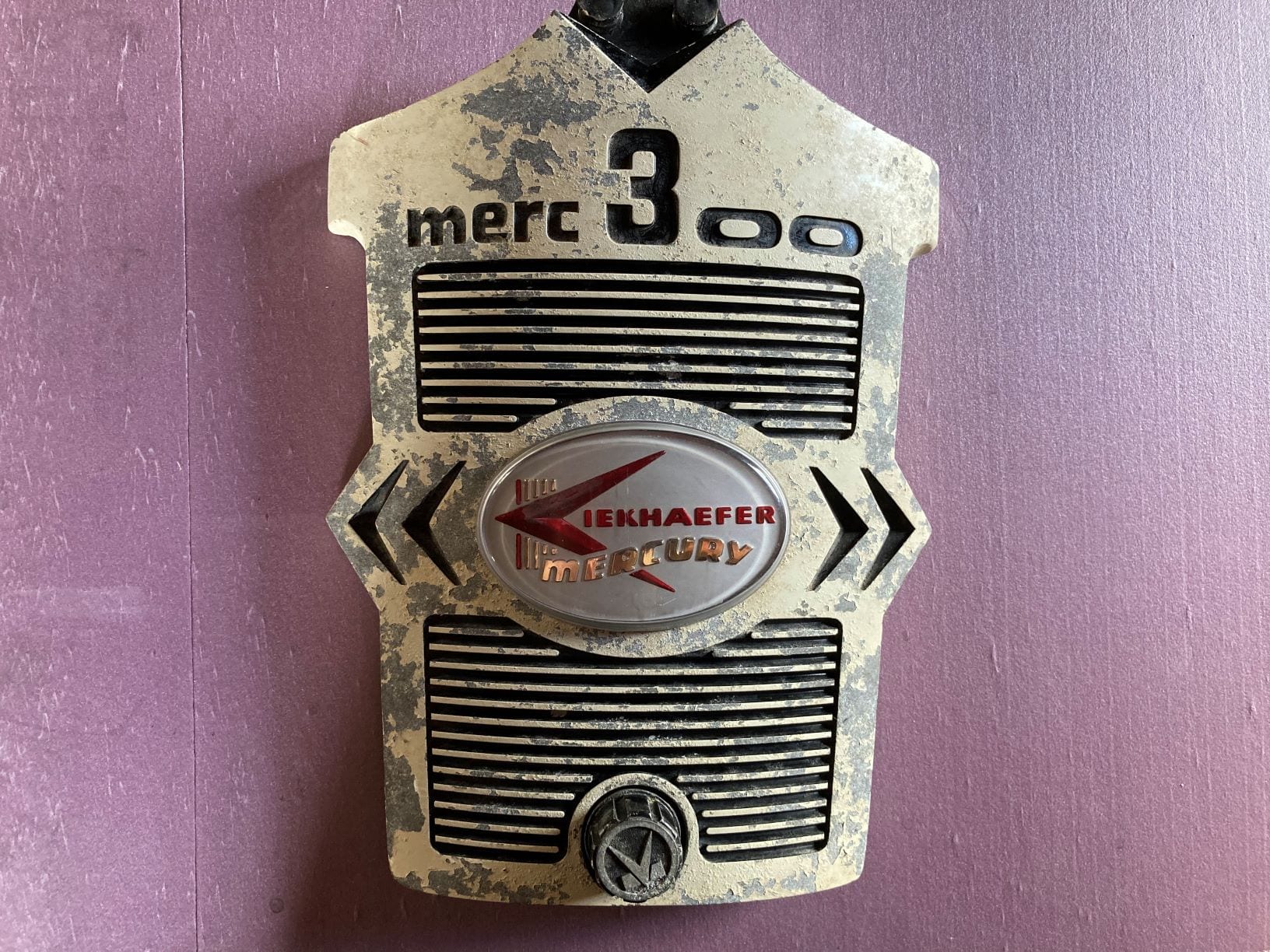

    I have rebuilt (with great help) a 1960 Merc 300 (35 hp) that is now running great after sitting unused for most of the time since it was produced. Much of the paint (Cloud white) is pretty good, except for the cowling front cover. How was this painted originally by Mercury, and what is the best way to paint it now?

    IMG_1721

    Attachments:

    billw

    US Member - 2 Years
    Replies: 1610
    Topics: 48
    #221556

    I’m waiting to see if somebody answers this, too. I wonder how it was done at the factory? My guess is some kind of stiff roller?

    Man, that is a nice emblem!

    Long live American manufacturing!


    crosbyman

    Canada Member - 2 Years
    Replies: 2345
    Topics: 240
    #221558

    well…. here is what I would do..presumably on a aluminum face plate

    1- strip-remove all white/beige paint to bare metal
    2- mask off the center zone to protect the logo !!!
    3- clean/polish/sand the top & lower black bar areas with folded 120-150 grain paper as much as possible
    4- mask out the “inside portions” of the top printed MERC 300 black lettering , lower knob & << >> zones
    5- Prime with yellow Chromate paint over bare aluminum sections
    6 -mask out the white sections now primed yellow
    7- Spray paint the face plate top/bottom horizontal bars section with with appropriate black matching color……. then surface sand away the horizontal bar top surfaces then reprime with yellow chromate with a pad
    8- mask out the top – bottom horizontal bars now reprimed yellow on top paint with Mercury black in the cracks
    9- unmask the white sections (made yellow from the primer coat) …..spray paint with appropriate Mercury white
    10- unmask the top & bottom horizontal bar sections and carefully apply white coat with a foam pad on the top of the bar surfaces
    11- unmask the MERC 300 , <<…>> & and knob & and paint black with a small brush

    it is pretty early so take a look at it…. if not ok with you … adjust accordingly… with my limited tools, that is basically how I would proceed (spray cans only for me)

    Joining AOMCI has priviledges 🙂

    • This reply was modified 1 year ago by crosbyman.

    The Boat House


    Replies: 3619
    Topics: 91
    #221575

    You're only as smart as the person you're talking to.


    crosbyman

    Canada Member - 2 Years
    Replies: 2345
    Topics: 240
    #221582

    Mark . send your Merc plate to Tubs 🙂 🙂 then you will only have the rest of the motor to worry about 🙂

    Joining AOMCI has priviledges 🙂

    • This reply was modified 1 year ago by crosbyman.

    jeff-register


    Replies: 1281
    Topics: 49
    #221585

    Tubs,
    Is that original lower mounting one quarter turn hardware. If so nice clean up! You have the pin tool?


    billw

    US Member - 2 Years
    Replies: 1610
    Topics: 48
    #221595

    Mark . send your Merc plate to Tubs 🙂 🙂 then you will only have the rest of the motor to worry about 🙂

    • This reply was modified 1 year ago by crosbyman.

    I don’t have a motor that has that problem….But SOMEDAY, i might! That’s why I want to know. I am not to OP here, though…So, yes, Tubs…please DO remember how you did that gorgeous tank band! Can I send you a bottle of Prevagen or something? (-:

    Long live American manufacturing!

    • This reply was modified 1 year ago by billw.

    The Boat House


    Replies: 3619
    Topics: 91
    #221630

    Tubs,
    Is that original lower mounting one quarter turn hardware. If so nice clean up! You have the pin tool?

    You're only as smart as the person you're talking to.
