September 5, 2019 at 10:08 am #182673
I know I should have checked before I disassembled the motor but I didn’t. So what is proper orientation of the plug wires. Currently I have the two leads from the rear coil to top cylinders (left to left right to right) and closest coil leads to bottom cylinders (left to left right to right) I accidentally touched a plug when cranking and it’s for sure getting fire to that one! ALSO another question …….. the carb has a primer pump and it appears to be similar to a TN 28. Does this pump also have leather seals? And are they different or the same as the TN 28?
It's a jungle out there.
September 5, 2019 at 9:30 pm #182715the primer does not have leather washers, just a brass cup in a brass sleeve. as for wiring, check which points open against which pistons are topping out, and that coil should be firing.
September 6, 2019 at 8:33 pm #182799I hate to disagree but……a pictures worth a hundred words. The pump was working fine (on this one- a temporary donor) but engine wouldn’t run on its own power. If I manually used the primer stem and pumped gas to the carb out of the tank it was running great. So I tore this one down for cleaning now the next question , on the side of primer pump there’s a small brass fitting that has a line that runs to face of carb, now that it’s apart I can’t get carb cleaner to run thru either side of this fitting , still trying
It's a jungle out there.
September 6, 2019 at 11:09 pm #182809September 6, 2019 at 11:25 pm #182811I kept depressing the spring and spraying from opposite sides till whatever it was jarred loose. What about the one single ball bearing that fell out any idea where it goes?
It's a jungle out there.
September 6, 2019 at 11:51 pm #182813- This reply was modified 4 years, 7 months ago by The Boat House.
September 7, 2019 at 7:41 pm #182869Tubs, I couldn’t make heads or tails of your first post til I looked back at the picture. That spring (which I never knew was laying there and thought it lost) held the little bb bearing ball against the idle screw for tension. The check seems to work ok cuz it’s pumping fuel from the bowl to the face of carb via the primer pump. I can start the motor but then I can ONLY keep it running by pumping the primer. (Ran it for like 10 seconds like this and REALLY smooth at certain points) so that tells me I’m not getting fuel thru the carb to keep it running , it also sneezes and carry’s on if I don’t pump fast enough. I’ve sprayed everything I can see to spray. I’ve heard about running fine wire thru orffices but don’t see how in the world to access all of them. Wish I had a cut sheet of this particular carb so I could understand the flow better. Gonna take it off again and clean some,more. I’m really anxious to get this thing purring like I believe it will
It's a jungle out there.
September 7, 2019 at 9:58 pm #182873September 8, 2019 at 12:18 pm #182898I put it back together last nite and went out this morning (with the grandkids 4 and 2 so most attention was on them) it started, (seemed to take more pulls) and it ran on its own for much longer than usual. I did some touch up to the paint so I’m gonna let it dry completely and get back out tonite maybe and see if it’ll stir some water. BTW when I tore into it last nite I removed the brass plug that gives access to the two carb throat pinholes and also another chamber. Had to stick the nozzle all the way down into that little chamber and spray the heck out of it to get carb cleaner to pass thru but it finally did so time will tell
It's a jungle out there.
September 8, 2019 at 5:04 pm #182906That carburetor was also used on the Elto Fleetwin. [/color]

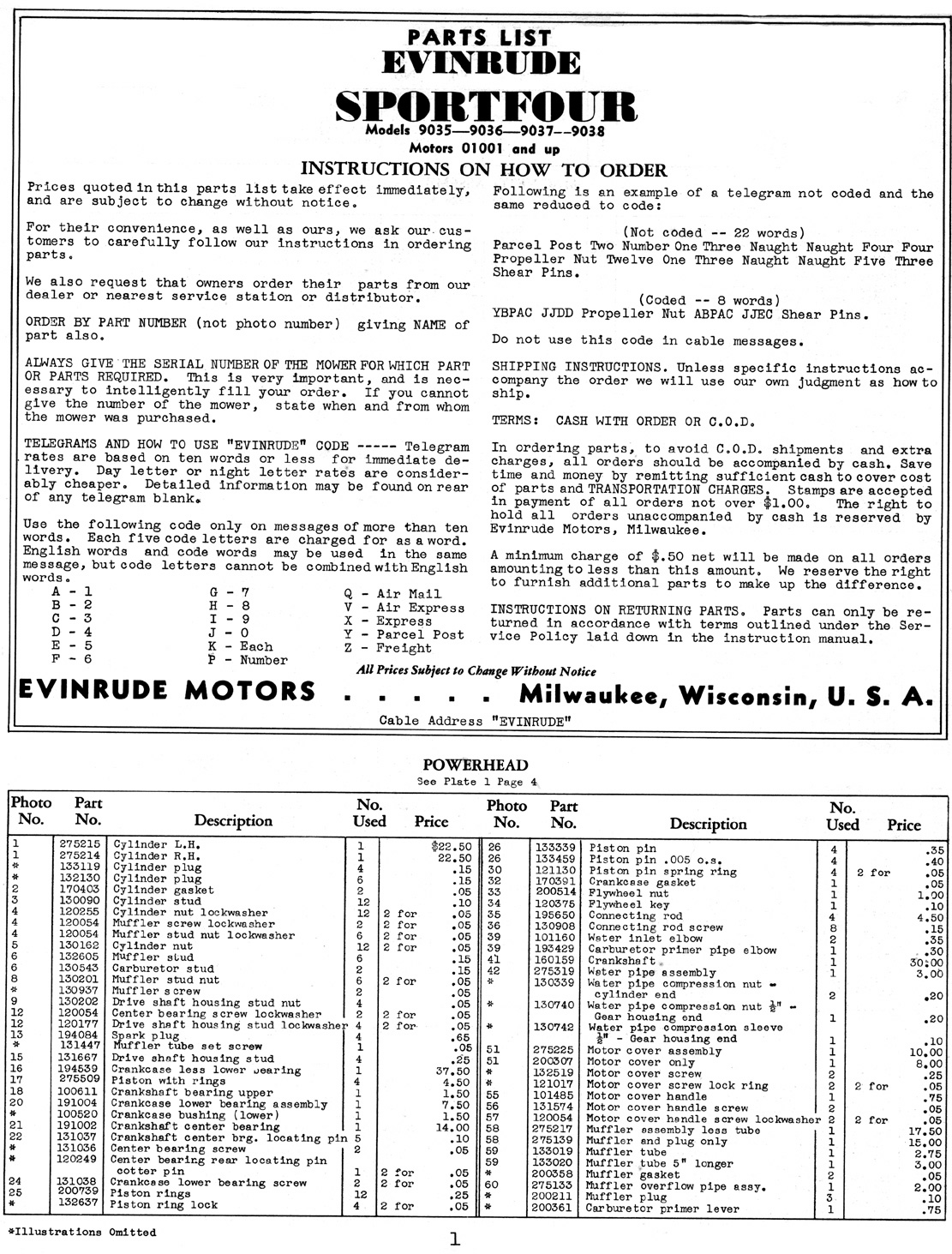

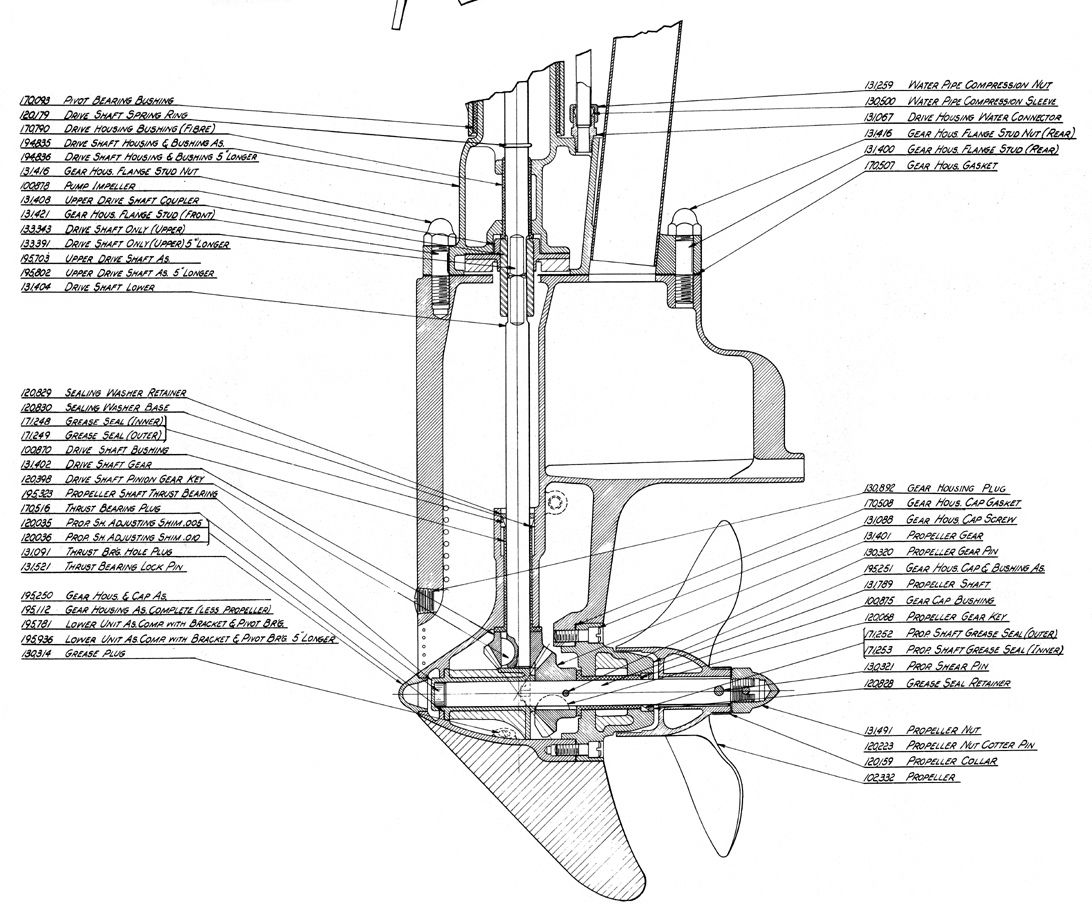

Unfortunately much has been lost through the life of the internet trusting sitespromising to keep your content safe while the fine print no one reads says anything that goes wrong is your fault. the is what I find left of my Sportfour page . . .
-
