Home Forum Ask A Member 4404 complete parts diagram

Viewing 10 posts - 1 through 10 (of 16 total)
  • Author
    Posts
  • #6728
    jerryrob1955
    Participant

      US Member - 1 Year (includes $3 online payment fee)

      Can anyone share a complete parts diagram for a 4404 evinrude zephyr?

      #55985
      frankr
      Participant

        US Member - 1 Year (includes $3 online payment fee)

        Garry just did, on your other thread. Except wrong years. I’m not smart enough to know the differences, if any.

        #55992
        jerryrob1955
        Participant

          US Member - 1 Year (includes $3 online payment fee)

          I’ve got the one u sent.Someone had about 10 pages of the hole assemble yesterday on here. was going to run copy today and lost it on do no what web ❓

          #55993
          jerryrob1955
          Participant

            US Member - 1 Year (includes $3 online payment fee)

            I.ve got that one. thanks ,it must be call a assemble diagram. Someone had it on here yesterday and I don’t no where it was. now cant pull it up. I could not believe how detail it was.

            #56011
            jerryrob1955
            Participant

              US Member - 1 Year (includes $3 online payment fee)

              I think the manual I saw was posted under the announcement section of the forum. Is that section updated and changed frequently? Maybe it could be posted again.

              #56013
              Buccaneer
              Participant

                US Member - 1 Year (includes $3 online payment fee)

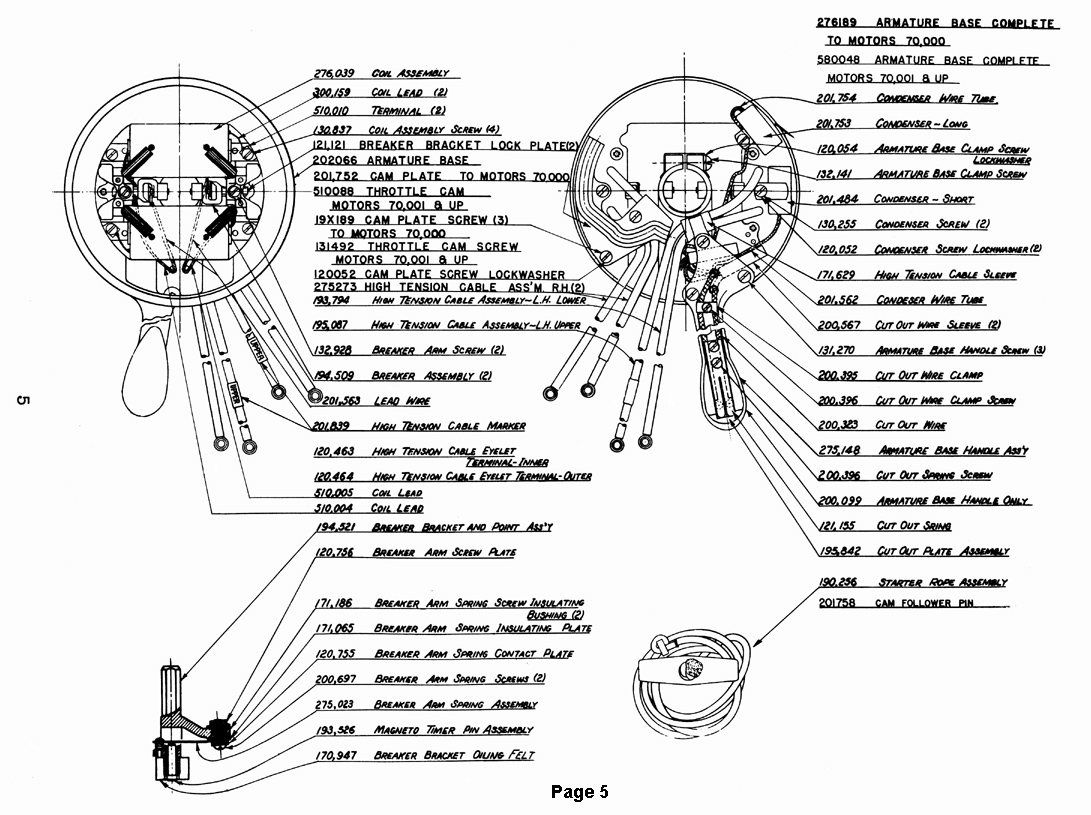

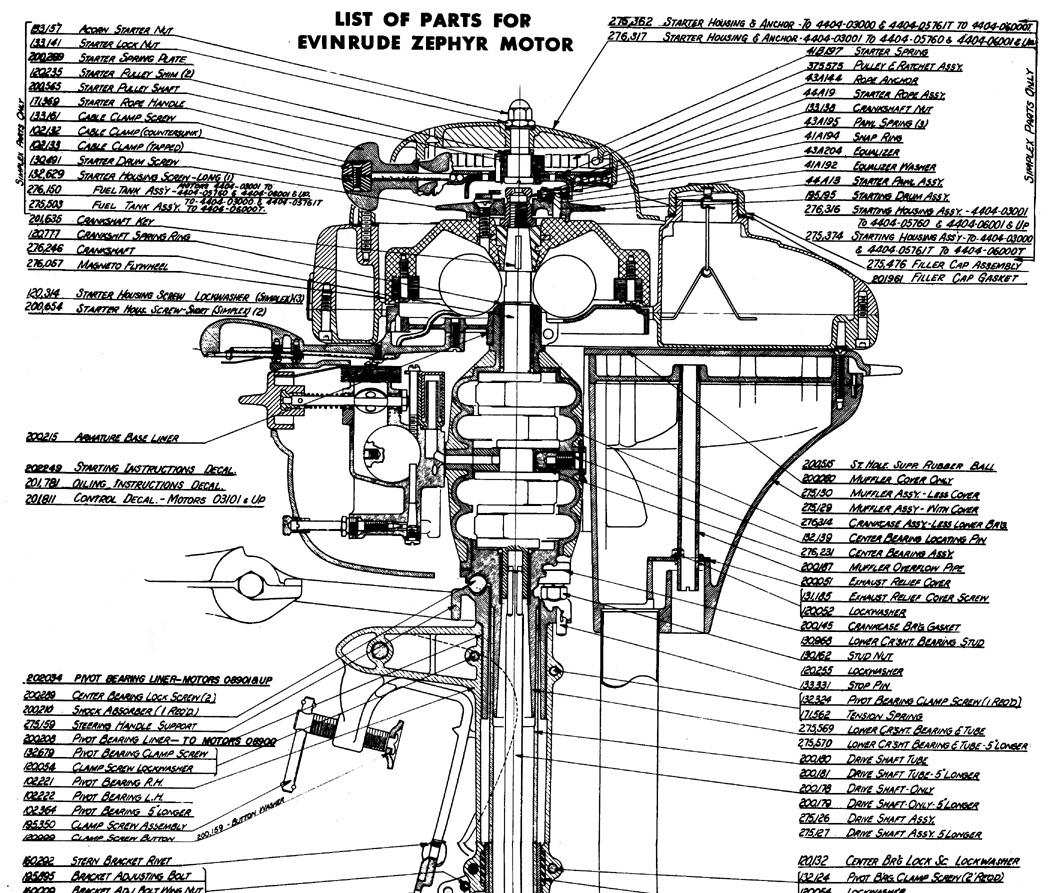

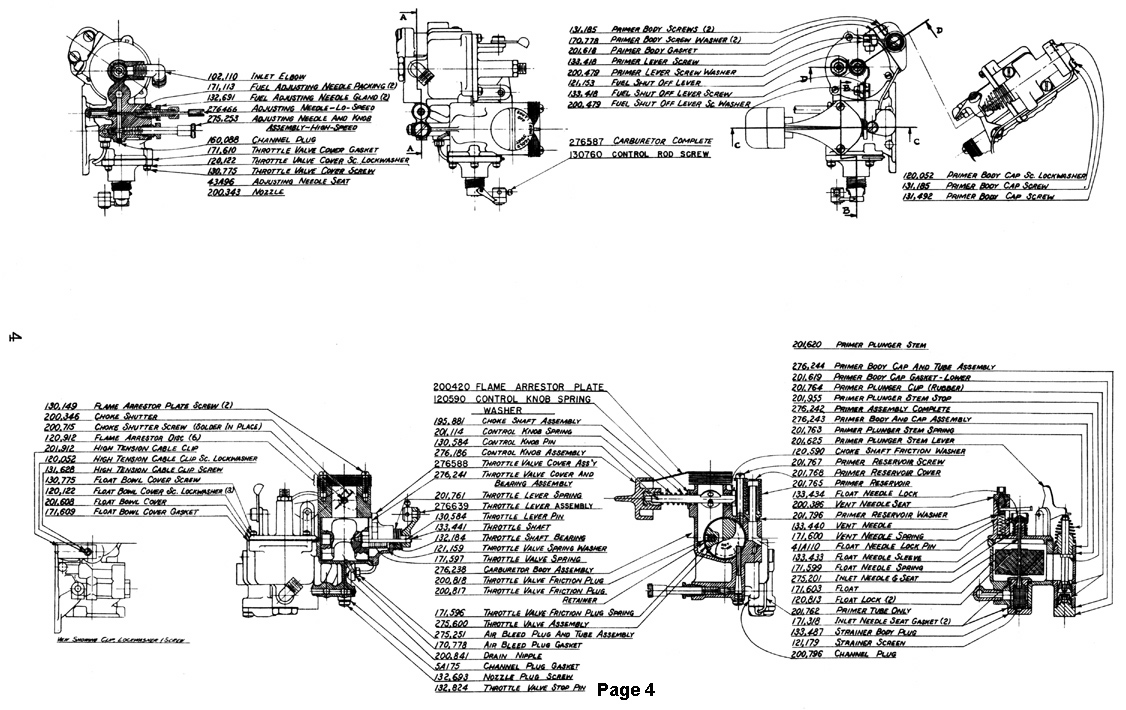

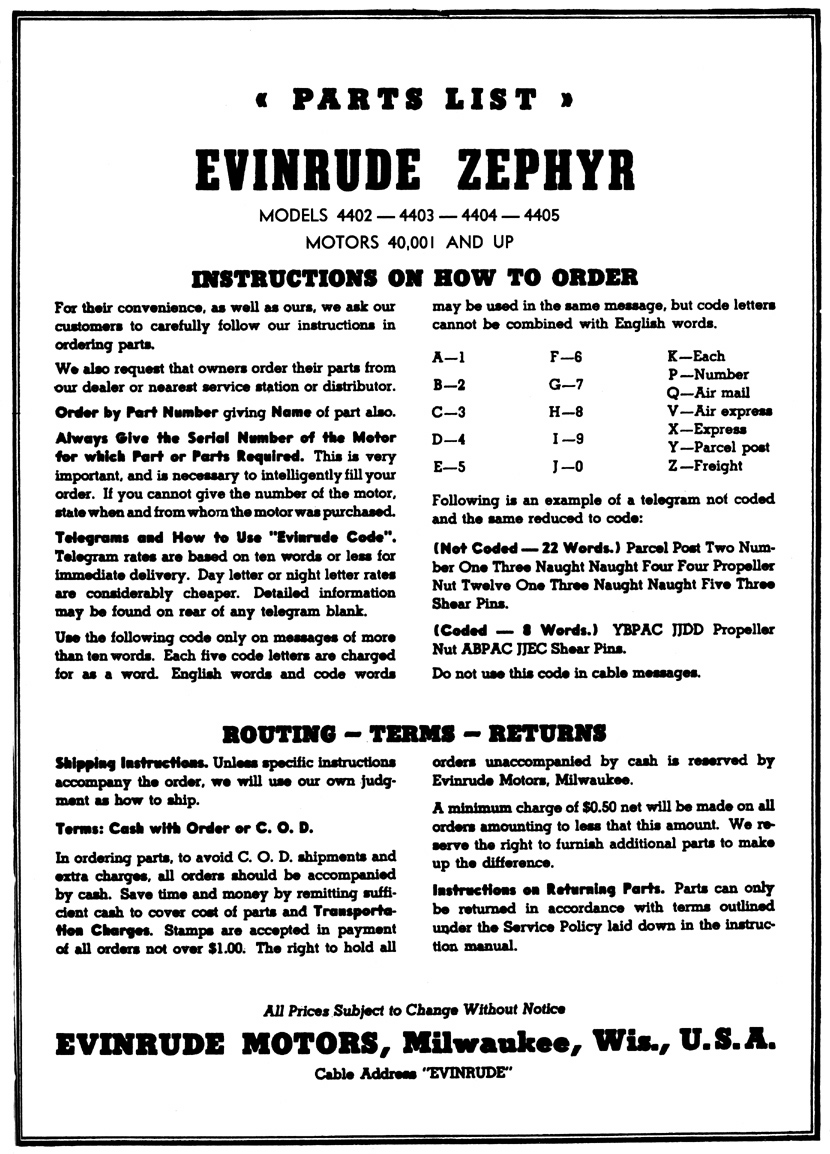

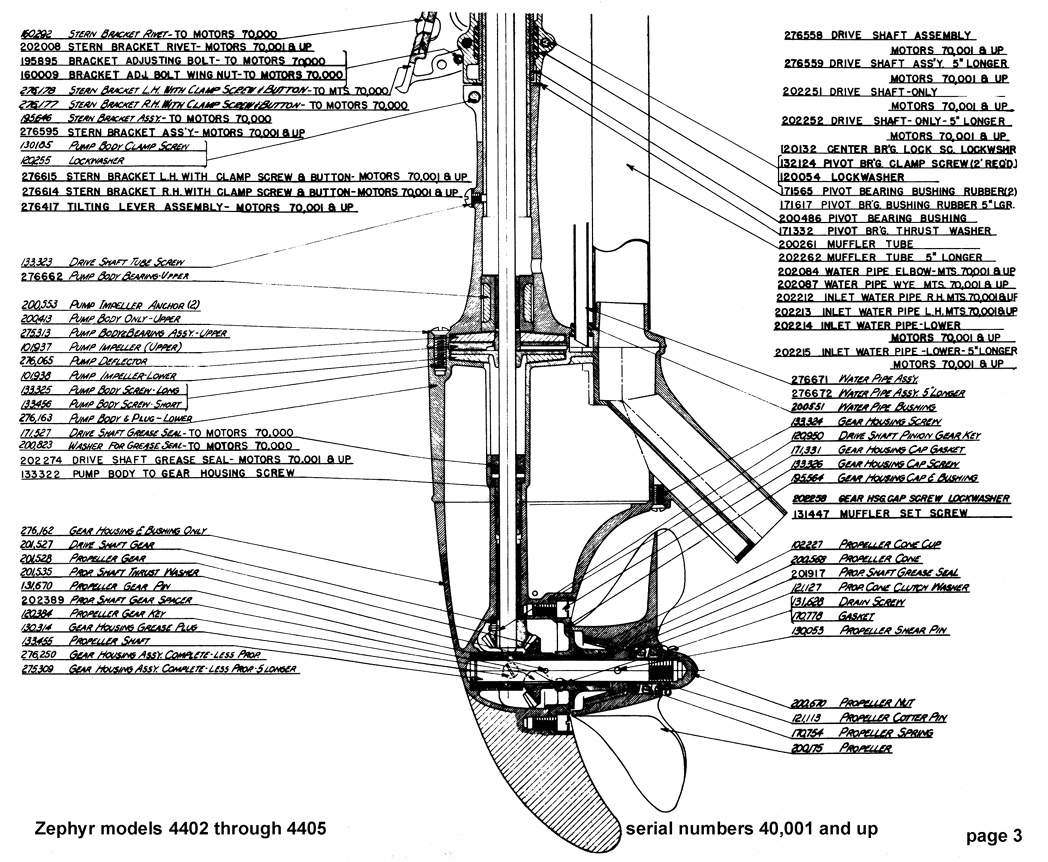

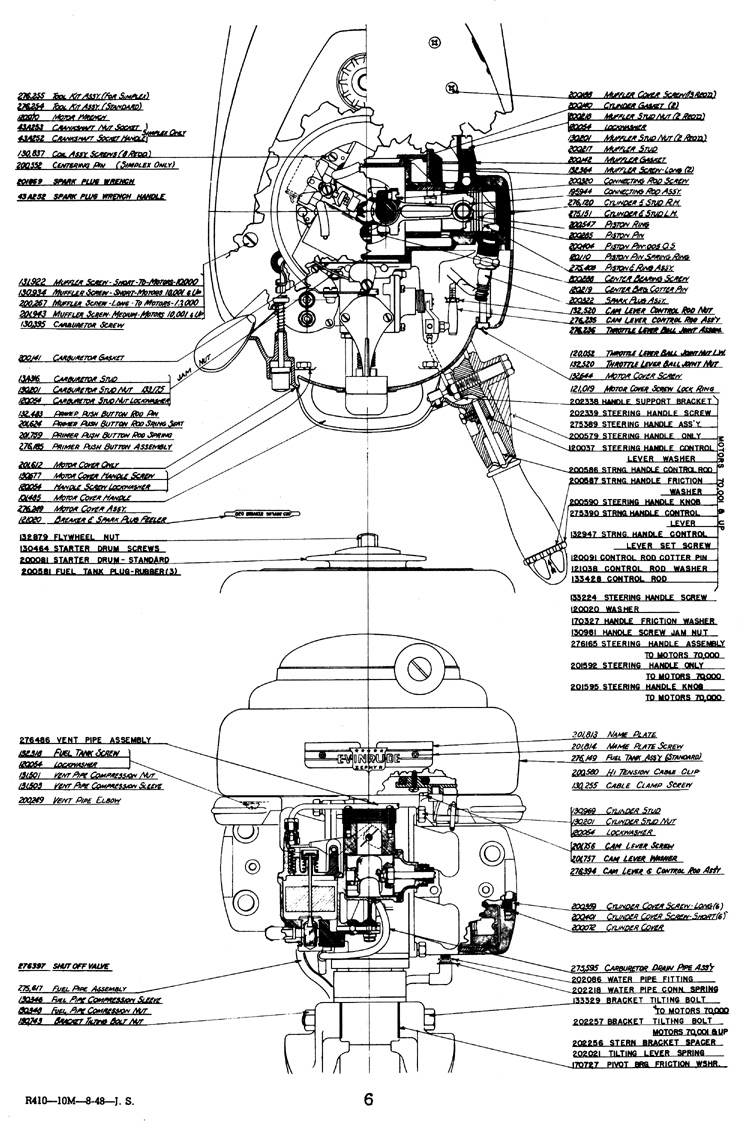

                I have these…..


                Attachments:

                Prepare to be boarded!

                #56021
                garry-in-michigan
                Participant

                  Lifetime Member

                  Not seeing a primer on the carburetor fooled me. The 4404 also has a cam on the bottom of the magneto plate that synchronizes the spark advance and throttle. . . 😳

                  #56055
                  jerryrob1955
                  Participant

                    US Member - 1 Year (includes $3 online payment fee)

                    Appreciate that! I’ll try to post pics from the other manual that I briefly saw onlinesoon.

                    #56063
                    garry-in-michigan
                    Participant

                      Lifetime Member

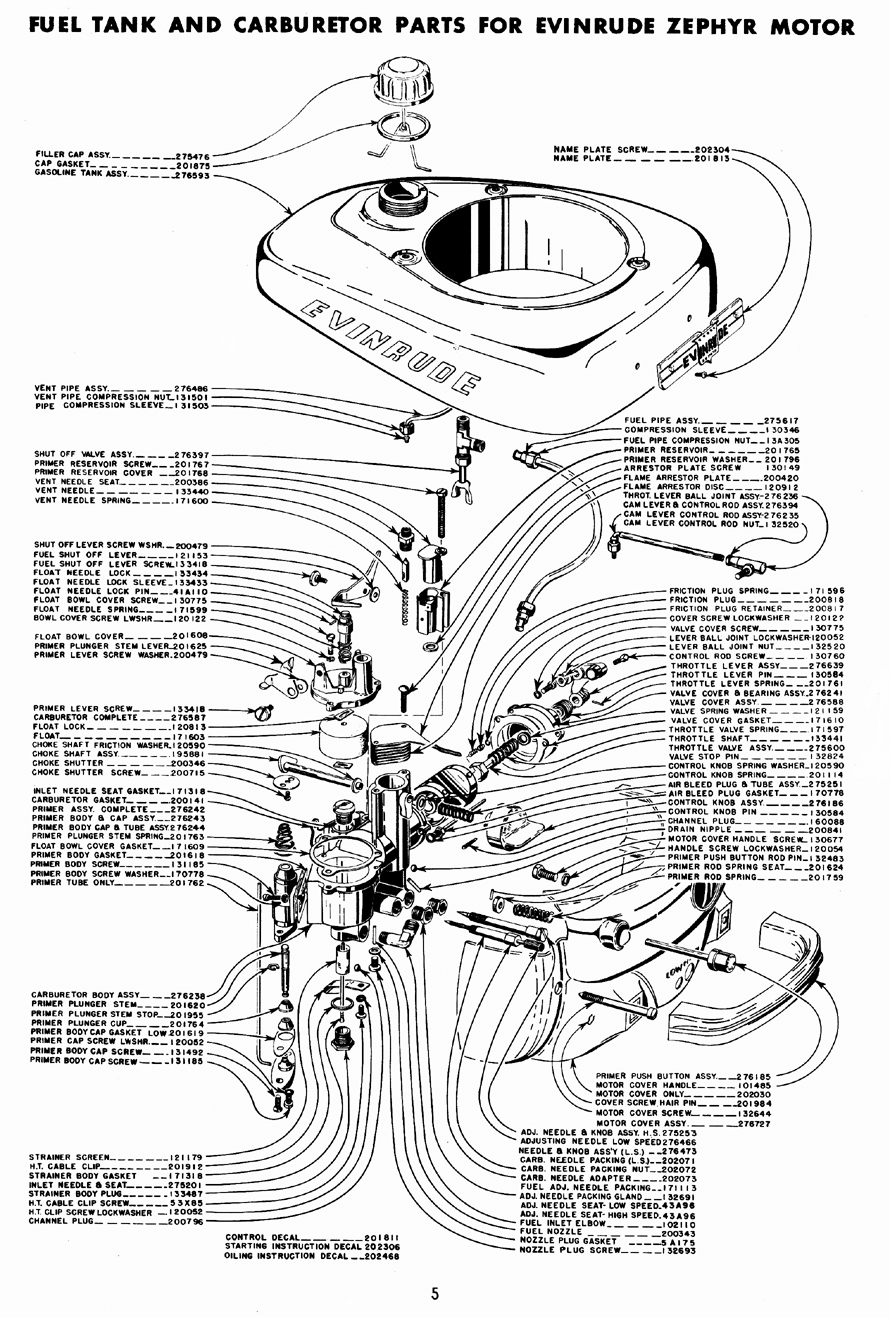

                      They did an "exploded’ view the following (and last) year of production. . . 🙄


                      #56109
                      jerryrob1955
                      Participant

                        US Member - 1 Year (includes $3 online payment fee)

                        That’s exactly what I am looking for! Sure do appreciate it. Do you have any idea of a source for me to buy the whole manual that contains those pages? I saw it once online but haven’t been able to find it again. Thanks for taking the time to post those pages.
