  • May 21, 2019 at 5:28 pm #175711
    Mumbles
    Participant

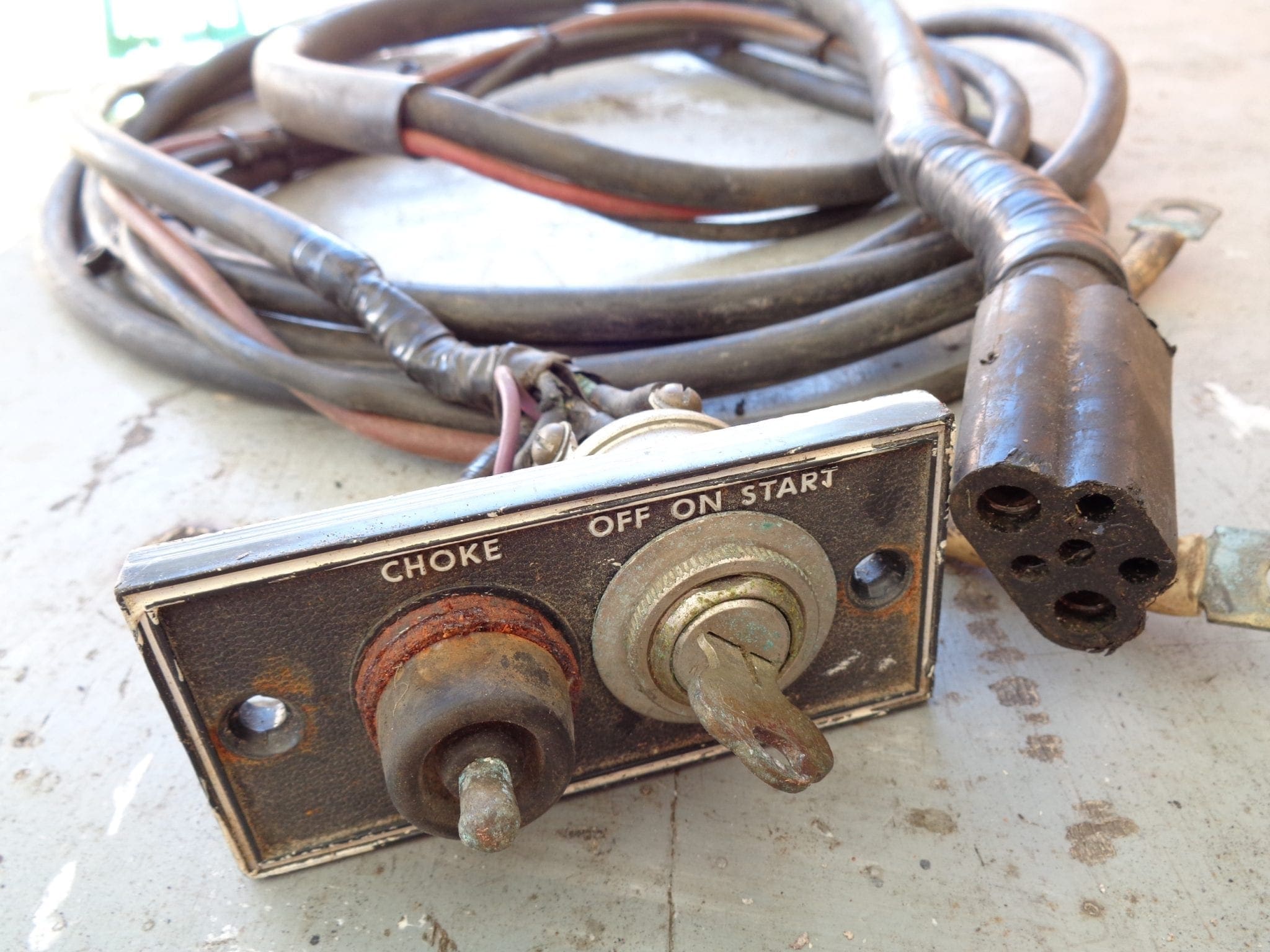

      Maybe you can adapt a harness from a later model motor to your ’57? The boat side harness aren’t that easy to find but they are out there. This ’73 harness was given to me the other day along with the 25 horse motor it plugs in to. Gotta like that!

      DSC00036

      May 22, 2019 at 3:16 pm #175784
      fisherman6
      Participant

        US Member - 2 Years
        balbers wrote:

        Thanks!…..my model year is ‘57 but the cable they show is only 3 wire, my plug has 5 conductors….must be cable they show a# fi4 ‘58 on up?…..oh, ouch $275 for the cable!…..any more affordable options?

        The 57 model harness is only a 3-wire harness because there was no kill circuit. the 58-up harness has 5 wires (2 more for kill circuit). If your motor has the 5-wire harness the harness at least is from a 58-up motor.

        Either way those harnesses are quite expensive as you have found out. I would be inclined to build my own also if I didn’t own one. I have one harness and two motors to use it with.
        -Ben

        OldJohnnyRude on YouTube

        May 24, 2019 at 8:36 am #175873
        wbeaton
        Participant

          Canada Member - 2 Years

          The wiring harness at nymarine is handmade and excellent quality. While it may seem expensive it is the only new harness available and it matches the original exactly. It won’t look like some hobbled up homemade affair.

          Wayne
          Upper Canada Chapter

          uccaomci.com

          May 30, 2019 at 7:45 pm #176405
          balbers
          Participant

            Thanks everyone!….Motor is indeed a ‘58 with 5 wire connector …..not a ‘57……I’m gonna continue to hunt for an original connector…..if can’t locate, I’ll probably bight the bullet and buy the one offered by nymarine……
            As stated, it’s well made and right way to go instead of me hacking something together…..
            Bob
