OMC Pressure Tank I.D.

Home Forum Ask A Member OMC Pressure Tank I.D.

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 9 posts - 1 through 9 (of 9 total)
  • Avatar
    drifter

    US Member - 1 Year
    Replies: 160
    Topics: 107
    #221740

    I recently purchased a Johnson CD-15 along with a pressure tank. The tank is unlike any I have seen in the last 25 years. It appears slightly larger than a 6 gallon tank. The “mechanics” look very similar to the OMC. The primer button is aluminum. The twin line wrapping holders appear to be stamped steel. On each end of the tank near the top are two stamped indentations.
    I saw a post that indicated this is a “type 3” tank.
    What is the approximate dates of manufacture and by whom?
    Thanks

    Avatar
    jeff-register


    Replies: 1254
    Topics: 48
    #221741

    Garry where are you? Help!!!

    frankr
    frankr

    US Member - 1 Year
    Replies: 5499
    Topics: 48
    #221754

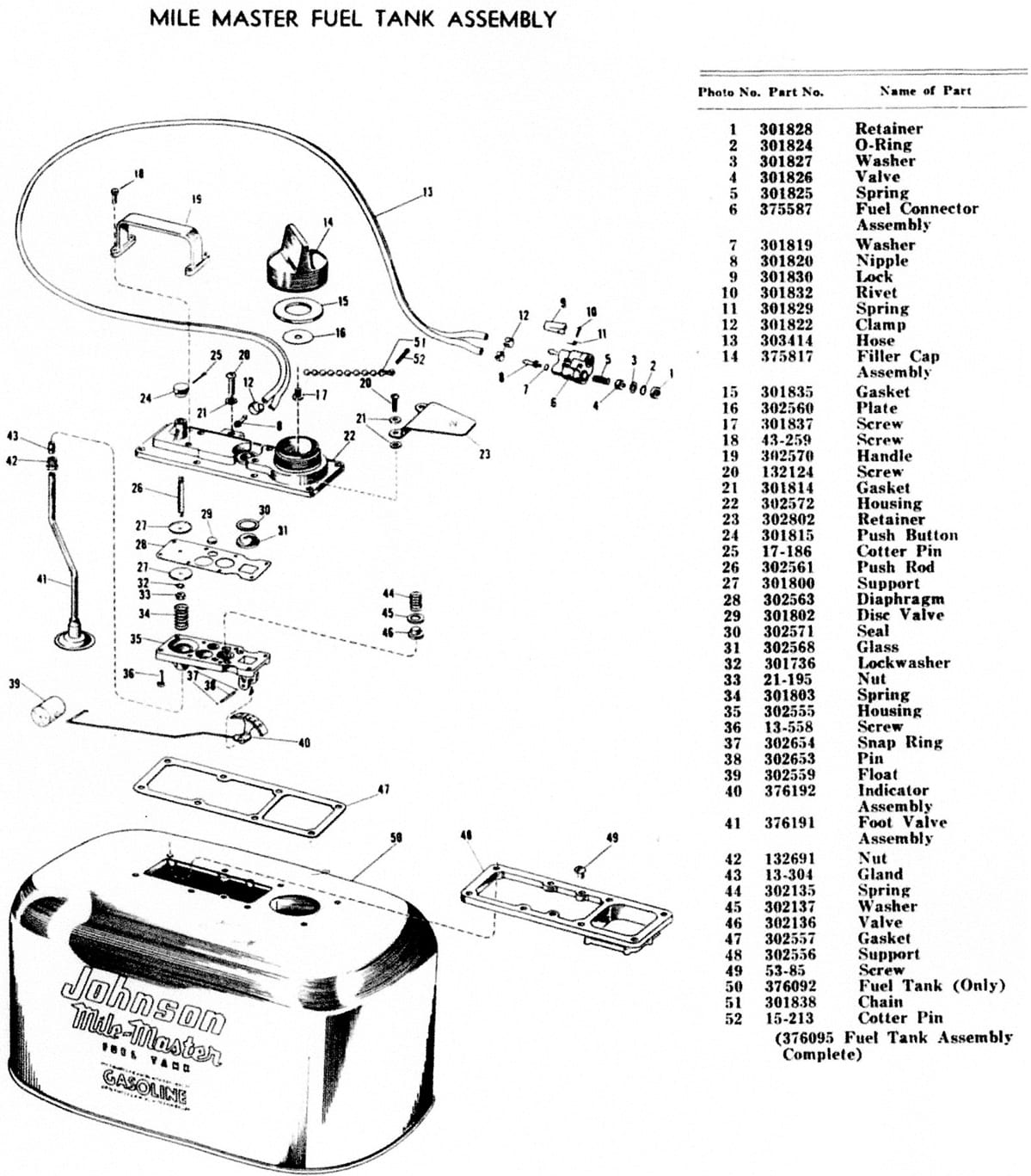

    Sounds like a 1954 Johnson tank. NOTE;, this is parts list for a 4 gallon (CD) tank. 6 gallon is similar except for bigger.

    9.-Fuel-Tank-Group

    • This reply was modified 1 month, 3 weeks ago by frankrfrankr.
    • This reply was modified 1 month, 3 weeks ago by frankrfrankr.
    Attachments:
    labrador-guy
    labrador-guy

    US Member - 2 Years
    Replies: 437
    Topics: 41
    #222519

    drifter, How about some pictures. 49/50 tanks are called tall boys. Does the fuel hose wind inside the top of the tank? The early 25hp tanks were similar to the tall boys but without the steel top where the hose was stored. Pictures are worth a thousand words!

    dale

    Avatar
    jeff-register


    Replies: 1254
    Topics: 48
    #222524

    Dale,
    Had two tall boys at one time till the wife said clean up your mess!!

    Avatar
    aquasonic

    US Member - 2 Years
    Replies: 433
    Topics: 33
    #222528

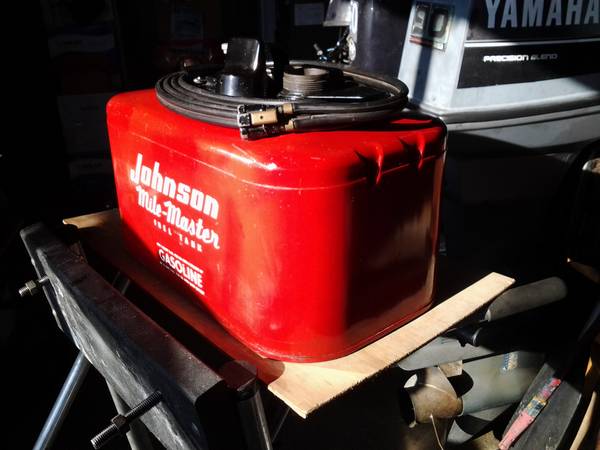

    A three piece OMC “flat top” tank comes to mind. This picture shows the “two stamped indentations” at each end of the tank as described. My best guess on manufacture date is 1951-1952.

    OMC-3-Piece-Flat-Top-Tank

    • This reply was modified 1 month, 3 weeks ago by Avataraquasonic.
    • This reply was modified 1 month, 3 weeks ago by Avataraquasonic.
    Attachments:
    Avatar
    drifter

    US Member - 1 Year
    Replies: 160
    Topics: 107
    #223847

    Aquasonic That is exactly what mine looks like. Thanks

    labrador-guy
    labrador-guy

    US Member - 2 Years
    Replies: 437
    Topics: 41
    #223887

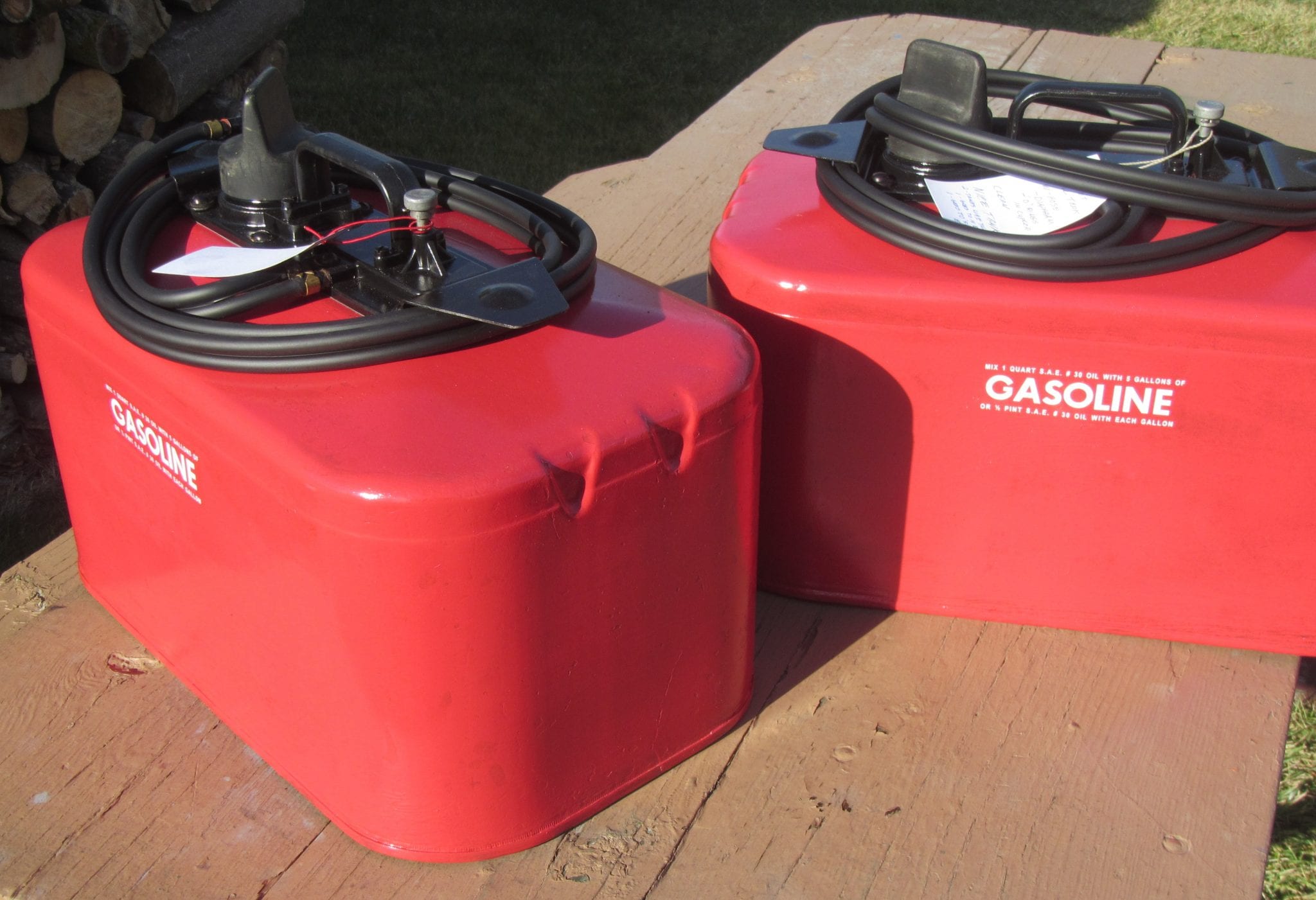

    Drifter, mine are a little different. No chain under the fill cap, and the decal is different. One came with a 1951 25hp Evinrude the other came with a 1952 14hp Evinrude. Probably some more Johnson engineering. Johnson improved outboards immensely during the early fifty’s. IMHO!

    dale

    You’re never to old to learn something stupid!

    IMG_0013

    Attachments:
    Avatar
    drifter

    US Member - 1 Year
    Replies: 160
    Topics: 107
    #223915

    Those are exactly like mine. Just the words “Gasoline” with no Johnson wording. Also, the tank has an internal baffle.
