Topic: 1930 Elto Senior Speedster paint scheme – Antique Outboard Motor Club,Inc

This topic has 15 replies, 4 voices, and was last updated 5 years, 11 months ago by Buccaneer.

Viewing 10 posts - 1 through 10 (of 16 total)

1 2 →

Author

Posts
May 28, 2018 at 4:32 pm #10076
Buccaneer
Participant
US Member
Was anything besides the cylinders painted originally on the subject motor?
I’ve looked at many photos, some look like bare aluminum, some
look like silver paint.
Mine had silver and light gray paint here and there.
Thanks.

Prepare to be boarded!
May 28, 2018 at 5:00 pm #76907
pm-t2
Participant
Canada Member - 2 Years
The casting that bolts to the lower unit is supposed to be black, as is the tiller arm.

I know on the Super C, the muffler ends were painted black but the edges of the ribs were polished.

All other motor parts, including the cylinder, were painted dull aluminum, or silver, if you will. I think you may find that if you wash off motor parts with lacquer thinner, you’ll see the silver paint start showing up in your thinner bath.

I’m not aware of any gray paint being applied to these motors.

The tank was polished with the decal providing the colour splash.

Hope this helps.

best,
PM T2
May 28, 2018 at 5:47 pm #76909
squierka39
Participant
US Member
Hm, now I’ll have to study mine under good light and look for some remnants of black on it. It’s pretty grubby.
May 28, 2018 at 8:01 pm #76913
Buccaneer
Participant
US Member
quote PM T2:

The casting that bolts to the lower unit is supposed to be black, as is the tiller arm.

If I understand, when together, you’d only see the black edge of the casting where it bolts
to the power head, and the swivel tube shell that clamps around it would be silver?

quote :

All other motor parts, including the cylinder, were painted dull aluminum, or silver, if you will.

By saying "motor parts", are you including the lower unit?

There was no hint of black on the tiller that that I could see when sandblasting,
unless you’re talking about the four inch metal pipe sticking out of the end.
It was all rusty, and I had to destroy it to get it out of the tiller handle.

Did they have rubber grips on the tillers back in 1930? Seen photos of other’s
with them, but not sure if original.

I know the slot in the tiller handle was mentioned in someone’s Speedster thread,
but what was it for again, and any photos of it installed?

Much appreciated.

Prepare to be boarded!
May 28, 2018 at 9:18 pm #76919
pm-t2
Participant
Canada Member - 2 Years
The tiller handle paint, I have to look into more in-depth. Seems to me that the short version handle wasn’t black but the longer one was.

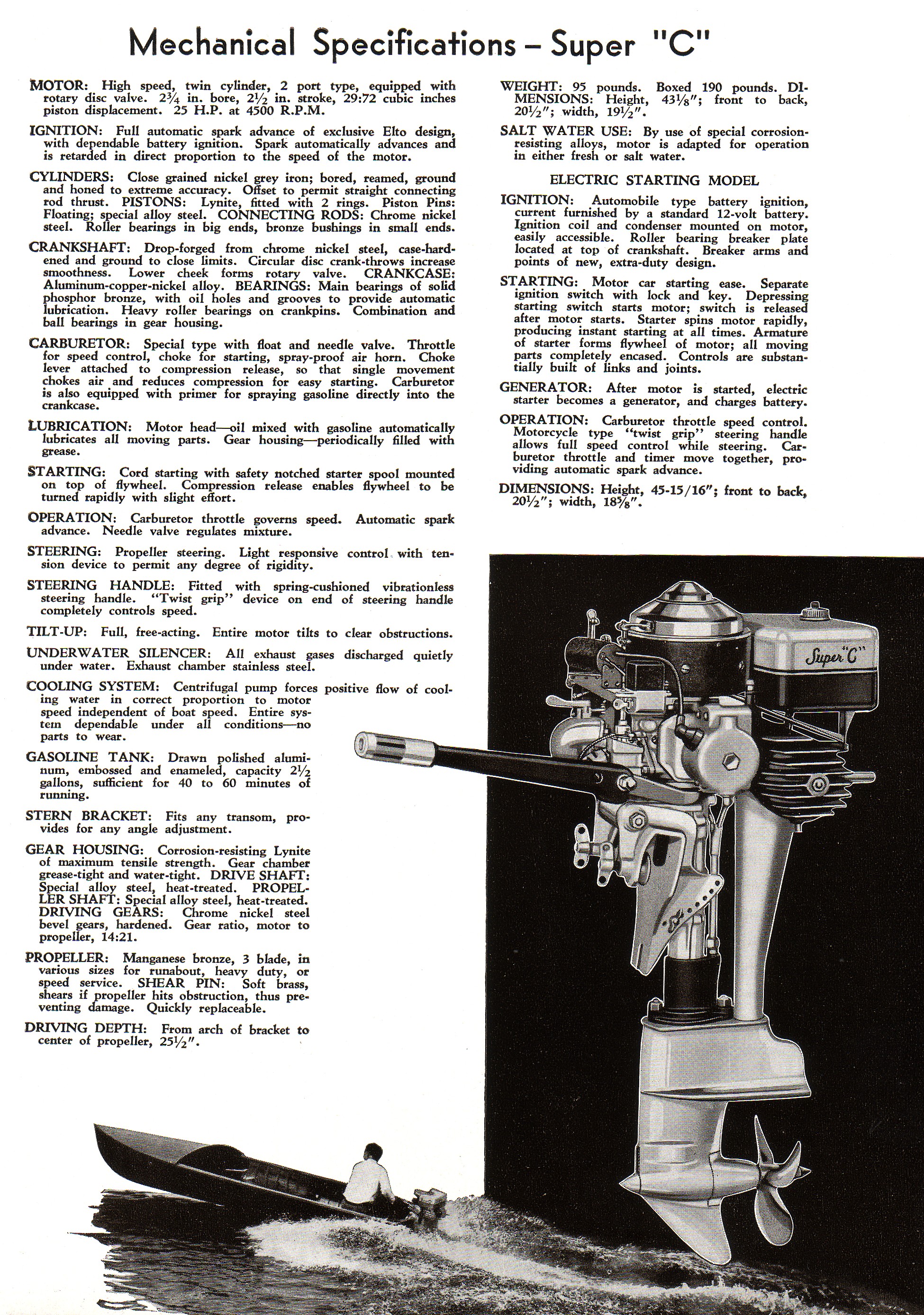

For comparison, here’s the Super C, and FWIW the illustration is an accurate depiction of what the stock motor should look like, albiet in B&W.

The Elto’s of 1930-31 did not use any rubber grips on the tiller arm.

The sliding part on the tiller handle you’re referring to is to advance the timing on the Sr Speedster. It was only installed on the electric-start model 311.

Hope it helps.

Best,
PM T2
May 28, 2018 at 9:47 pm #76921
Buccaneer
Participant
US Member
Glad to hear I don’t need a rubber grip. I see in your photos the

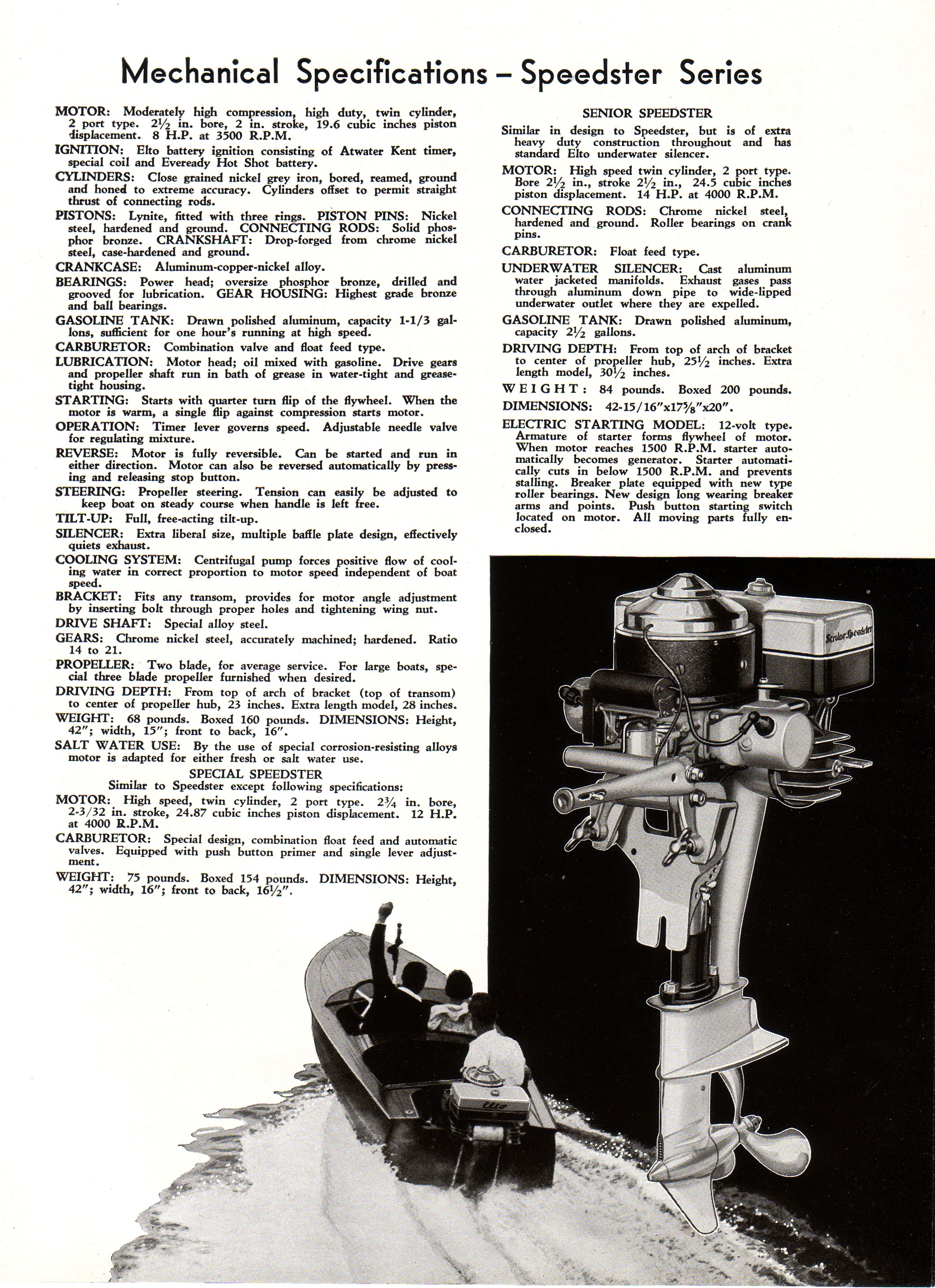

advance lever and cable going to the timer / starter / generator assembly.
I didn’t realize those units actually charged the battery too.
I’m thinking that with the extra weight of the electric start,
and the power drag in "generating mode", my Senior Speedster
could kick butt, but it would great to have one anyway!
Thanks!

Prepare to be boarded!
May 28, 2018 at 11:08 pm #76937
pm-t2
Participant
Canada Member - 2 Years
For the people who have the electric-start version of this or any antique motor, and intend to run them, I recommend disabling the charging circuit, which eliminates two things from happening;

a) you won’t have to worry about any additional "drag" on the motor because of the charging system loading it down, and
b) you avoid any possibility of a charging system malfunction, specifically the voltage regulator, which could cause several problems (none of them minor) if it failed to work properly.

FWIW I have a pair of the Super C electrics, and they will wind out every bit as fast as the rope start model. The charging systems are disabled on both of them, as are the compression releases (both plugged).

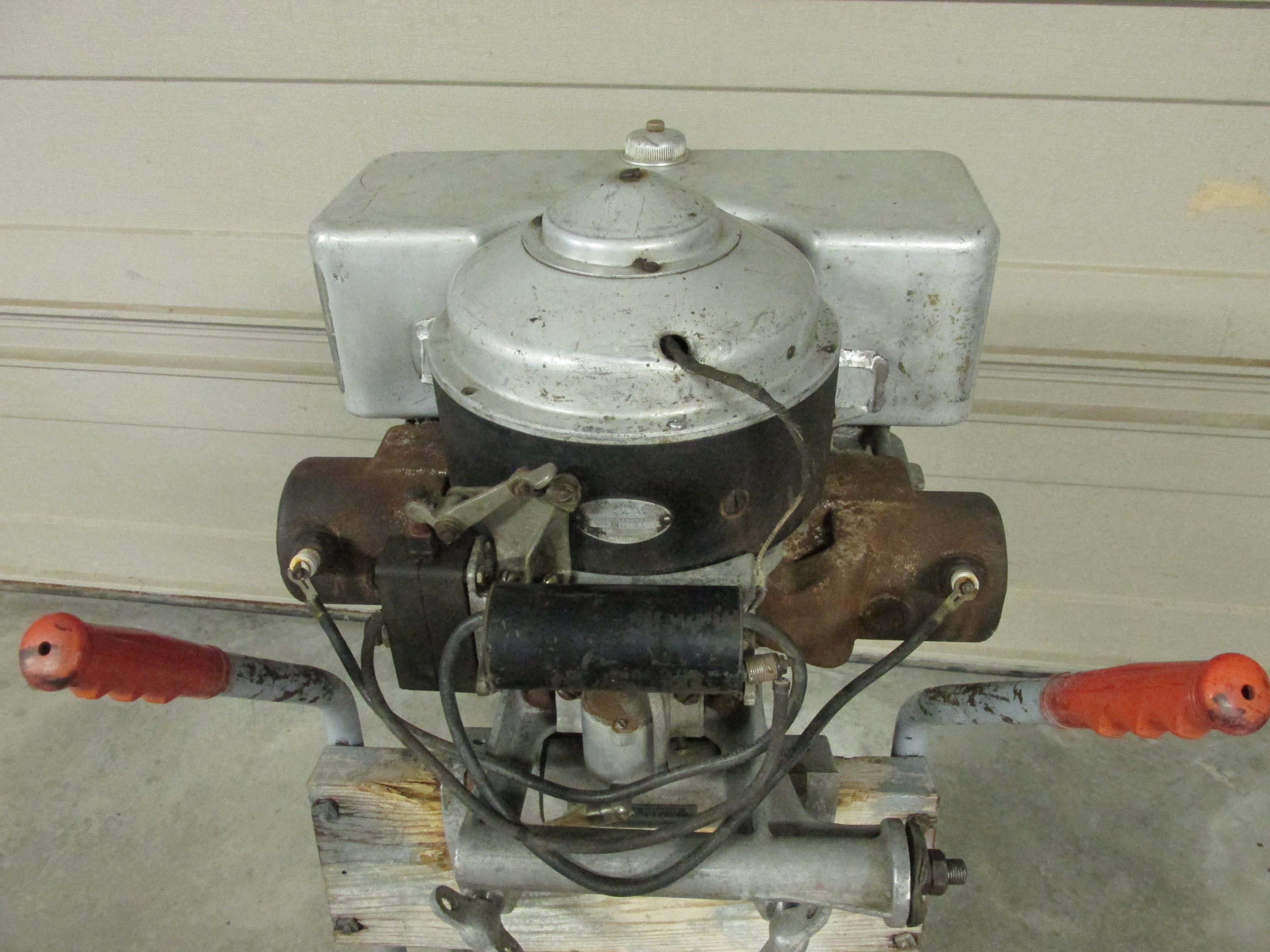

This is the Sr Speedster with the Owen-Dyneto appliance on it. This motor came from Harry Nicholson, I’ve fired it up on the stand, but she’s nowhere near going on a boat yet. But she’ll get there…. and I bet she will be fun to run.

PM T2
May 28, 2018 at 11:10 pm #76938
Buccaneer
Participant
US Member

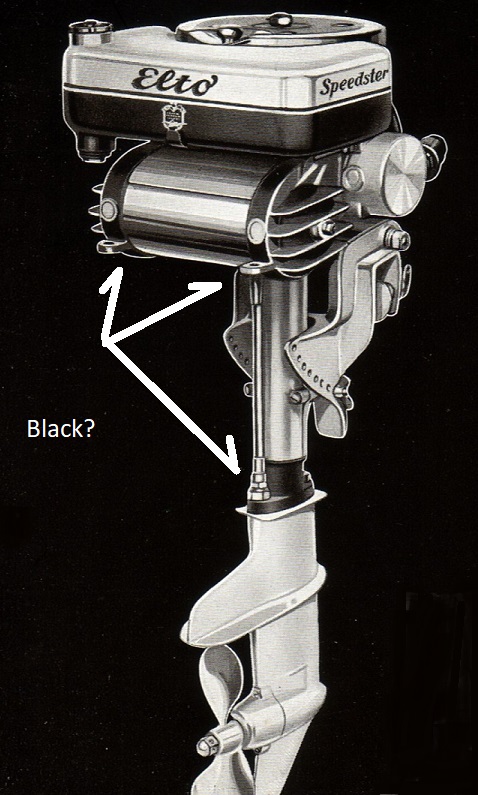

Just found this drawing of a Senior Speedster and what
you mentioned about the same makes more sense to
my dense head now.

Attachments:

Prepare to be boarded!
May 29, 2018 at 12:04 am #76945
squierka39
Participant
US Member
I have studied mine and have no black on tiller, piece above LU or on exhaust ends. The drawing shows the tiller as dull aluminum too. And the picture on the grab bar discussion with the yellow letters on blue background looks just like mine. Are you sure that year had black on it Chris?

I know it says it is but that drawing you show Buc, isn’t a Senior speedster. Gas cap and fuel line are in wrong spots, Wrong exhaust, etc. I think it’s just a Speedster.
May 29, 2018 at 12:49 am #76949
garry-in-michigan
Participant
Lifetime Member
According to the advertisements the pump housing was black as were the muffler ends with the edges of the cooling fins polished. . . . 😎
