May 29, 2018 at 2:52 am #76962
Buccaneer
Participant
US Member
quote SquierKA39:

I looked at my grab bar and it looks like yours has had a piece cut out between the bolt holes.

Are you saying there’s suppose to be a horizontal piece between the handle bolt
flanges?
Mine does look like it’s had some work done on it, including welding
on the bar swivel "stop".
Thanks.

Prepare to be boarded!
May 29, 2018 at 12:39 pm #76971
squierka39
Participant
US Member
Yes, that’s what I’m trying to say. It crosses over below the carb.
May 29, 2018 at 4:35 pm #76990
Buccaneer
Participant
US Member
quote SquierKA39:

Yes, that’s what I’m trying to say. It crosses over below the carb.

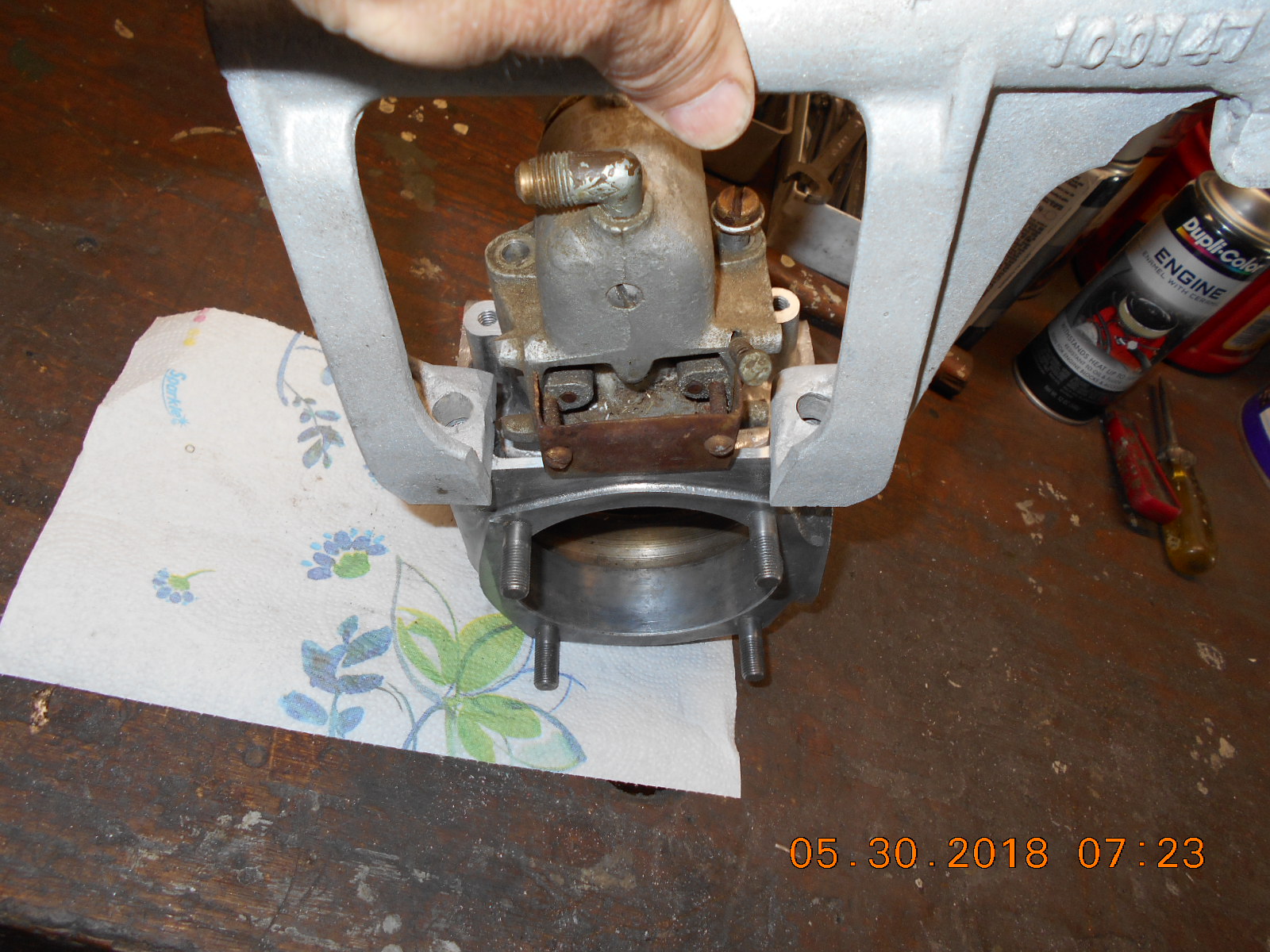

I looked at my handle this morning, and don’t see how there would be
room for the horizontal piece between the bolt holes, as it would
hit the carb. Maybe I can find a photo of it somewhere.
Thanks.

Prepare to be boarded!
May 29, 2018 at 6:34 pm #76997
squierka39
Participant
US Member
A little hard to see but it’s the best I could do. Also, my motor is colored just like the second picture posted, I have the same blue decal too.
May 29, 2018 at 10:18 pm #77004
Buccaneer
Participant
US Member
quote SquierKA39:

A little hard to see but it’s the best I could do. Also, my motor is colored just like the second picture posted, I have the same blue decal too.]

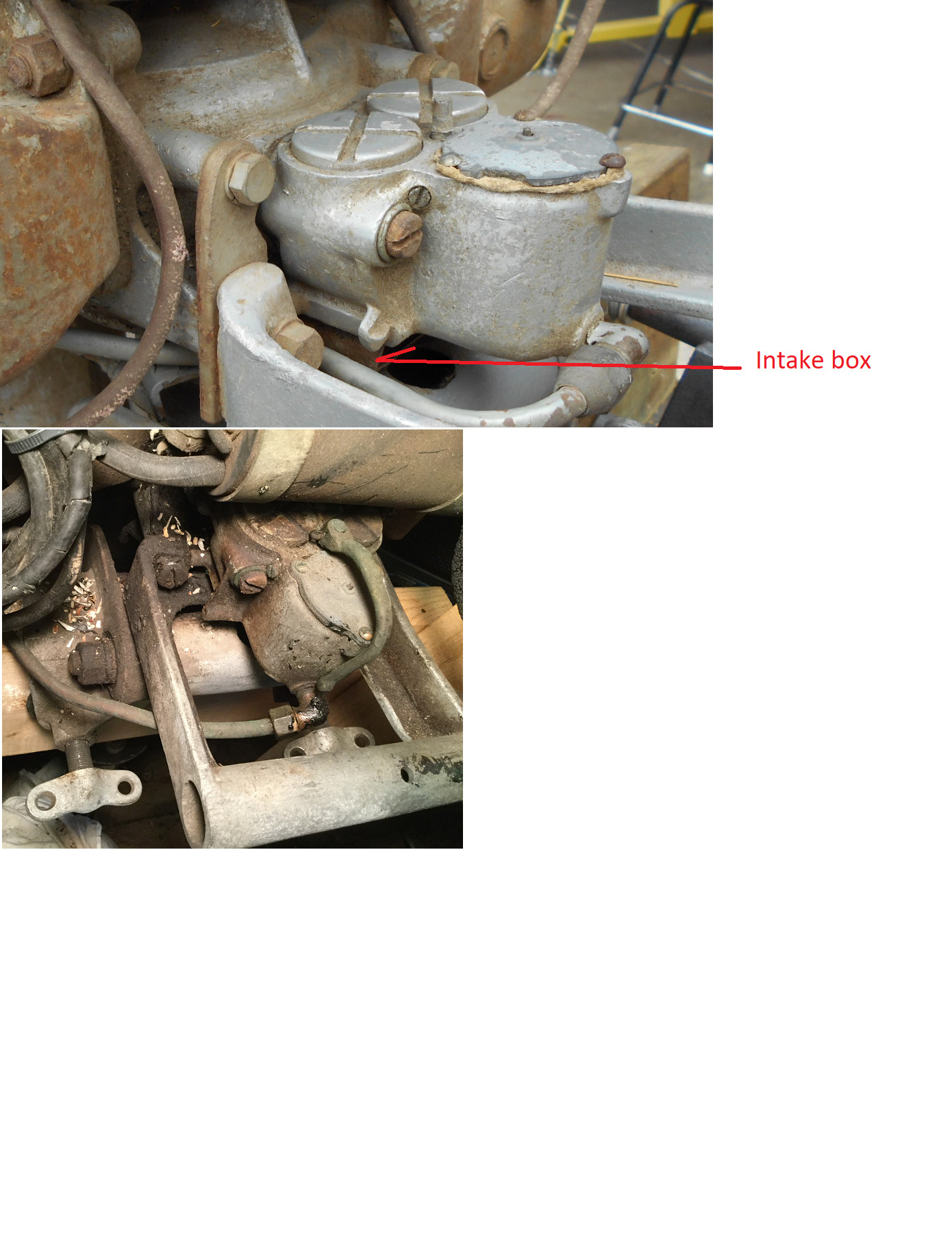

I’m thinking are carbs are different. Mine has an air box on
the bottom of the carb, that would hit that horizontal bar.
Perhaps that’s why my bar was cut off.
Bad storm right now, but next time in the garage I’ll look at
the carb and see if the box is an "add on".

My carb also has a spring loaded plunger on the bottom right of the carb, facing it.
Can’t tell if yours has that. The parts diagram I have doesn’t show it, but
mentions it as a "Choke Plunger".

Attachments:

Prepare to be boarded!
May 30, 2018 at 1:55 am #77014
pm-t2
Participant
Canada Member - 2 Years
quote SquierKA39:

I looked at my grab bar and it looks like yours has had a piece cut out between the bolt holes.

I agree with Mike. I didn’t catch the missing section first time around, I was looking only at the casting number, which is correct.

Your grab handle does have metal missing, basically that strut is supposed to run across the bottom from lug to lug has been removed.

Sorry if I caused any confusion.

best,
P T2
May 30, 2018 at 2:19 pm #77036
squierka39
Participant
US Member
Maybe Rube added a baffle to the air intake and needed to remove the cross bar to fit it. The carb looks the same as mine otherwise.
Interesting motor, lots of little modifications going on.
May 30, 2018 at 4:44 pm #77048
Buccaneer
Participant
US Member

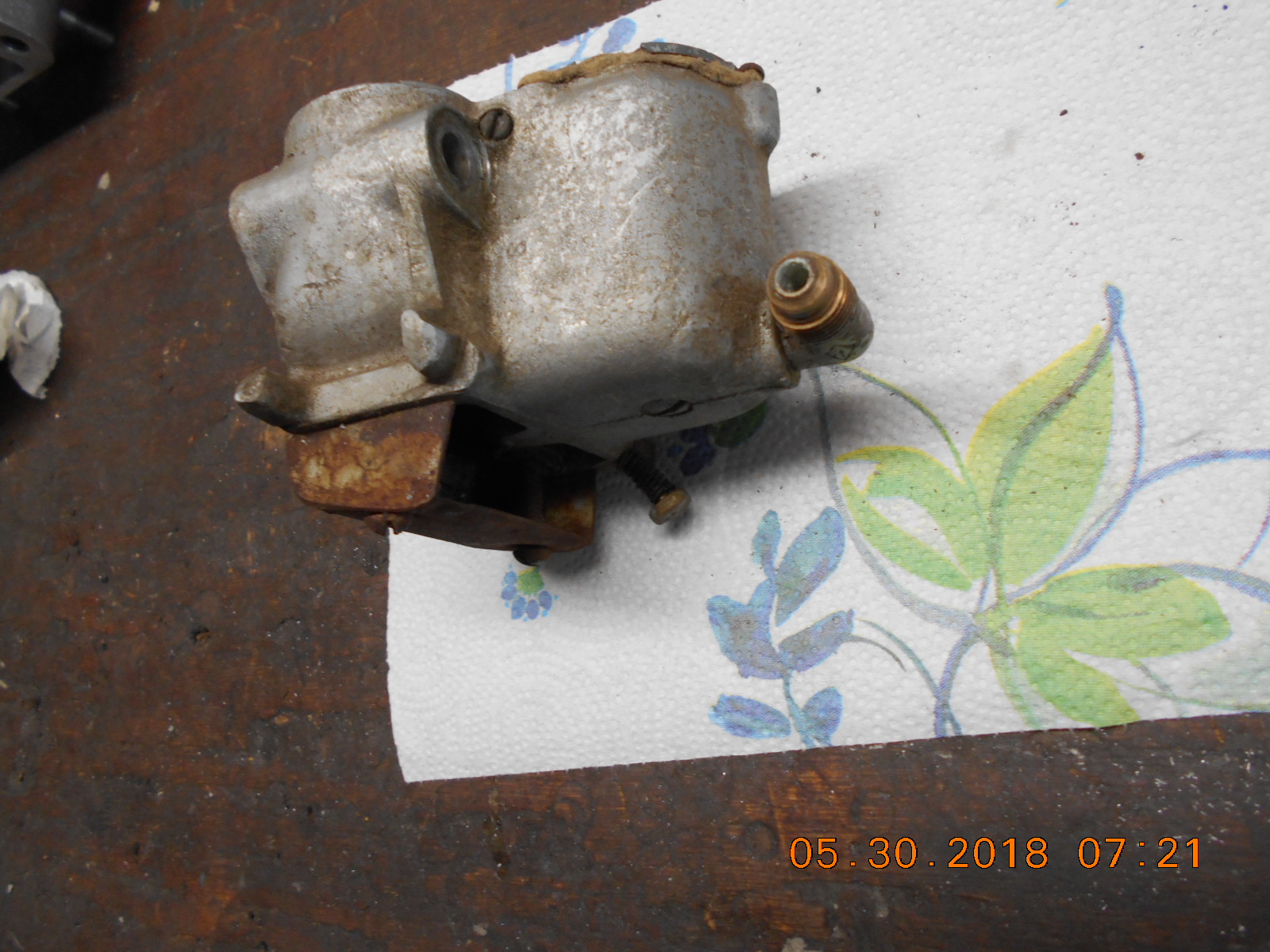

It’s a shame to think someone defiled the Elto by cutting
off the cross strut just to add that little tin box on the intake.
Hood scoops looked rad on Super Bee’s, etc., back in the day,
but doesn’t do much for this Elto. 😕

Is there suppose to be an intake screen on these carbs?

Attachments:

Prepare to be boarded!
May 30, 2018 at 5:43 pm #77058
pm-t2
Participant
Canada Member - 2 Years
Yes, there should be a screen over the opening on the bottom of the carb.

Be careful when tightening the fuel inlet fitting, those carbs are prone to splitting along the parting line that runs from the threaded port across the underside.

PM T2
May 30, 2018 at 6:40 pm #77060
bill-loveland
Participant
quote Buccaneer:

It’s a shame to think someone defiled the Elto by cutting
off the cross strut just to add that little tin box on the intake.
Hood scoops looked rad on Super Bee’s, etc., back in the day,
but doesn’t do much for this Elto. 😕

it may have been a spray shield – I’ve run motor/boat configurations where the prop wash makes that location a wet one under certain conditions – or maybe there’s some cooling water leakage doing something similar

and T2 ain’t kidding about the fuel inlet fitting – I’ve wrecked one carb overtightening that fitting instead of going for more packing
