1950 Evinrude 14 hp Fastwin Coils

Home Forum Ask A Member 1950 Evinrude 14 hp Fastwin Coils

Currently, there are 0 users and 1 guest visiting this topic.
Viewing 15 posts - 16 through 30 (of 31 total)

  • Steve Martin

    US Member - 2 Years
    Replies: 104
    Topics: 16
    #265998

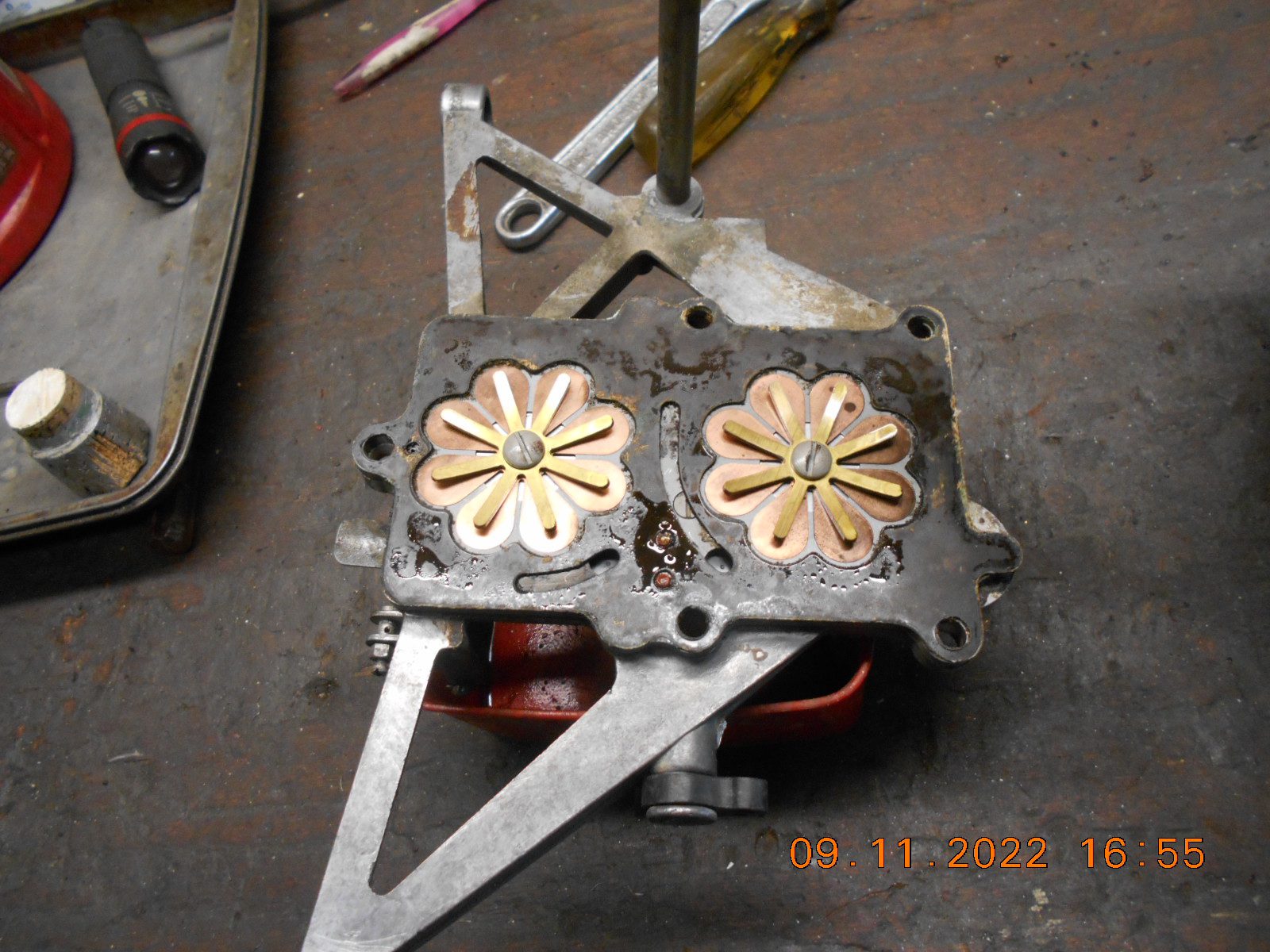

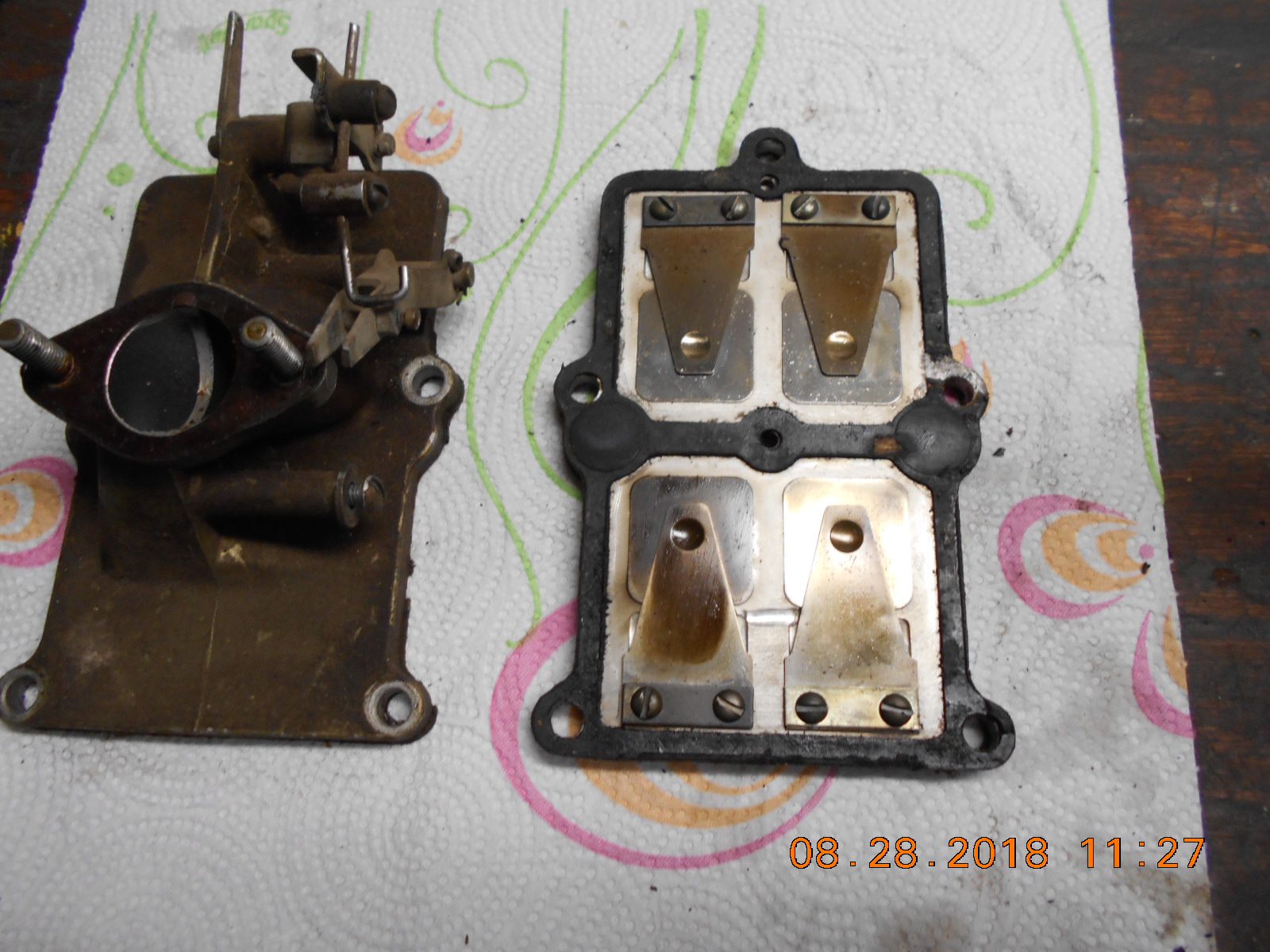

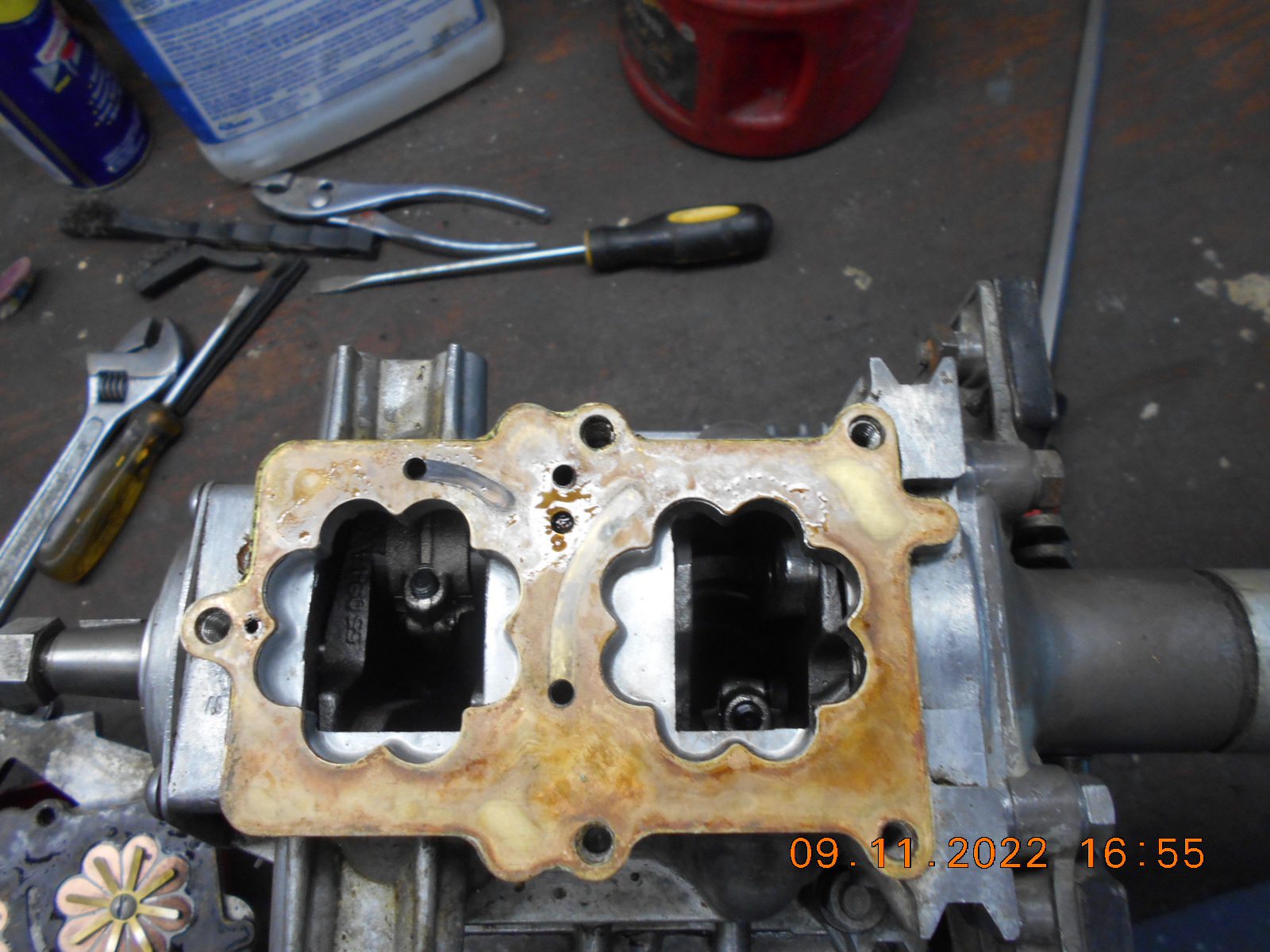

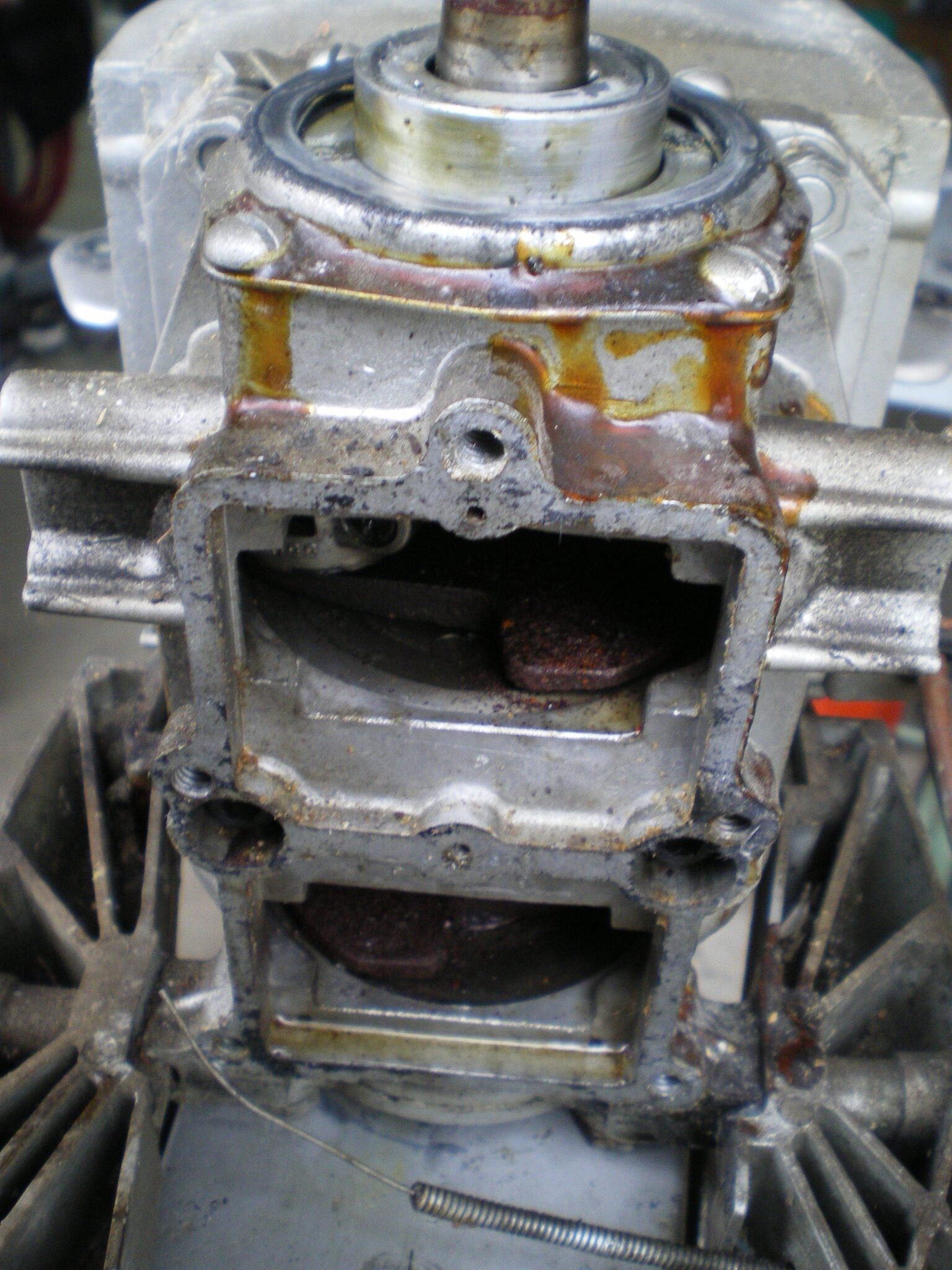

    I guess my hope for a miracle solution was a fantasy.  I too have tried everything in my chemical collection with no success.


    Monte NZ

    International Member - 2 Years
    Replies: 218
    Topics: 63
    #266009

    I wonder if methylated spirit or alcohol of some sort, would be worth a try


    seakaye12

    US Member - 2 Years
    Replies: 846
    Topics: 102
    #266125

    I’ve done that Universal OMC coil swap.  It’s not too bad.  Worked out fine for me.

    Did your coil towers with plug wires also exit out of the bottom of the mag plate?
    I haven’t gotten around looking at my mag plate this morning….. still
    cleaning the powerhead. 🙁

    Actually….I don’t think so.  I looked for a picture of mine but can’t find one.  I think my plug wires exited out the top?  I like the bottom version better!


    Buccaneer

    US Member - 1 Year
    Replies: 6083
    Topics: 921
    #266166

    Out the bottom it is then! Just got the coils today, but hopefully I’ll get to the mag plate
    re-do in the next few days.

    Prepare to be boarded!


    jp53-n

    US Member - 2 Years
    Replies: 66
    Topics: 17
    #266403

    Some inspiration.


    Buccaneer

    US Member - 1 Year
    Replies: 6083
    Topics: 921
    #266406

    Thanks for the semi inspiration, lol. I was worried for a bit that it wasn’t going
    to “wind up”. Looks like you were struggling with the spark advance, but
    I understand two hands would have been better than one!
    It idles down pretty nice though.
    I could not tell from your video, but does your twist grip throttle work correctly,
    i.e., fast is fast, slow is slow?
    Mine reads back asswards……. I assume I have something screwed up inside
    the handle.
    Nice to see one running! Thanks.

    Prepare to be boarded!


    jp53-n

    US Member - 2 Years
    Replies: 66
    Topics: 17
    #266407

    No struggles, I was avoiding wakes and boat traffic at first. The throttle works the normal direction.


    Buccaneer

    US Member - 1 Year
    Replies: 6083
    Topics: 921
    #266414

    No struggles, I was avoiding wakes and boat traffic at first. The throttle works the normal direction.

    Thanks, I was afraid your throttle worked normally…… now
    I have to take mine apart one more time!

    Prepare to be boarded!


    Buccaneer

    US Member - 1 Year
    Replies: 6083
    Topics: 921
    #266426

    Progress made on the coil swap today.
    A little nervous cutting away precious metal on the mag plate,
    near one coil bolt mount area on each coil, but I think all
    will be A-okay..

    I thought I may be able to use vertical universal condensers
    to replace the old horizontally mounted ones, but even
    though the height of the condensers wasn’t an issue,
    the vertical condensers interfered with the point adjustment
    travel.
    I “may” try some careful surgery and swap the mount brackets
    between the old and new condensers, and if that don’t work,
    I may try a retrofit with axial capacitors.
    I need to find some condensers with the removable mount bracket
    for such occasions!

    DSCN4818

    DSCN4820

    DSCN4821

    DSCN4822

    Prepare to be boarded!


    bobw

    US Member - 1 Year
    Replies: 1954
    Topics: 51
    #266441

    Nice work on the coil swap.  If I tried that, I probably would have it screwed in the first 2 minutes!

    Bob

    1937 Champion D2C Deluxe Lite Twin
    1954 Johnson CD-11
    1957 Evinrude Fastwin 18
    1958 Johnson QD-19
    1958 Johnson FD-12
    1959 Johnson QD-20

    “Every 20 minute job is only a broken bolt away from a 3-day project.”


    JOHN HOLBIK


    Replies: 161
    Topics: 2
    #266443

    Beautiful work Munbles way out of my skill range,Try MEK for removing the stains.


    seakaye12

    US Member - 2 Years
    Replies: 846
    Topics: 102
    #266454

    Wow!  That looks beautiful Buc!  I am experimenting with the Ceramic style caps now as well as the axial.  The ceramics sure are tiny!  But….whatever you end up doing I’m sure it will work out fine and look beautiful!




    crosbyman

    Canada Member - 2 Years
    Replies: 2832
    Topics: 276
    #266461

    I may try a retrofit with axial capacitors……





    those small ceramic condensers in mr. Mohat’s   article should do fine . space wise      you could  cut down some old  caps  by 50%  to shrink them down  and stick the ceramics inside

    Joining AOMCI has priviledges 🙂


    labrador-guy

    US Member - 2 Years
    Replies: 741
    Topics: 52
    #266476

    Buc, you have that push rod points backing plate looking good!  When I grow up I wanna be just like you.

    dale

    get’em wet….don’t let’em set!!!


    Buccaneer

    US Member - 1 Year
    Replies: 6083
    Topics: 921
    #266486

    More work on the magneto today.
    The bottom cylinder’s coil plug wire circles
    around the opposite direction as with the original
    coils, but I didn’t seen any issues when I mounted
    the mag on the power head.

    DSCN4823

    I have not put the flywheel on yet, but hoping to have no issues
    with the new coils rubbing.

    DSCN4824

    I decided to alter some $7 universal magneto type condensers
    with brackets from the old style condensers.
    The new condenser’s brackets were attached to their cans
    with two tiny spot welds.
    I “carefully” drilled the spot welds away on the milling machine
    using an 1/8″ end mill.
    I measured the bracket thickness, and used the mill DRO so
    I didn’t drill too deep!
    They’re installed on the mag plate, and appear that they “‘should work” okay.

    DSCN4832

    Prepare to be boarded!
