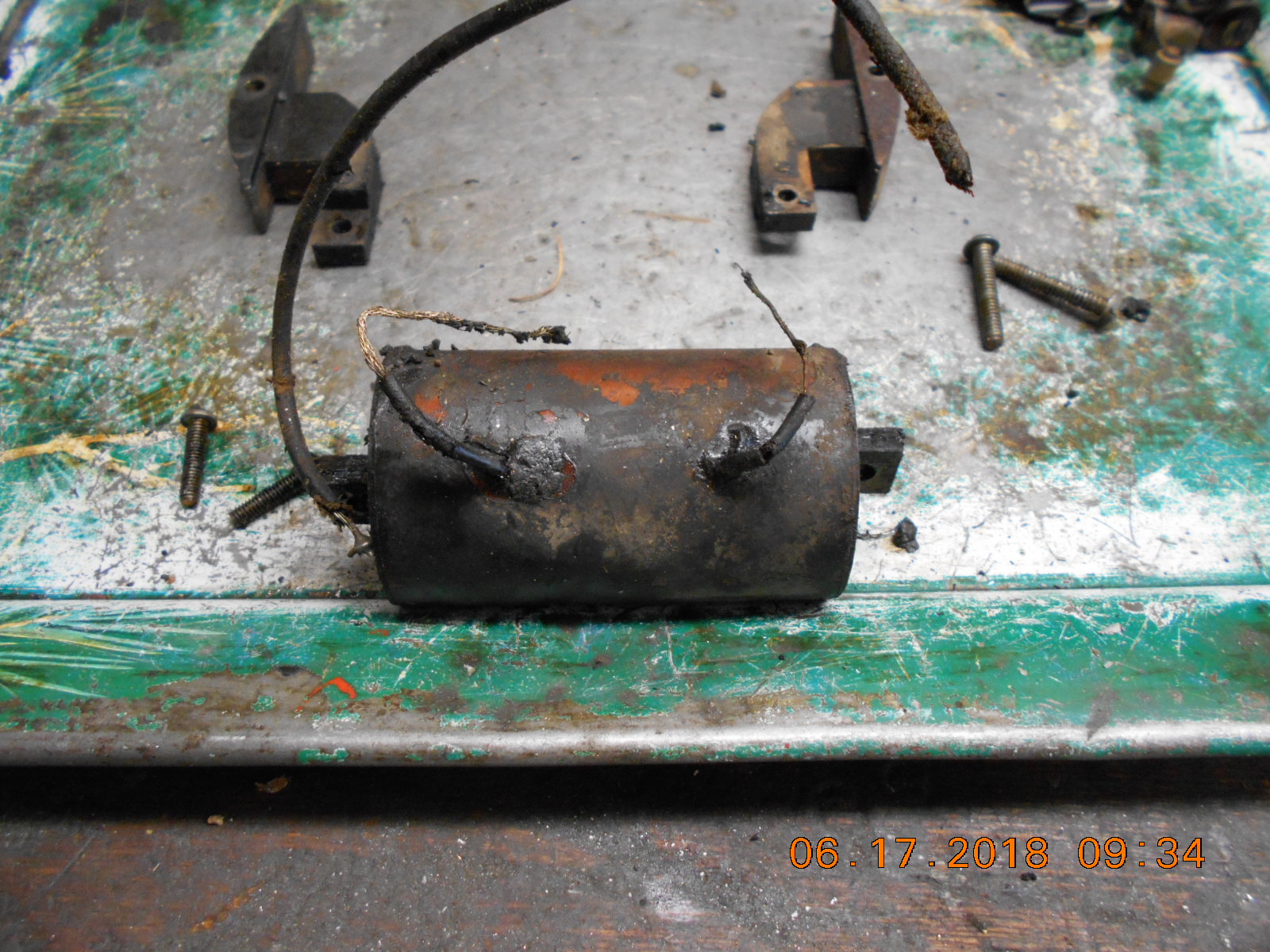

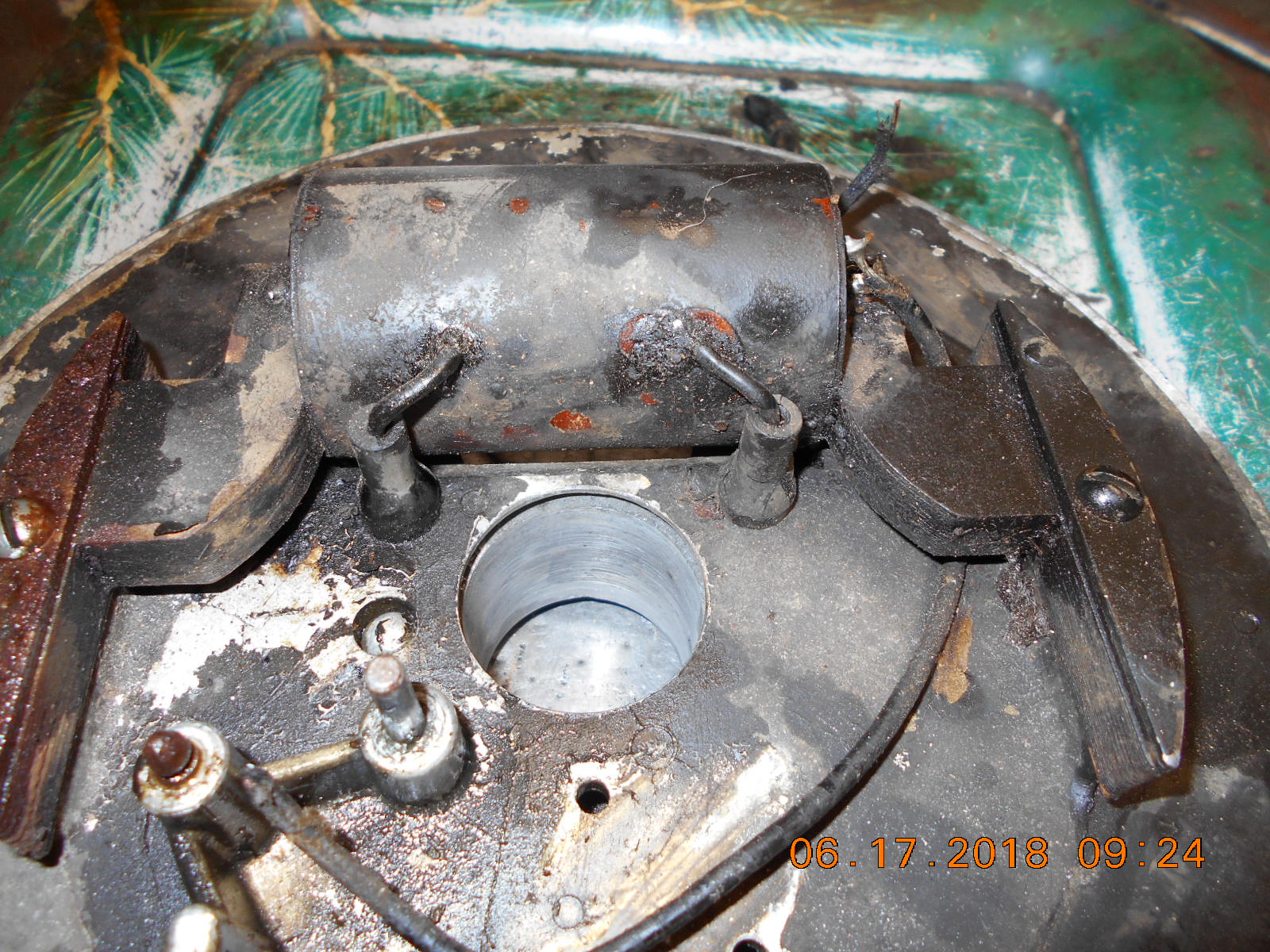

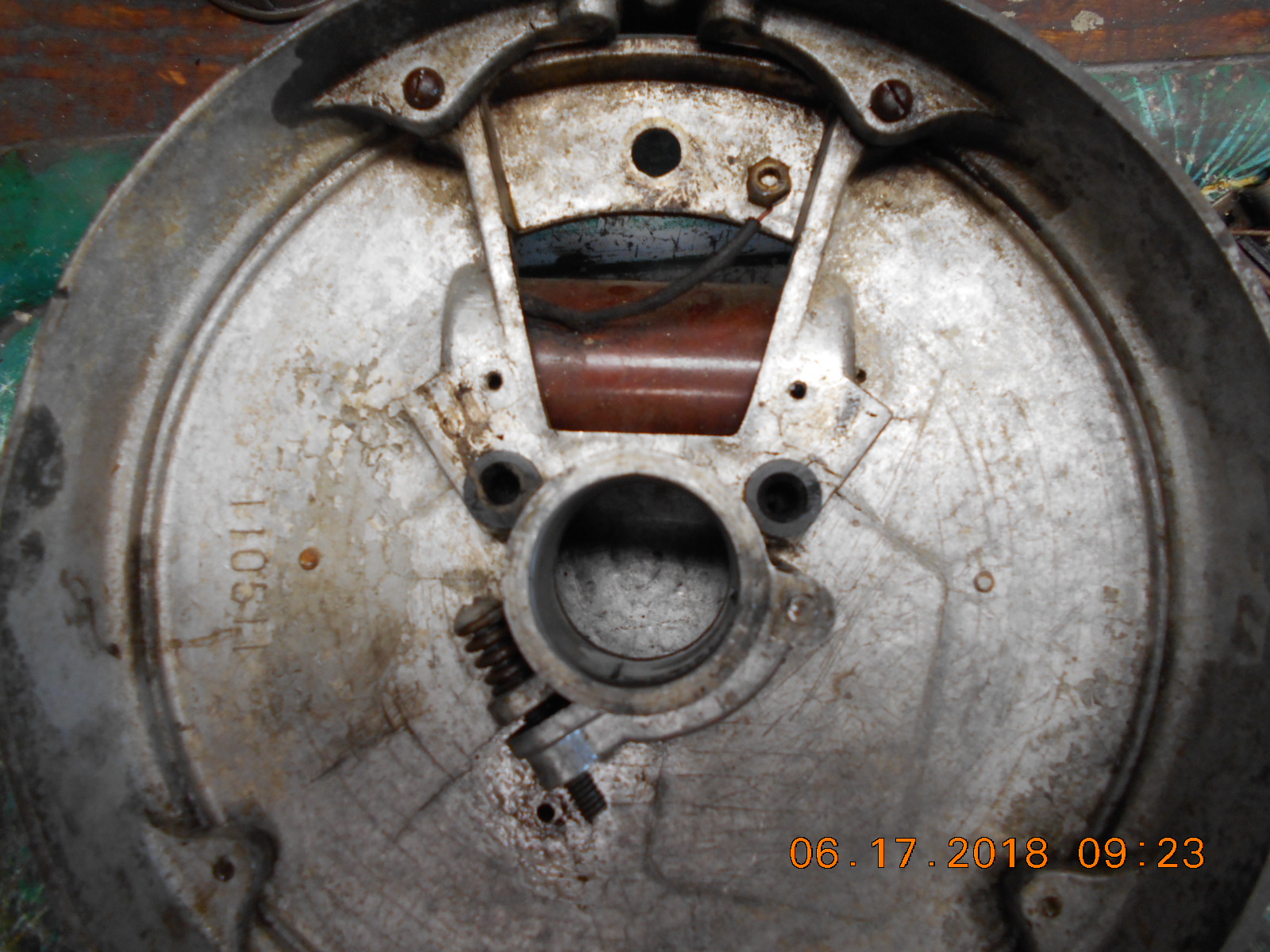

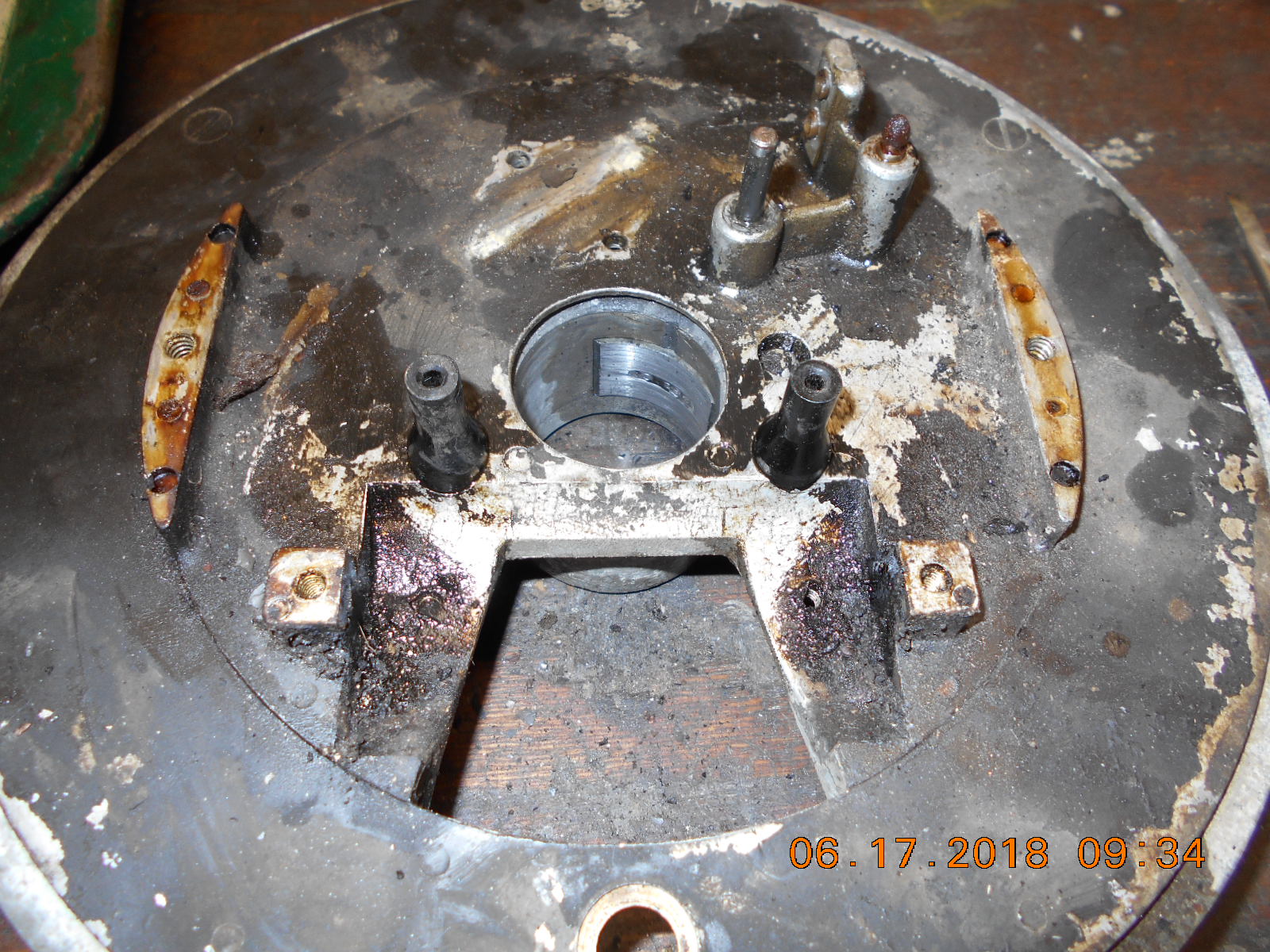

Here’s the Speeditwin magneto I’m going to use on my
Elto Speedster. I’ve never run across a coil set up like
this where the secondary leads went into a bakelite
insulator and the lead ends basically just butted up
against the ends of the spark plug wires that poke into
the insulator towers from the bottom side.

I’m thinking of eliminating this set up and just solder
on new plug wires near the coil, and using regular
grommets in the mag plate.
Doesn’t this sound more fool proof?

I haven’t actually tested the coil yet, but can this
on be converted to OMC universal coils?

---

Attachments:

Prepare to be boarded!

[fergalb]

I have been looking at this to replace mine it looks a lot like yours. https://www.ebay.co.uk/itm/2-spark-Repl … 1438.l2649

[The Boat House]

Should be able to get some OMC
coils in there without to much
effort similar to this magneto.
Just be sure they both face in
the same direction.
Here is a slide show of a Johnson
I did years ago that shows the
steps for this motor. Some
motors are easier, some harder
but the concept is the same.

https://www.youtube.com/watch?v=gfRG_Zz_0gk

[Buccaneer]

Thanks Tubs. Looks like the hardest part is getting
the old laminate out of the coil.

Prepare to be boarded!

[garry-in-michigan]

Would one of those dual post surplus military coils work ? ? ? 🙄

[The Boat House]

quote Garry in Tampa:

Would one of those dual post surplus military coils work ? ? ? 🙄

I don’t think you can get the laminates out
without damaging the insulation on the coil.
I tried to get the laminates out of 2 Bendix
coils and just ended up ruining them. If
you can get the laminates out I would think
you could come up way to use them.

[The Boat House]

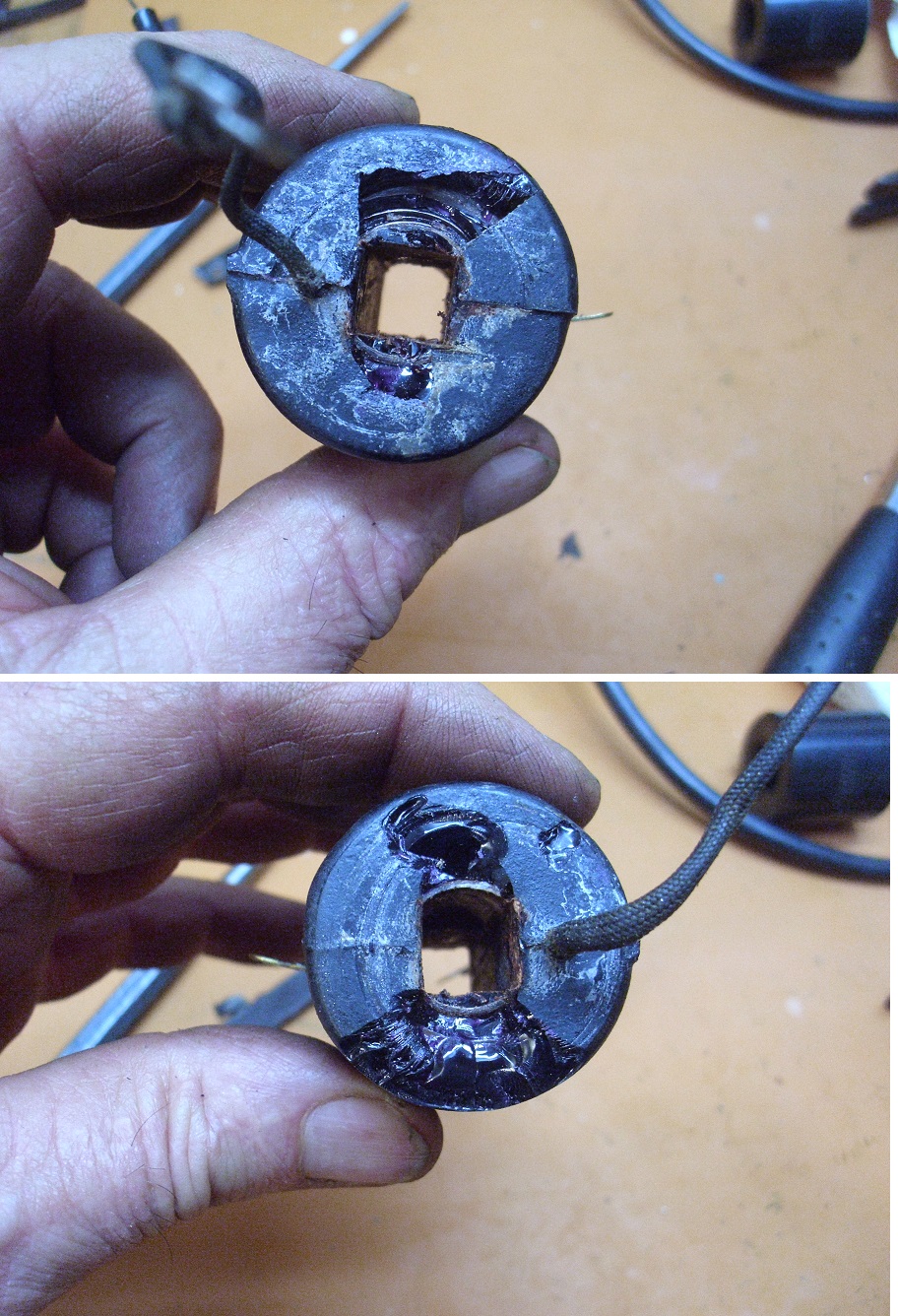

Here what happened when I tried to get the
laminates out of some Bendix coils.

[RICHARD A. WHITE]

lookie at them man hands…. My Hero TUBS!!!!!!

Someday I gonna meet you… Tomahawk this year maybe?

http://www.richardsoutboardtools.com
classicomctools@gmail.com

[Buccaneer]

I tried to test the Speeditwin coil with the OHM meter before
I called it a day. Primary was fine, but I couldn’t get a consistant
reading on the secondary. It was was all over the place, 18K, 15K,
9K, or OL (open loop). My meter is an auto range meter, and
some times I think it’s wacky, but I suppose it could be a loose
secondary lead under the case, etc.
Anyone else have problems with inconsistent readings some times?
Will throw it on the Stevens tester tomorrow and see what
happens!

Prepare to be boarded!

[jcrigan]

To get the laminates out of a bendix coil you need to remove the center laminates first. Then work outwards till they are all out. Of course screwing them up when doing this is expected. I have done one of these and felt very lucky to have been successful.
