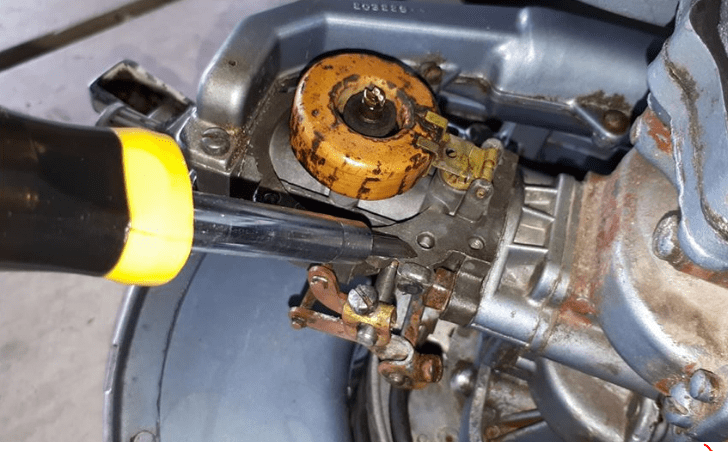

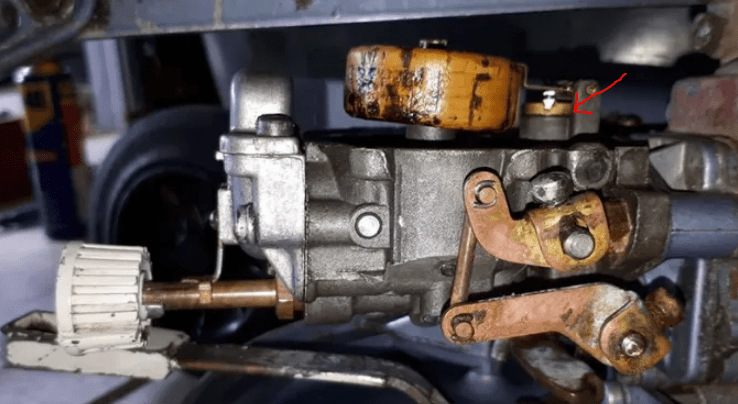

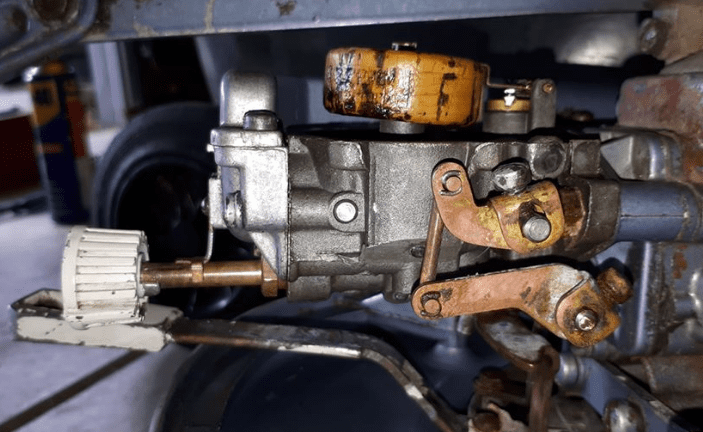

In the above 2nd photo the float at rest is not horizontal (motor inverted – gravity pulling float down / valve closed). Lifting float (ie. towards prop end) opens valve as confirmed by blowing into opening indicated by screwdriver. But putting bowl back on and screwing on results in float permanently closing the valve.
Guess that means I need to ‘adjust the level’ of the float but yet to find instructions on how to do this.
February 27, 2020 at 6:29 pm #196014Bend it in the region of the small hole in the float arm.
If I am seeing it right, the clip is missing off the inlet needle, The clip in necessary to drag the needle off the seat when the float drops down
EDIT: That thing doesn’t look right. Very unusual to see a float that far off horizontal..
- This reply was modified 4 years, 1 month ago by frankr.
February 27, 2020 at 6:50 pm #196019I watched a video just now in which the guy realised the washer that I’m indicating below with an arrow, was a bit thick. He changed his for a new one from his carb kit. I didn’t change the washer but I did tighten the valve seat a bit which has the float sitting a bit more horizontal, though still not quite there. If I tightened further I could probably compress the washer just enough, but how hard should I be tightening?
February 27, 2020 at 6:50 pm #196022February 27, 2020 at 11:25 pm #196060I would replace the old cork float with a new plastic one.
Just snug up the valve seat firmly with a screwdriver that fits that slot as closely as possible. Don’t want to over tighten.
Adjust if necessary by using two sets of needle nose to bend the float arm. Needle nose in each hand ,grip the float arm fore and aft of where it contacts the valve needle and tweak it to level. . Fine adjustment is easier and more effective than any other way.
- This reply was modified 4 years, 1 month ago by wedgie.
February 28, 2020 at 12:44 am #196070The JW series of motors is extensively covered in the JOHNSON BIBLE at boat info
http://www.boatinfo.no/lib/johnson/manuals/1922-1964johnson.html
why not take some time and read a bit to acquaint yourself with these small motors and the general knowledge of carburation and ignition the two most critical topics
all the info you need to know in that book print off what you need to a PDF file Carb float adjustments for the JW is in there starting at page 100
http://www.boatinfo.no/lib/johnson/manuals/1922-1964johnson.html#/106
your “modern” JW has no HS adjustment …just a fixed jet behind the bottom 7/16 hex bolt at the bottom has stated above so just unscrew the bolt plug and clean out the jet has explained
the float MUST be parallel to the carb body held upside down
did you clear the air vent holes in the fuel cap ??
Joining AOMCI has priviledges π
February 28, 2020 at 12:47 am #196071just posted some in on the “boat information” red book johnson bible placeβ¦ and POOF everything went out the window
why is this still happening π π π
Joining AOMCI has priviledges π
February 28, 2020 at 12:50 am #196072here goes again
see URL IN THE PICTURE all the info you need for your JW is there pages 100 and up in the johnson red book covers carbs for the JW
Joining AOMCI has priviledges π
February 28, 2020 at 5:55 am #196078So just got it started!. Fixing that float was one issue, the other was the plugs – they WERE connected around the wrong way.
After a few minutes it was purring at idle. A lot of smoke but I guess that is what you can expect at 25:1.
Thanks for all the help!
Now I know it can run I’ll properly refurbish it. I need:
Carby kit with float, needle valve and seat, float bowl gasket.
New gas tank tap (original one I have is a bit leaky).
I will need to check cooling system / impeller and probably a new one.Suppose Ebay is the place for these. Please recommend a kit if you can – some have bad reviews.
BTW, this one is a suitcase / folding model. Not sure if that is a good or bad thing.
- This reply was modified 4 years, 1 month ago by Elecmuso.
February 28, 2020 at 8:15 am #196084Cool, glad it is running..Make sure it is cooling OK also….
-
