March 29, 2026 at 5:12 pm #312813
David Bartlett
Participant
US Member

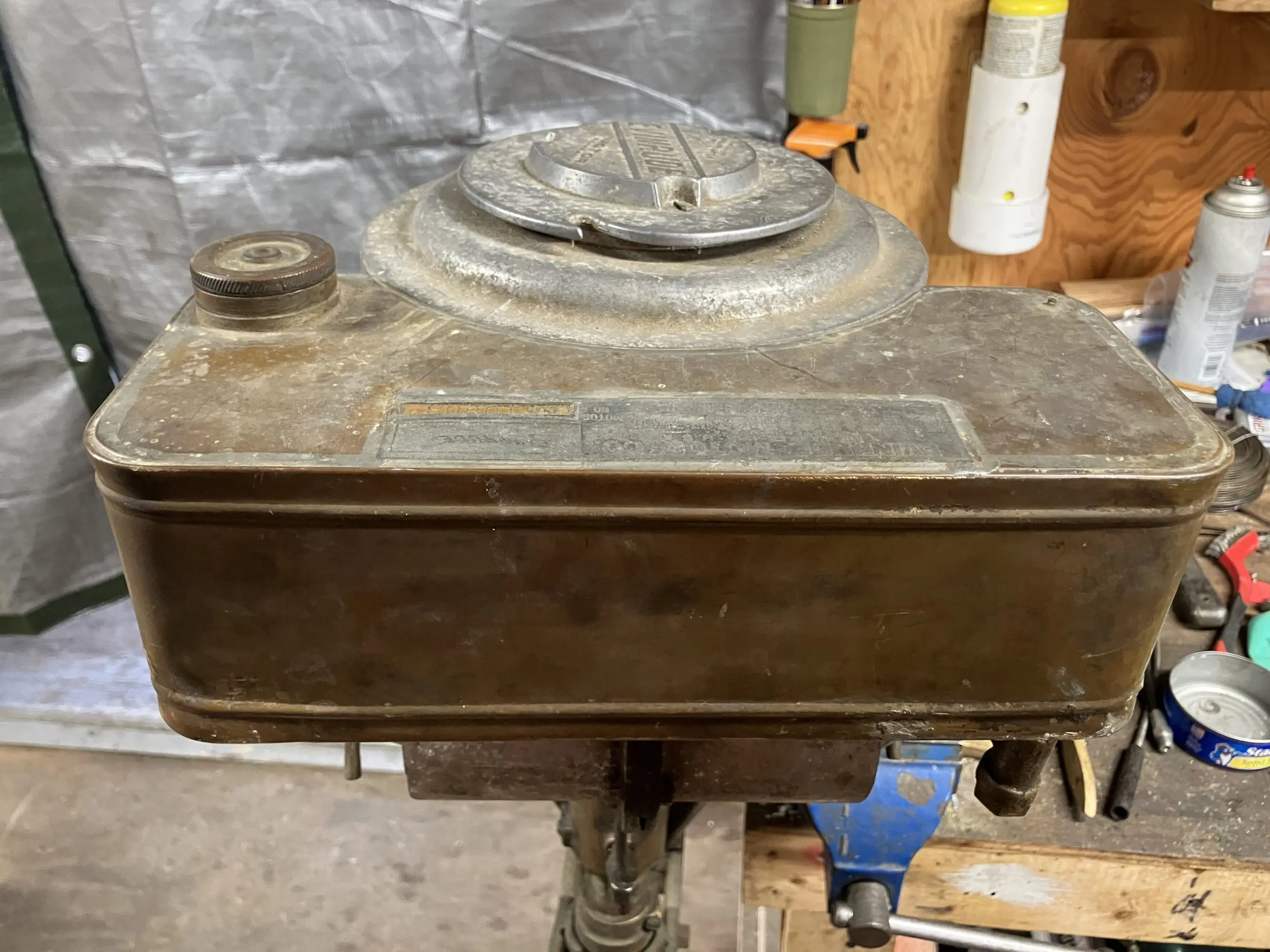

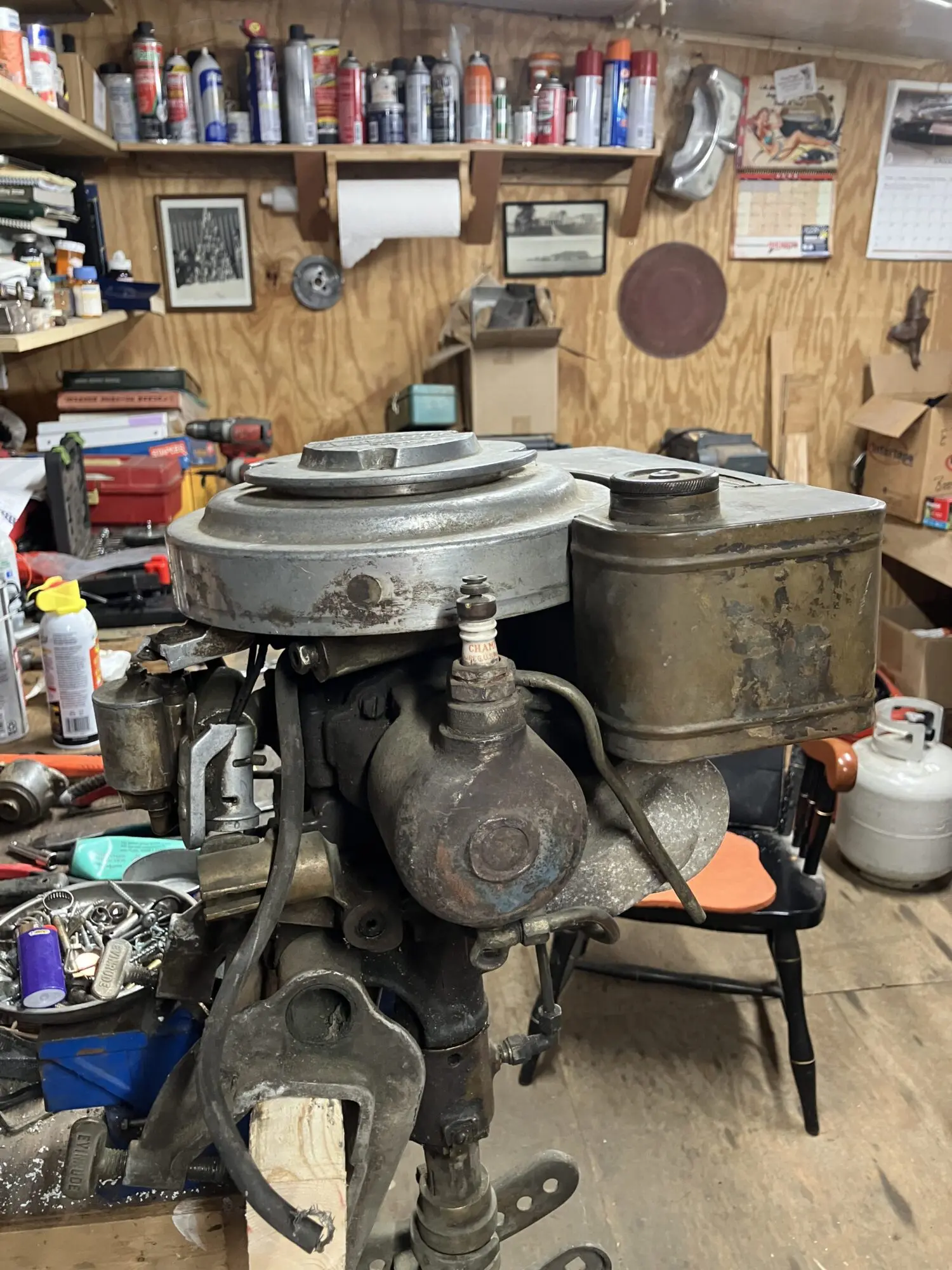

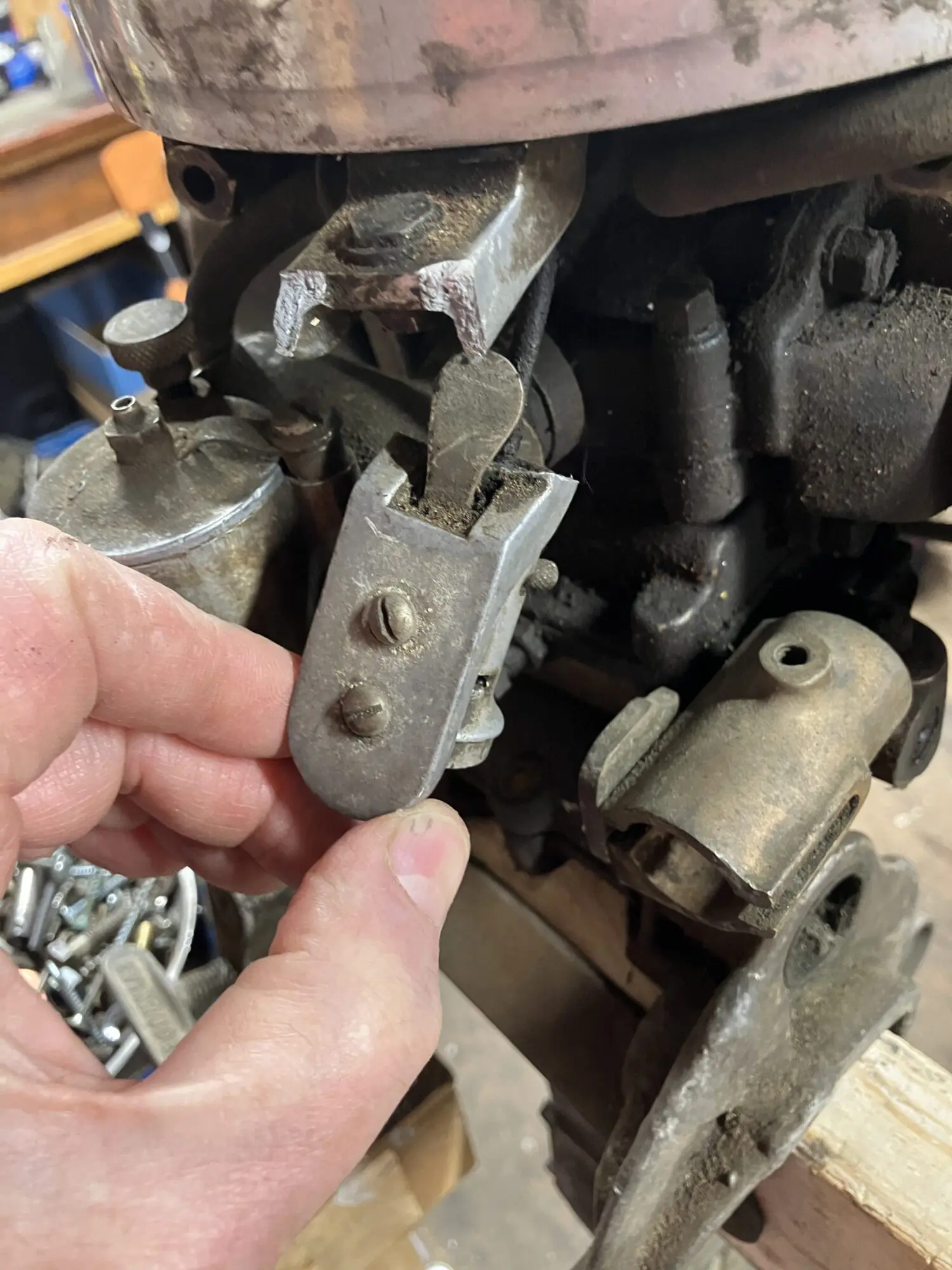

Today this motor followed me home. I believe it is a 1923 model based on the tank. It is missing the tiller handle and the advance lever is broken, but otherwise seems ok. Turns over nicely with compression.

David Bartlett
Pine Tree Boating Club Chapter

"I don't fully understand everything I know!"
March 29, 2026 at 5:14 pm #312819
David Bartlett
Participant
US Member

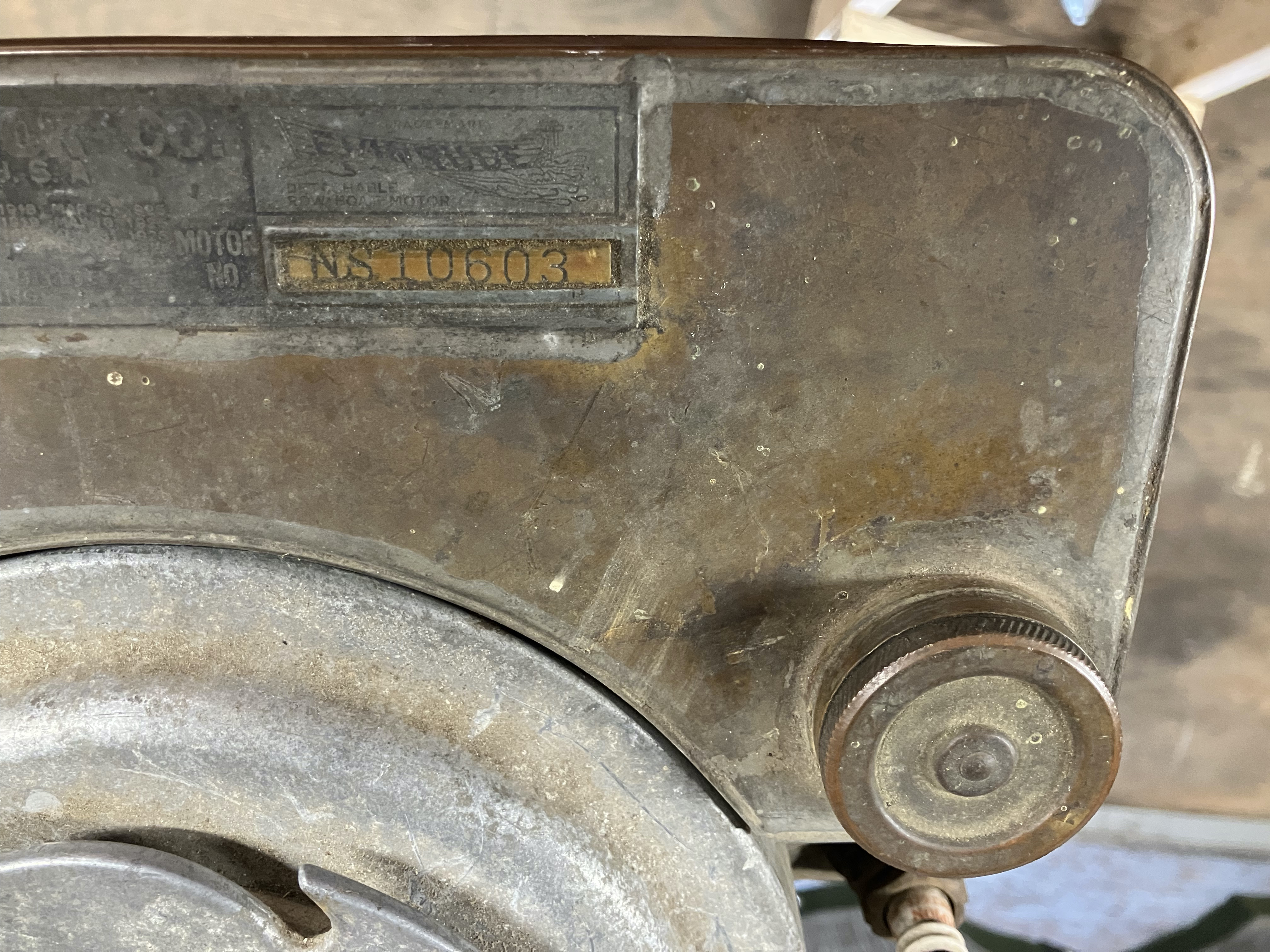

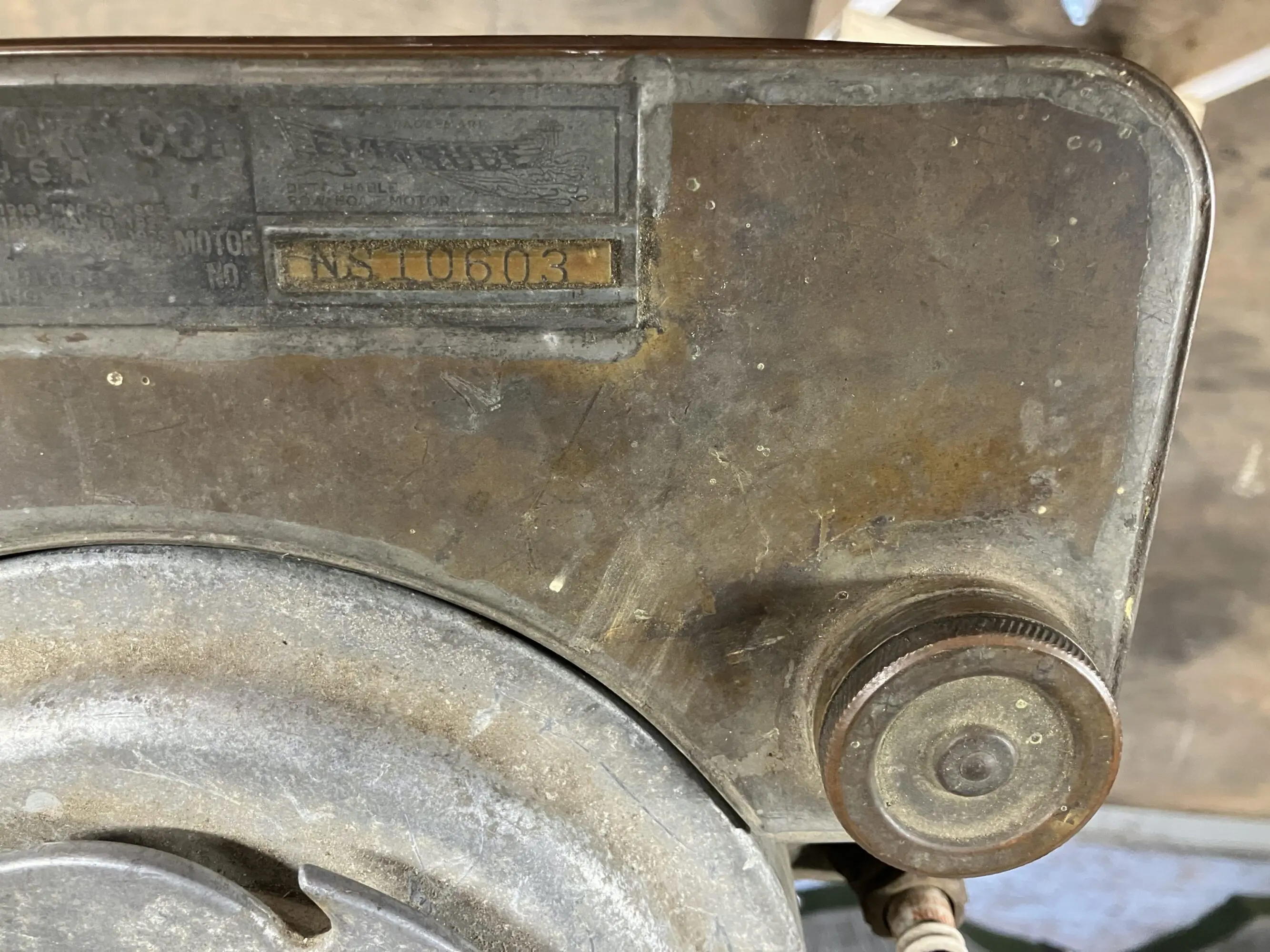

More pics

David Bartlett
Pine Tree Boating Club Chapter

"I don't fully understand everything I know!"
March 29, 2026 at 5:36 pm #312835
Buccaneer
Participant
US Member
I love that style of gas tank.
It should be an interesting project.

Prepare to be boarded!
March 29, 2026 at 7:28 pm #312852
Bob Wight
Participant
US Member
Looks like it has great potential. Keep us posted on progress!

Bob

1937 Champion D2C Deluxe Lite Twin
1954 Johnson CD-11
1955 Johnson QD-16
1957 Evinrude Fastwin 18
1957 Evinrude 3022
1958 Johnson QD-19
1958 Johnson FD-12
1959 Johnson QD-20
1982 Evinrude 25hp

“Every 20 minute job is only a broken bolt away from a 3-day project.”
"Every time you remove a broken or seized bolt an angel gets his wings."
March 30, 2026 at 10:40 am #312977
Tubs
Participant

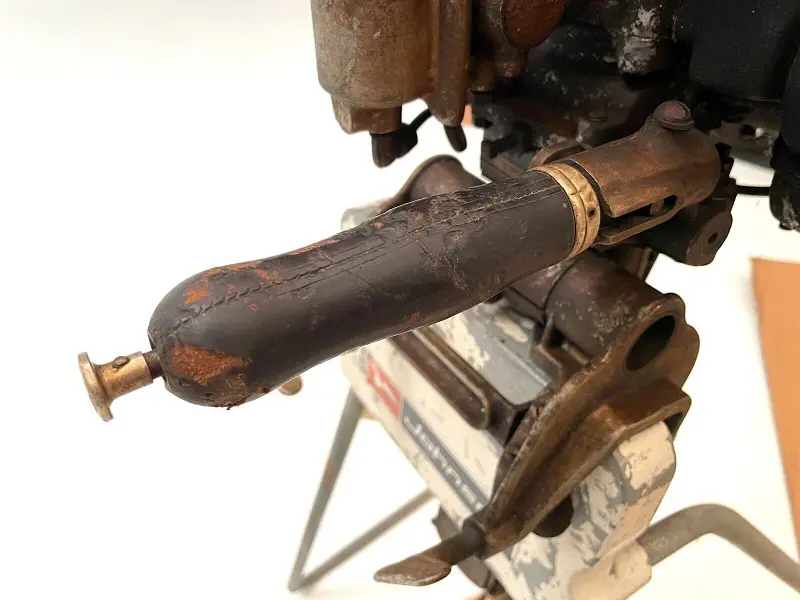

The gas tank is in amazing condition. Not my motor. From my picture files. Not long ago I had the complete assembly in about the same condition as this one. I remember taking it apart for the grip. I don’t have a clear recollection of what I did next but I suspect I sold the grip. Its the same as was used on the A Johnson’s. Likely scraped the rest. I’ll look around today to be sure. Sorry.

A "Boathouse Repair" is one thats done without having tools or the skills to do it properly.

1 user thanked author for this post.

David Bartlett
March 30, 2026 at 11:59 am #312993
David Bartlett
Participant
US Member
Tubs,

The picture is helpful to know what I am looking for.

David Bartlett
Pine Tree Boating Club Chapter

"I don't fully understand everything I know!"
March 30, 2026 at 12:07 pm #312996
David Bartlett
Participant
US Member

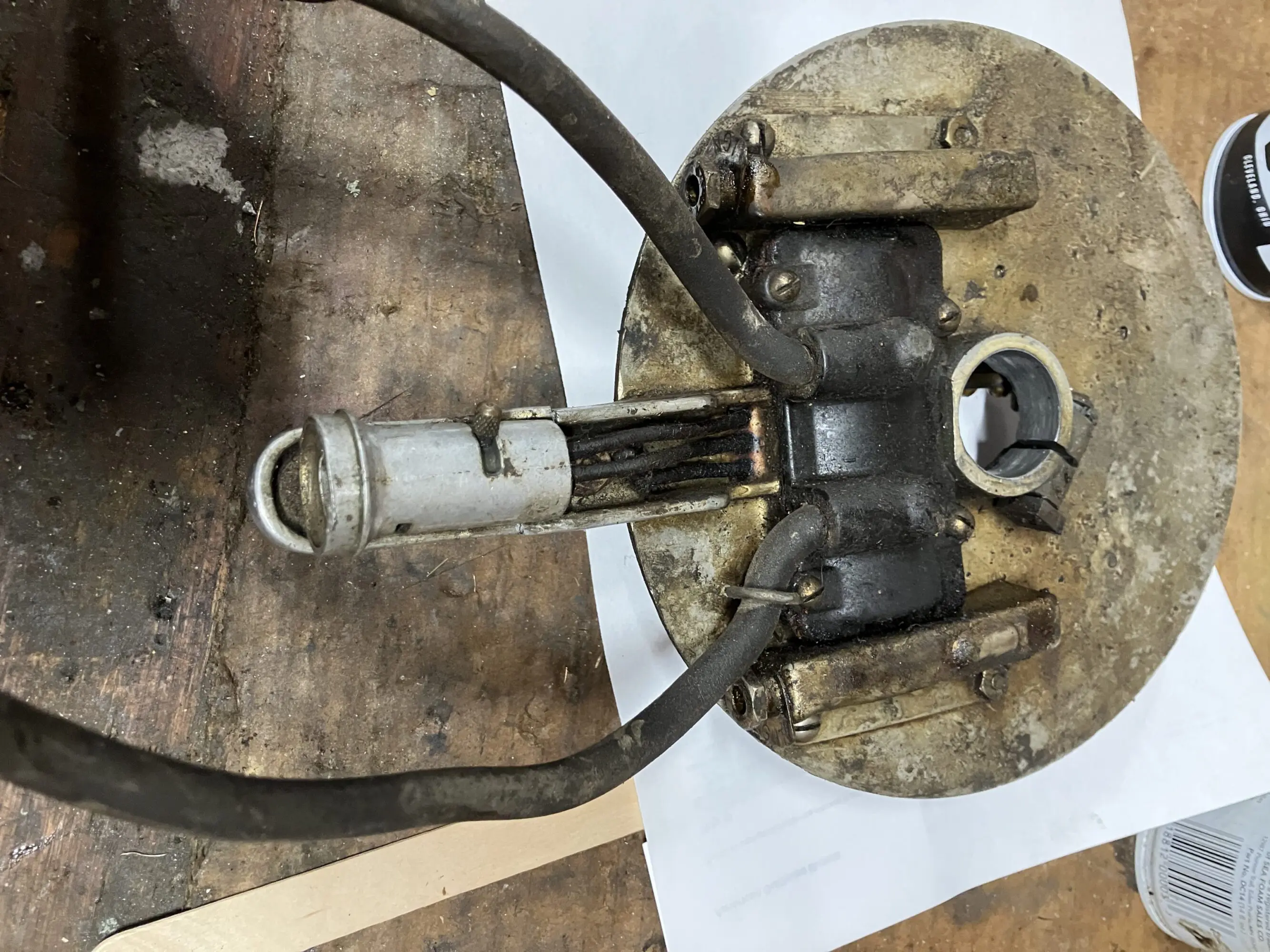

Today I commenced the disassembly process. The flywheel came off after a fight. Now that I can see the innards I am sort of baffled, amazed, and worried. This thing has a complicated magneto, with separate circuit to provide some low voltage lighting, and what looks like access for a remote kill switch. I knew it had a light switch socket under the broken advance lever, but was not aware of the rest.

You can see the extra windings on the inside of the coil heels. Some sort of extra condenser thingy too!

Underside showing light bulb socket.

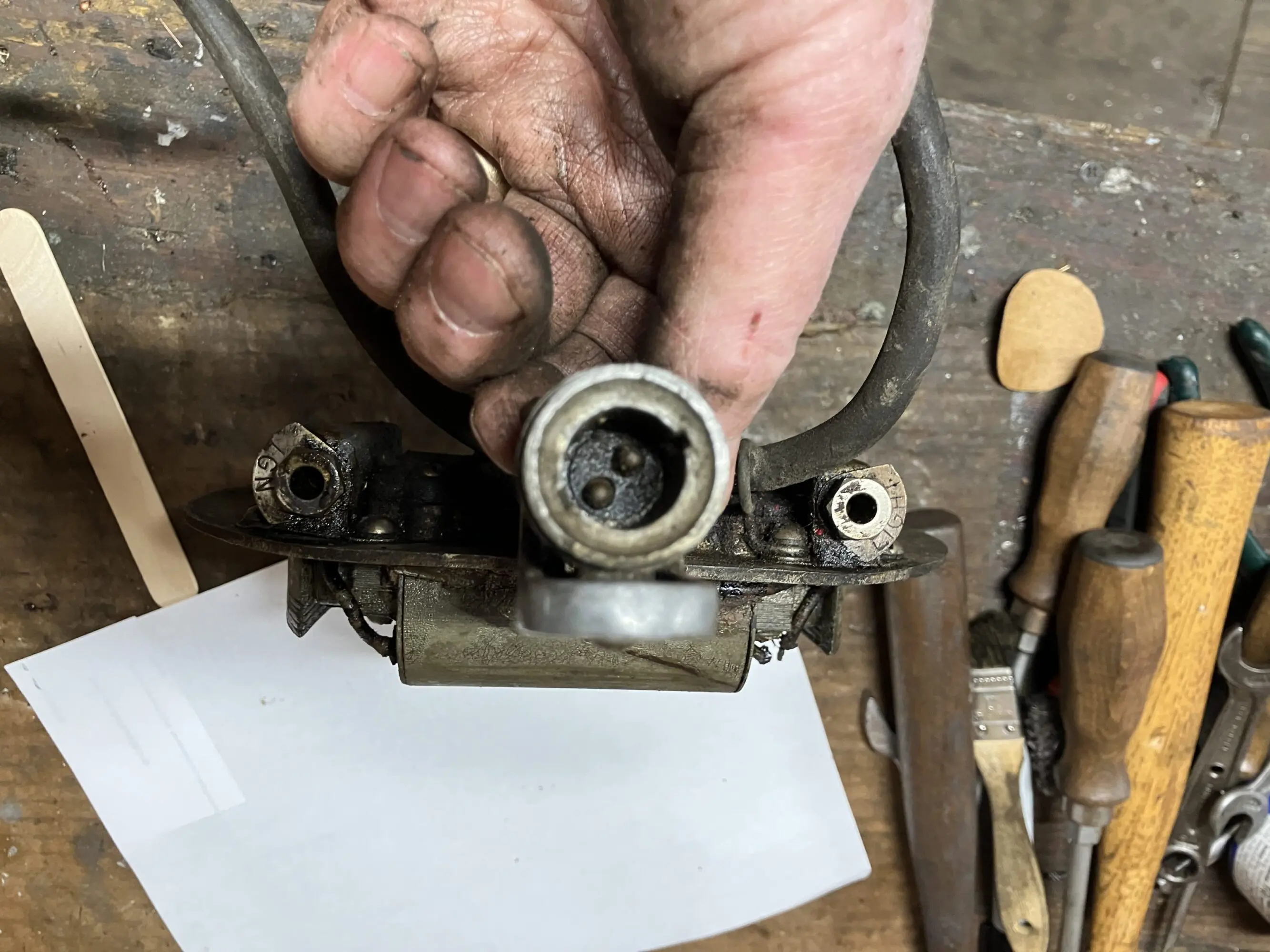

Here you can see the sockets for the remote ignition wiring and lights and the under mag light bulb socket!

David Bartlett
Pine Tree Boating Club Chapter

"I don't fully understand everything I know!"
March 30, 2026 at 12:11 pm #313000
David Bartlett
Participant
US Member
Other pic that didn’t load

David Bartlett
Pine Tree Boating Club Chapter

"I don't fully understand everything I know!"
March 30, 2026 at 5:18 pm #313039
Buccaneer
Participant
US Member
A lighting circuit on that early of an outboard???? Wow!
Are you sure it’s not for charging the early cell phones on the go? lol.
The only motor I had / have with a lighting circuit is a Wizard, but
it must be almost 30 years newer.

Are both condenser thingies attached to the ignition coil?

I hope it’s all in good enough shape to bring back to life.
When you figure out what kind of light plugged into that lighting
circuit, please let us know!

Prepare to be boarded!
March 30, 2026 at 5:29 pm #313042
Buccaneer
Participant
US Member
Just noticed the “Jacks”? on each side of the big lighting socket.
Is that to hook up to a battery for easier starting, or what???

Prepare to be boarded!
